Home / Shop by Brand / Goodman / ASPT61D14

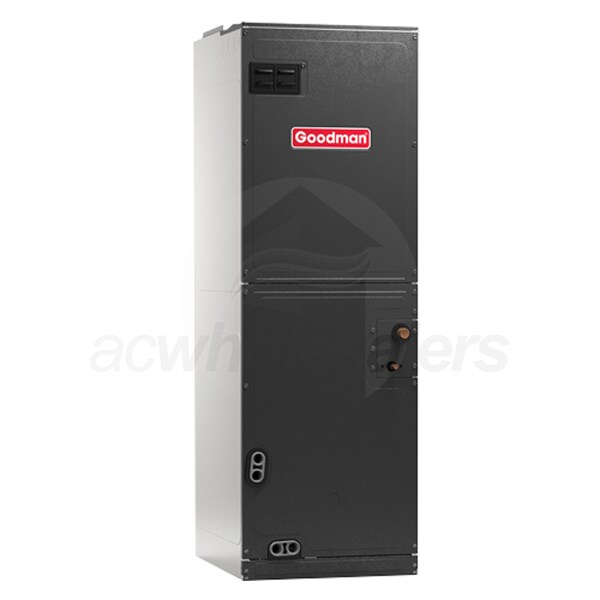

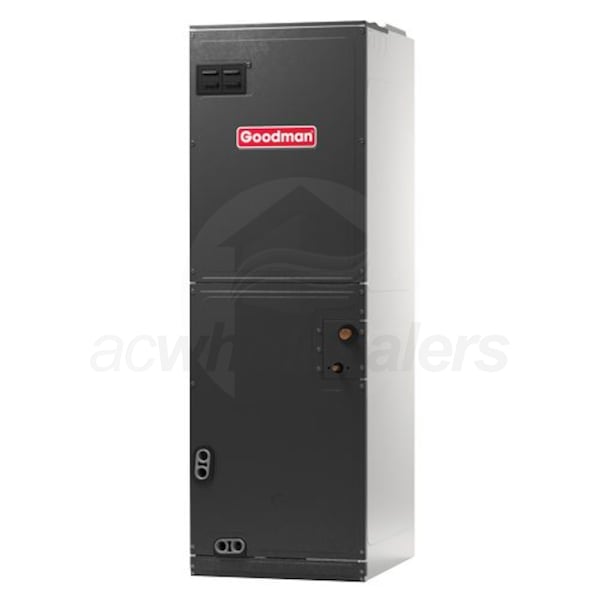

Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet

Name: Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet
Brand: Goodman
SKU: 58569
Availability: InStock

Model: ASPT61D14 Item Number: 58569

Questions & Answers (1)

Enlarge Image

View All

Exclusive Savings for a Limited Time

Call for Better Pricing

Hurry, Limited time offer ends soon!

Originally $1,195.00

Add to Cart for Lower Price

Ships in 4-7 Business Days

Goodman 5 Ton Air Conditioner Air Handler with Smart Frame Cabinet Model: ASPT61D14 Item Number: 58569

Accessories

Features

Specifications

Reviews

Product Q&A

Manuals

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.

Free Lift Gate

*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.

Low Price Guarantee

Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.

Specification Highlights

Condition

New

This product is new and has never been used. It's in its original packaging, which has not been opened.

Weight

112 Pounds

Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.

Type

Air Handler

Refrigerant Type

R-410A

Recommended Accessories

Required Accessories Add All Required

Installation Accessories

Features

Overview for Goodman ASPT61D14

Overview for Goodman ASPT61D14 Air Conditioner Air Handler
The Goodman ASPT61D14 Air Conditioner Air Handler is factory-sealed to achieve a 2% or less leakage rate and the cabinet is fully painted in an Architectural Gray finish. The Goodman ASPT61D14 Air Conditioner Air Handler feature a direct-drive, multi-speed ECM blower motor. Also the Goodman ASPT61D14 Air Conditioner Air Handler reduces the likelihood of hot and cold spots in the house and provides increased efficiency over standard efficiency motors. All functional parts are covered by a 10-Year Parts Limited Warranty.
The Goodman ASPT ASPT61D14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor
The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort.

Product Features

Factory-installed internal TXV valve

Transformer and blower time-delay

New SmartFrame cabinet construction

Fully painted cabinet with attractive Architectural Gray finish

21" cabinet depth for easy attic access

Coil-mounting track for quick repositioning

Glue-less cabinet insulation retention

Multiple electrical knockouts

Suitable for horizontal, vertical, upflow, or downflow installations

Improved condensate management

Screw-less sides and back prevents condensation

Three-hole condensate pan

Tool-less filter access accommodates standard-size filters

Factory-sealed cabinet achieves less than 2% leakage rate

AHRI Certified; ETL Listed

Our SKU number(s): Goodman ASPT61D14

The manufacturer model number(s): Goodman ASPT61D14

Specifications

General Information

Type

Air Handler

Refrigerant Type

R-410A

Blower Motor

Multi-Speed

Motor Type

EEM

Configuration

Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.

Multi-Position

Installation Location

Indoor

UPC

663051559677

Performance

Capacity

Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.

5 Tons

Cooling BTU

60000

Maximum Air Flow

2340 CFM

Minimum Air Flow

1055 CFM

Electrical Data

Voltage

208/230 Volts

Phase

Frequency

60 Hz

Minimum Circuit Ampacity

9 Amps

Recommended Breaker Size

15 Amps

Dimensions

Suction Connection Size

7/8 Inch

Liquid Connection Size

3/8 Inch

Product Height

58 Inches

Product Width

24 1/2 Inches

Product Depth

21 Inches

Product Weight

112 Pounds

Shipping Weight

167 Pounds

Liquid Valve Connection Size

3/8 Inch

Suction Valve Connection Size

7/8 Inch

Certifications

ETL Listed

Yes

AHRI Certified

Yes

Warranty Information

Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.

5 Years

Parts Warranty

A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More

10 Limited Years

Reviews

Do You Own This Product?

Give us your opinion on this product and help any future buyer's make an informed decision.

Product Q&A

(1)

Product Q&A

1 Questions Asked.

+−

Will this unit work as a downflow in a manufactured house?

By John C.

Question Asked 10/01/2018

Answered 10/02/2018

ACWholesalers Response

While the model ASPT61D14 can be used in any configuration, including downflow, the unit is not meant for manufactured or mobile homes.

Manuals

Goodman ASPT Service Manual

Goodman ASPT Warranty

Goodman ASPT Installation Manual

Goodman ASPT Spec Sheet

Goodman ASPT Brochure
