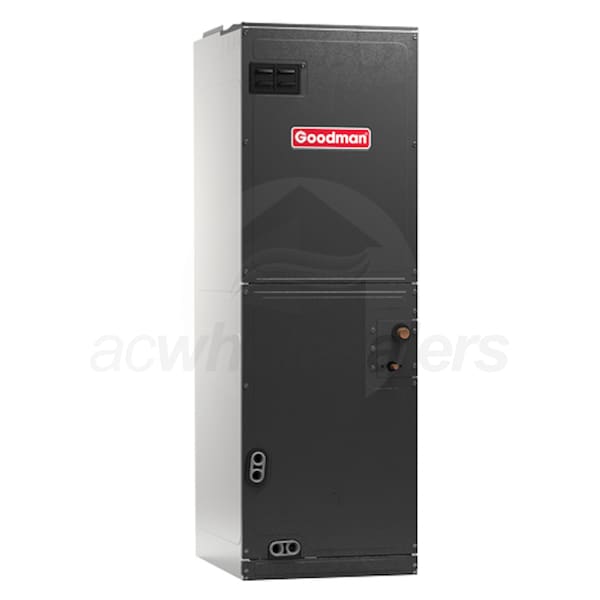

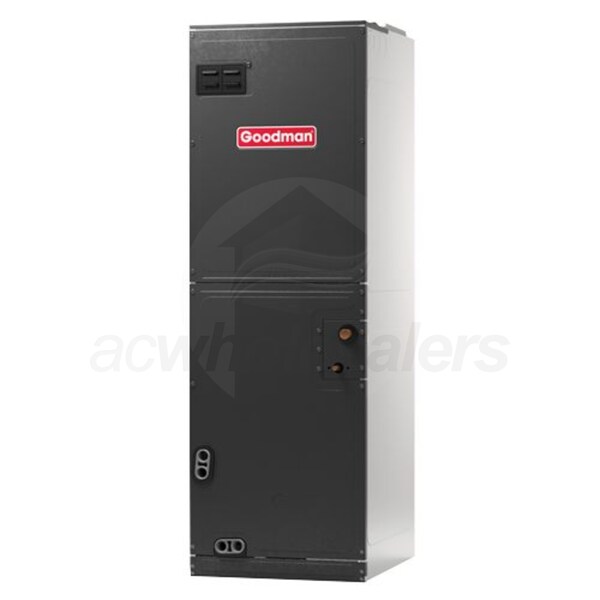

Goodman 3.5 Ton 4 Ton Air Conditioner Air Handler Smart Frame

Model: ASPT49C14 Item Number: 83233
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Goodman ASPT49C14
PREVIOUS
NEXT
Goodman ASPT49C14
Goodman ASPT49C14
Enlarge Image
Goodman ASPT49C14
Goodman ASPT49C14
Watch Video
Goodman ASPT49C14
Watch Video
Goodman ASPT49C14
Watch Video
Goodman ASPT49C14
Watch Video
Goodman ASPT49C14
Watch Video
Goodman ASPT49C14
View All
Originally $1,409.00
Add to Cart for Lower Price
synchrony card icon
$212 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
In-Stock
Ships Monday, April 22nd
Shipping to60601
Goodman 3.5 Ton 4 Ton Air Conditioner Air Handler Smart Frame
Goodman 3.5 Ton 4 Ton Air Conditioner Air Handler Smart Frame Model: ASPT49C14 Item Number: 83233
In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    101 Pounds Learn More
    101 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Handler
    UPC
    663051559646
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman ASPT49C14

Overview for Goodman ASPT49C14 Air Conditioner Air Handler
The Goodman ASPT49C14 Air Conditioner Air Handler is factory-sealed to achieve a 2% or less leakage rate and the cabinet is fully painted in an Architectural Gray finish. The Goodman ASPT49C14 Air Conditioner Air Handler feature a direct-drive, multi-speed ECM blower motor. Also the Goodman ASPT49C14 Air Conditioner Air Handler reduces the likelihood of hot and cold spots in the house and provides increased efficiency over standard efficiency motors. All functional parts are covered by a 10-Year Parts Limited Warranty.
The Goodman ASPT ASPT49C14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor
The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort.
  • Product Features
  • Factory-installed internal TXV valve
  • Transformer and blower time-delay
  • New SmartFrame™ cabinet construction
  • Fully painted cabinet with attractive Architectural Gray finish
  • 21" cabinet depth for easy attic access
  • Coil-mounting track for quick repositioning
  • Glue-less cabinet insulation retention
  • Multiple electrical knockouts
  • Suitable for horizontal, vertical, upflow, or downflow installations
  • Improved condensate management
  • Screw-less sides and back prevents condensation
  • Three-hole condensate pan
  • Tool-less filter access accommodates standard-size filters
  • Factory-sealed cabinet achieves less than 2% leakage rate
  • AHRI Certified; ETL Listed
  • Our SKU number(s): Goodman ASPT49C14
  • The manufacturer model number(s): Goodman ASPT49C14
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Air Handler
    UPC
    663051559646
    General Information
    Type
    Air Handler
    Product Line
    ASPT
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    EEM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    4.0 Tons
    Cooling BTU
    48000
    Maximum Air Flow
    2215 CFM
    Minimum Air Flow
    1485 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    9 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    21 Inches
    Product Height
    58 Inches
    Product Width
    24 1/2 Inches
    Product Depth
    21 Inches
    Product Weight
    101 Pounds
    Shipping Weight
    125 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
