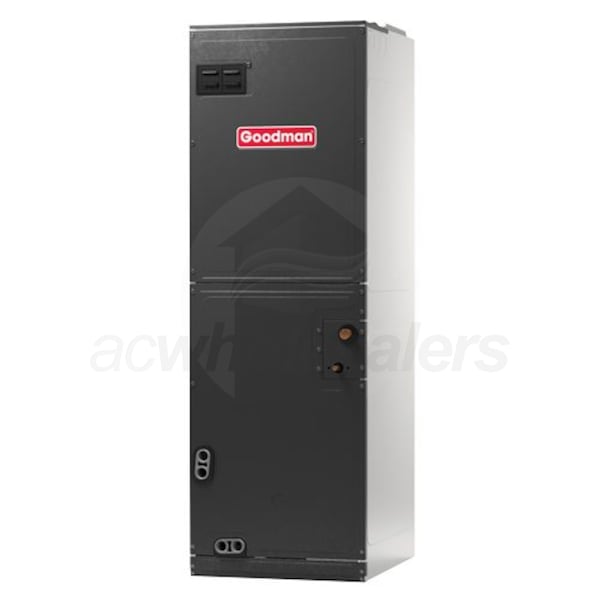

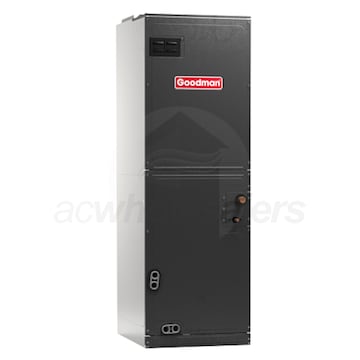

Goodman 3.5 Ton Air Conditioner Air Handler with Smart Frame Cabinet

Model: ASPT47D14 Item Number: 61924
Goodman ASPT47D14
PREVIOUS
NEXT
Goodman ASPT47D14
Goodman ASPT47D14
Enlarge Image
Goodman ASPT47D14
Goodman ASPT47D14
Watch Video
Goodman ASPT47D14
Watch Video
Goodman ASPT47D14
Watch Video
Goodman ASPT47D14
Watch Video
Goodman ASPT47D14
Watch Video
Goodman ASPT47D14
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    109 Pounds Learn More
    109 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Handler
    UPC
    663051559639
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman ASPT47D14

Overview for Goodman ASPT47D14 Air Conditioner Air Handler
The Goodman ASPT47D14 Air Conditioner Air Handler is factory-sealed to achieve a 2% or less leakage rate and the cabinet is fully painted in an Architectural Gray finish. The Goodman ASPT47D14 Air Conditioner Air Handler feature a direct-drive, multi-speed ECM blower motor. Also the Goodman ASPT47D14 Air Conditioner Air Handler reduces the likelihood of hot and cold spots in the house and provides increased efficiency over standard efficiency motors. All functional parts are covered by a 10-Year Parts Limited Warranty.
The Goodman ASPT ASPT47D14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor
The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Energy-Efficient Circulation
  • PSC blower motors are energy hogs. The ECM motor in the ASPT47D14 provides more efficient, more intelligent airflow for your home.
  • Dehumidification
  • Goodman's air handlers make it easy to stay cool. The ASPT is designed to remove moisture from the air, letting you feel cool at higher temperatures.
  • SmartFrame™
  • This air handler features Goodman's SmartFrame™ sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Secure Cabinet
  • This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
  • Condensate Management
  • The ASPT's design includes molded diverters, foil-faced insulation, and screw-less construction that help prevent the formation of condensation and keep your system running smoothly.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Internal Thermostatic Expansion Valve
  • The ASPT Series Air Handler has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Air Handler
    UPC
    663051559639
    General Information
    Type
    Air Handler
    Product Line
    ASPT
    Product Category
    Air Handler
    Refrigerant Type
    R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    EEM
    Mount Type
    Multi-Position
    Installation Location
    Indoor
    Electric Heat
    Available
    TXV Installed
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    3.5 Tons
    Cooling BTU
    42000
    Maximum Air Flow
    1720 CFM
    Minimum Air Flow
    1055 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    6 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    7/8 Inch
    Liquid Connection Size
    3/8 Inch
    Cabinet Width
    24 1/2 Inches
    Product Height
    53 7/16 Inches
    Product Width
    24 Inches
    Product Depth
    21 Inches
    Product Weight
    109 Pounds
    Shipping Weight
    144 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
