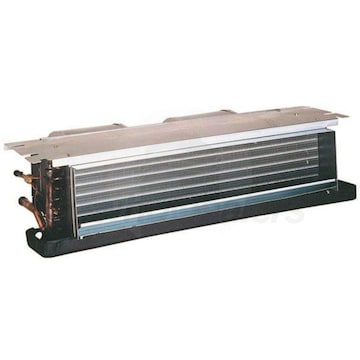

Goodman 2.5 Ton Air Conditioner Ceiling Mount Air Handler

Model: ACNF300016 Item Number: 26328
Ask a Question
Goodman ACNF300016
PREVIOUS
NEXT
Goodman ACNF300016
Enlarge Image
Our Price: $535.00

In-Stock
Ships in 1-3 Business Days
Goodman 2.5 Ton Air Conditioner Ceiling Mount Air Handler
Goodman 2.5 Ton Air Conditioner Ceiling Mount Air Handler Model: ACNF300016 Item Number: 26328
$535.00
In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    46 Pounds Learn More
    Type
    Air Handler
    Product Line
    ACNF
View More
Size (Tons)
Learn More
Select Attribute
Electric Heat
Select Attribute
Features
View More

Features

Overview for Goodman ACNF300016

Goodman air handlers are an integral part of finishing a total home environment control system. The ACNF plays a key role in reducing indoor humidity, creating a much more comfortable environment. In addition, the ACNF300016 works with the multi-speed PSC motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
  • Product Features
  • Check flowrater for heat pump and cooling-only
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • Available with and without heat
  • AHRI Certified
  • ETL Certified
  • Primary/secondary drain connection in a hightemperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • Our SKU number(s): Goodman ACNF300016
  • The manufacturer model number(s): Goodman ACNF300016
  • Specifications
    View More

    Specifications

    General Information
    Type
    Air Handler
    Product Line
    ACNF
    Refrigerant Type
    R-22/R-410A
    Blower Motor
    Multi-Speed
    Motor Type
    PSC
    Configuration Learn More
    Ceiling Mounted
    Electric Heat
    No
    UPC
    663051545267
    Performance
    Capacity Learn More
    2.5 Tons
    Cooling BTU
    30000
    Maximum Air Flow
    1005 CFM
    Minimum Air Flow
    890 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    1.68 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Drain Outlet Diameter
    3/4 Inch
    Product Height
    10 Inches
    Product Width
    49 1/4 Inches
    Product Depth
    11 3/8 Inches
    Product Weight
    46 Pounds
    Shipping Weight
    79 Pounds
    Certifications
    Country of Origin
    United States
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    10 Years
    Parts Warranty Show ACW Parts Warranty Learn More
    10 Limited Years
