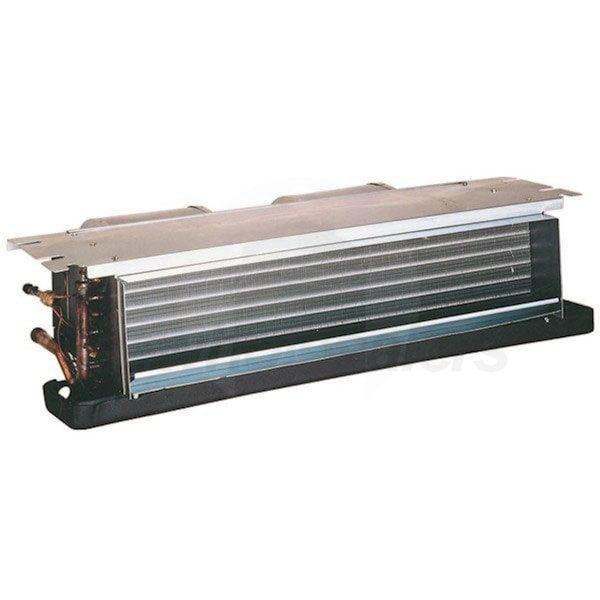

Goodman 2 Ton Air Conditioner Ceiling Mount Air Handler w/ 10 kW Heat

Model: ACNF241016 Item Number: 26327
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Goodman ACNF241016
PREVIOUS
NEXT
Goodman ACNF241016
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    54 Pounds Learn More
    54 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Air Handler
    UPC
    663051545205
View More
Electric Heat
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Goodman ACNF241016

Goodman air handlers are an integral part of finishing a total home environment control system. The ACNF plays a key role in reducing indoor humidity, creating a much more comfortable environment. In addition, the ACNF241016 works with the multi-speed PSC motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
  • Galvanized-Steel Construction
  • Galvanized-Steel is corrosion resistant, requiring less maintenance to remain at peak efficiency.
  • Easy Installation
  • The ACNF Air Handler can be installed vertically on the wall or on the stud, giving you the freedom to pick between whichever fits your needs best.
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Air Handler
    UPC
    663051545205
    General Information
    Type
    Air Handler
    Product Line
    ACNF
    Product Category
    Air Handler
    Refrigerant Type
    R-22/R-410A
    Blower Motor Type
    Multi-Speed
    Motor Type
    PSC
    Configuration Learn More
    Configuration
    Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
    Ceiling Mounted
    Electric Heat
    Yes
    Performance
    Capacity Learn More
    Capacity
    Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
    2.0 Tons
    Cooling BTU
    24000
    Electric Heat Capacity
    9.8 kW
    Maximum Air Flow
    880 CFM
    Minimum Air Flow
    840 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    47.8 Amps
    Recommended Breaker Size
    50 Amps
    Dimensions
    Suction Connection Size
    3/4 Inch
    Liquid Connection Size
    3/8 Inch
    Drain Outlet Diameter
    3/4 Inch
    Product Height
    10 Inches
    Product Width
    43 1/4 Inches
    Product Depth
    11 3/8 Inches
    Product Weight
    54 Pounds
    Shipping Weight
    69 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    10 Years
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    10 Limited Years
