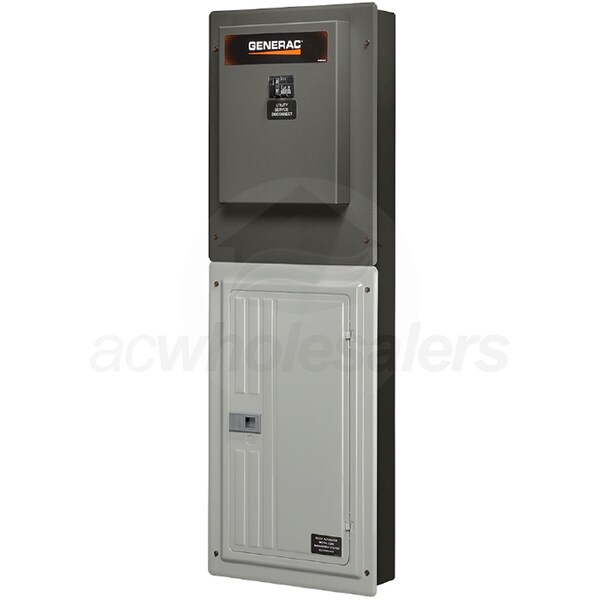

Generac 100-Amp GenReady™ Automatic Transfer Switch & Load Center w/ Power Management (Service Disconnect)

Model: RXG24SHA1 Item Number: 95041
Generac RXG24SHA1
PREVIOUS
NEXT
Generac RXG24SHA1
Enlarge Image
Our Price: $829.00
Factory-Direct
Ships in 16-20 Weeks
Generac 100-Amp GenReady™ Automatic Transfer Switch & Load Center w/ Power Management (Service Disconnect)
Generac 100-Amp GenReady™ Automatic Transfer Switch & Load Center w/ Power Management (Service Disconnect) Model: RXG24SHA1 Item Number: 95041
$829.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Generator Transfer Switches
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Generac RXG24SHA1

  • Generac 100-Amp GenReady™ Automatic Transfer Switch & Load Center
  • Ideal during new construction or major electrical retrofit
  • Compatible with Evolution or Nexus generator controllers
  • 100-Amp Main Circuit Breaker
  • Designed for single-phase operation
  • 24-Space Main Load Center (Breakers Not Included)
  • 40 Circuit capacity with the use of tandem breakers
  • Accepts GFCI, AFCI and tandem breakers
  • For use with Siemens, Murray, Square D and Eaton 1" breakers
  • 100-Amp Automatic Transfer Switch
  • Service-entrance rated for reduced installation costs
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Manage Up To (4) Individual HVAC Loads - No Hardware Req.
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (8) Generac Load Managers (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 1 Indoor Rated Enclosure
  • Flush-mount design with electrostatically applied & baked powder coat paint
  • Installation Flexibility
  • Multiple GenReady™ panels can be supported with a single generator
  • Allows for the generator to be installed at a later time
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • UL67 & UL1008
  • 5-Year Limited Warranty
  • Specifications
    View More

    Specifications

    General Information
    Product Category
    Generator Transfer Switches
    Overview
    Product Category
    Generator Transfer Switches
    Weight
    47 Pounds
    Made in USA
    Yes
    Consumer Warranty
    5 Years
    Product Depth
    4.84 Inches
    Product Width
    15.5 Inches
    Product Height
    45.14 Inches
    Product Specs
    Voltage
    120/240 Single-Phase
    Frequency
    60 Hertz
    Rated Watts
    24000 Watts
    Rated Amps
    100 Amps
    Transfer Switch Amperage
    100-Amps
    Max Circuits
    40
    Enclosure
    NEMA 1R
    Number of Circuit Breakers
    24
    Transfer Switch Style
    Service Disconnect
    ATS Load Prioritizing
    Built-In
    ATS Load Shedding
    Built-In
    ATS Poles
    2 Poles
    ATS Service Disconnect
    Yes
    Max Utility Input
    100 Amps
    Max Generator Input
    100 Amps
    Maximum Wattage
    24000 Watts
    UL Listed
    Yes
