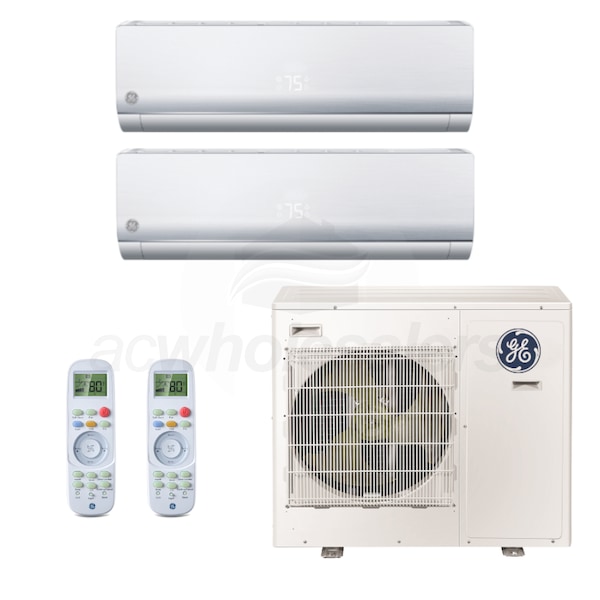

GE Wall Mounted 2-Zone System - 36,000 BTU Outdoor - 12k + 18k Indoor - 20.0 SEER

Model: GE2L36W12180000 Item Number: 107989
GE Mini Splits GE2L36W12180000
PREVIOUS
NEXT
GE Mini Splits GE2L36W12180000
GE Mini Splits GE2L36W12180000
GE Mini Splits GE2L36W12180000
Enlarge Image
GE Mini Splits GE2L36W12180000
GE Mini Splits GE2L36W12180000
GE Mini Splits GE2L36W12180000
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    261.3 Pounds Learn More
    261.3 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Product Line
    Endure Series
Bundle Includes 3 items
  • product image
    (1) GE - 36k BTU - Endure Series Outdoor Condenser - For 2-4 Zones (ASH436NCDWA)
  • product image
    (1) GE - 18k BTU - MultiLink Series Wall Mounted Unit - For Multi-Zone (ASYW18CRDDA)
  • product image
    (1) GE - 12k BTU - MultiLink Series Wall Mounted Unit - For Multi-Zone (ASYW12CRDDA)
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for GE Mini Splits GE2L36W12180000

A common challenge for mini split systems installed in frigid environments is the ability to effectively produce heat in subzero temperatures. Enter the Endure Multi Series from GE. Including state-of-the-art mini split technology, the Endure Multi Series will produce heat down to an impressive -15° F. The innovative wall mounted design features long distance air supply to ensure the whole room feels comfortable, while its turbo mode allows for faster cooling and heating. A remote controller is included with each indoor unit for your convenience. Persevere through the frigid winter and hot summer months with the Endure Multi Series from GE.
  • Inverter Technology
  • The Endure Series features leading A-PAM DC Inverter Technology to provide efficient and quiet operation. The inverter is used to continuously regulate refrigerant flow and ensure there's no wasted energy.
  • Low Ambient Heating
  • With the ability to provide heat at ambient temperatures reaching -15° F, the Endure Series won't leave you hanging when it gets cold outside.
  • Quiet Operation
  • The MultiLink Series wall mounted units feature a quiet mode that operates at a sound level down to 26 dB (12k indoor unit).
  • Blue Fin Coating
  • The Endure Series outdoor unit features a special coating to whisk away condensate water, preventing rust and extending its lifespan.
  • Long Distance Air Supply
  • MultiLink Series wall mounted units feature an optimized fan motor and blower design that enables up to 60 feet of air flow.
  • Warm Start
  • GE's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
  • Recommended line set sizes for indoor unit connectivity:
  • ASYW12CRDDA: 1/4" x 3/8" Line Set
  • ASYW18CRDDA: 1/4" x 1/2" Line Set
  • Product Note
    Each indoor unit will include any port adapters necessary for multi-zone installation.This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.GE products include a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://www.geappliances.com/ductless/ within 60 days of installation. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 3 items
    • product kit image
      GE - 36k BTU - Endure Series Outdoor Condenser - For 2-4 Zones
      Model: ASH436NCDWA
      Item Number: 107800
      Quantity: 1
    • product kit image
      GE - 18k BTU - MultiLink Series Wall Mounted Unit - For Multi-Zone
      Model: ASYW18CRDDA
      Item Number: 125285
      Quantity: 1
    • product kit image
      GE - 12k BTU - MultiLink Series Wall Mounted Unit - For Multi-Zone
      Model: ASYW12CRDDA
      Item Number: 125284
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Wall Mounted
    Product Line
    Endure Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    2
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12 + 18
    Outdoor Unit Size
    36000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    20.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    12.5
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    10.5
    Cooling Power Input
    2740 Watts
    Heating Power Input
    2710 Watts
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -15 F
    Minimum Outdoor Temperature for Cooling
    23 F
    Dimensions
    Product Weight
    261.3 Pounds
    Shipping Weight
    291.3 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    204878533
    General Information
    Type
    Outdoor Condenser
    Product Line
    Endure Series
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    4
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    36000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    59 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -15 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    40 Amps
    Dimensions
    Maximum Line Length
    230 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    1/2 Inch
    Product Height
    33 1/8 Inches
    Product Width
    37 3/8 Inches
    Product Depth
    13 3/8 Inches
    Product Weight
    198.4 Pounds
    Shipping Weight
    215 Pounds
    Certifications
    UL Listed
    Yes
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Wall Mounted
    Product Line
    MultiLink and Endure Series
    Product Category
    Mini Split Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18
    Installation Location
    Indoor
    Line Set Size
    1/4" x 1/2"
    Performance
    Cooling BTU
    18000
    Heating Capacity
    19000 BTU
    Maximum Air Flow
    596 CFM
    Minimum Air Flow
    340 CFM
    Minimum Sound Level
    36 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    48 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    13 Inches
    Product Width
    39 3/8 Inches
    Product Depth
    8 3/4 Inches
    Product Weight
    28 Pounds
    Shipping Weight
    35 Pounds
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    General Information
    Type
    Wall Mounted
    Product Line
    MultiLink and Endure Series
    Product Category
    Mini Split Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12
    Installation Location
    Indoor
    Line Set Size
    1/4" x 3/8"
    Performance
    Cooling BTU
    12000
    Heating Capacity
    13000 BTU
    Maximum Air Flow
    426 CFM
    Minimum Air Flow
    200 CFM
    Minimum Sound Level
    26 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    42 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    12 Inches
    Product Width
    33 3/4 Inches
    Product Depth
    7 3/4 Inches
    Product Weight
    21.2 Pounds
    Shipping Weight
    26.9 Pounds
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
