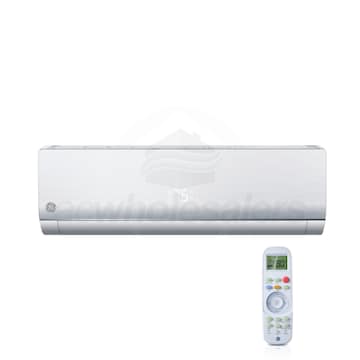

GE - 7k BTU - Endure Series Wall Mounted Unit - For Multi-Zone

Model: ASYW07URDWA Item Number: 107804
GE Mini Splits ASYW07URDWA
PREVIOUS
NEXT
GE Mini Splits ASYW07URDWA
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    25.4 Pounds Learn More
    25.4 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Wall Mounted
    Product Line
    Endure Series
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for GE Mini Splits ASYW07URDWA

The Endure Multi Series from GE was designed with innovative technology to achieve complete home comfort, even in frigid climates. The wall mounted unit pairs with the Endure outdoor condenser to provide cooling and heating while remaining quiet and efficient. Convenient air flow and scheduling options make this wall mounted unit a perfect addition to your home.
Product Note
Includes YR-HG Remote Controller. This product requires a compatible GE mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
GE products include a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://www.geappliances.com/ductless/ within 60 days of installation.
Specifications
View More

Specifications

General Information
Type
Wall Mounted
Product Line
Endure Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Installation Location
Indoor
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Maximum Air Flow
420 CFM
Minimum Air Flow
180 CFM
Minimum Sound Level
23 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
42 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
12 1/4 Inches
Product Width
35 3/8 Inches
Product Depth
8 1/4 Inches
Product Weight
25.4 Pounds
Shipping Weight
30.9 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
