GE - 36k BTU - MultiLink Series Outdoor Condenser - For 2-4 Zones

Model: ASH436JCDDA Item Number: 125281

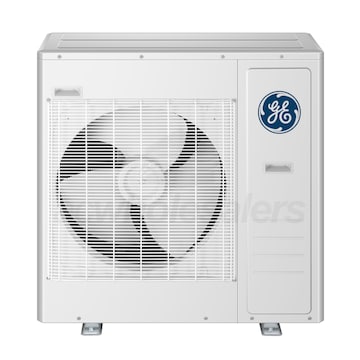

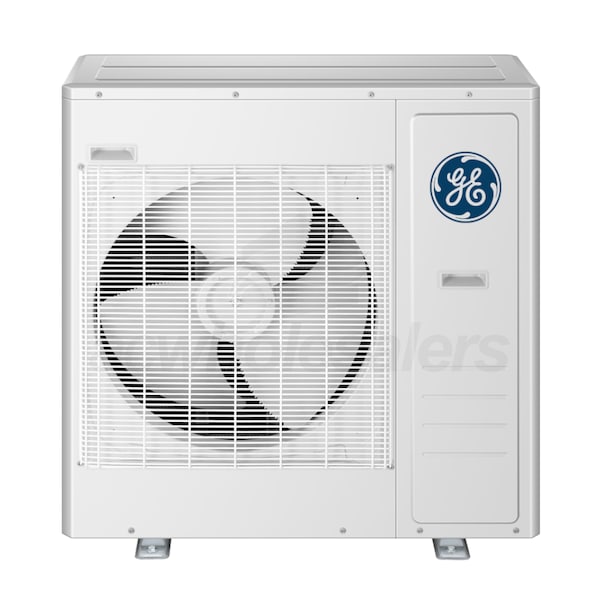

GE Mini Splits ASH436JCDDA
GE Mini Splits ASH436JCDDA
Enlarge Image
Our Price: $3,048.00
synchrony card icon
$54 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 4-7 Business Days
GE - 36k BTU - MultiLink Series Outdoor Condenser - For 2-4 Zones
GE - 36k BTU - MultiLink Series Outdoor Condenser - For 2-4 Zones Model: ASH436JCDDA Item Number: 125281
Product Q&A
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Specification Highlights
    New Learn More
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    157.8 Pounds Learn More
    157.8 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Outdoor Condenser
    Product Line
    MultiLink Series
Capacity (BTU/h) & Max Indoor Units
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
View More


Overview for GE Mini Splits ASH436JCDDA

Providing flexible comfort in new homes, residential building as well as renovations, GE multi-zone systems deliver efficient cooling and heating where you need it most. The MultiLink Series provide flexible control throughout rooms. The ASH436JCDDA condenser features a blue fin coating to prevent rust from condensate water and extend its lifespan. Pair with two to four compatible MultiLink Series indoor units for efficient, on-demand heating and cooling.
  • Inverter Technology
  • The MultiLink Series features leading DC Inverter Technology to provide efficient and quiet operation. The inverter is used to continuously regulate refrigerant flow and ensure there's no wasted energy.
  • Low Ambient Heating
  • With the ability to provide heat at ambient temperatures reaching -4° F, the MultiLink Series won't leave you hanging when it gets cold outside.
  • Blue Fin Coating
  • The MultiLink Series outdoor unit features a special coating to whisk away condensate water, preventing rust and extending its lifespan.
  • Product Note
    This product requires at least two compatible GE mini split indoor units and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.

    GE products include a 10-year parts and compressor warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at within 60 days of installation.
    View More


    General Information
    Outdoor Condenser
    Product Line
    MultiLink Series
    Product Category
    Mini Split Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Refrigerant Type
    Installation Location
    Outdoor Unit Size
    36000 BTU
    Cooling BTU
    Cooling Power Input
    3800 Watts
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    208/230 Volts
    60 Hz
    Recommended Breaker Size
    30 Amps
    Maximum Line Length
    230 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    1/2 Inch
    Product Height
    33 1/8 Inches
    Product Width
    37 3/8 Inches
    Product Depth
    13 1/2 Inches
    Product Weight
    157.8 Pounds
    Shipping Weight
    191.6 Pounds
    ETL Listed
    AHRI Certified
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
