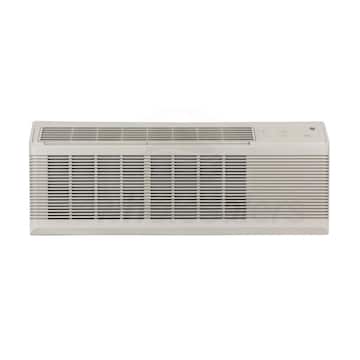

GE Zoneline - 12k BTU - Packaged Terminal Air Conditioner (PTAC) - Electric Heat - 208/230V

Model: AZ45E12DAB Item Number: 113862
GE Appliances AZ45E12DAB
PREVIOUS
NEXT
GE Appliances AZ45E12DAB
GE Appliances AZ45E12DAB
Enlarge Image
GE Appliances AZ45E12DAB
GE Appliances AZ45E12DAB
View All
Our Price: $1,094.39
synchrony card icon
$183 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 2-3 Weeks
GE Zoneline - 12k BTU - Packaged Terminal Air Conditioner (PTAC) - Electric Heat - 208/230V
GE Zoneline - 12k BTU - Packaged Terminal Air Conditioner (PTAC) - Electric Heat - 208/230V Model: AZ45E12DAB Item Number: 113862
$1,094.39
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    106 Pounds Learn More
    106 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    PTAC Unit
    UPC
    084691815563
BTU
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for GE Appliances AZ45E12DAB

GE appliances makes every day better by answering to real-life needs. They do this by simplifying routines with next generation features. GE Zoneline packaged terminal air conditioners (PTAC) offer unrivaled reliability and consistent performance. Thanks to the integrated structural components, GE Zoneline PTACs are easy to maintain and service. When it comes to guest comfort, GE Zoneline PTAC is the best choice.
  • Heat and Freeze Sentinels
  • The GE Zoneline PTAC comes with specially designed sentinels that prevent the unit from overheating or freezing. This feature reduces operating cost as well as improving room comfort.
  • Smart Fan
  • The indoor fan runs in continuous mode while cooling and cycle mode during heating without having to change any settings or switches. This improves guest comfort and saves energy.
  • Two DC Fan Motors
  • Independent fan motors provide a quiet and more exact airflow for each heating and cooling function.
  • Large Cross-Flow Blower
  • While providing efficient heating and cooling performance, the airflow of a GE Zoneline PTAC is optimized for a balanced sound that is hardly noticeable.
  • Electronic Temperature Limiting
  • Temperature limits are preset to avoid excessive temperature swings, so seasonal adjustments are not necessary.
  • Product Note
    PTAC units require a power cord, wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    PTAC Unit
    UPC
    084691815563
    General Information
    Type
    PTAC
    Product Line
    AZ45E
    Product Category
    PTAC Unit
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling + Electric Heat
    Refrigerant Type
    R-410a
    Electric Heat
    Yes
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    11600 BTU
    Moisture Removal
    3.5 Pints/Hour
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    11.8
    Cooling Power Input
    990 Watts
    Maximum Air Flow
    449 CFM
    Minimum Air Flow
    270 CFM
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Height
    16 Inches
    Product Width
    42 Inches
    Product Depth
    20 13/16 Inches
    Product Weight
    106 Pounds
    Shipping Weight
    116 Pounds
    Certifications
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
