Fujitsu HFI Flex Zone - Secondary Branch Box - 3 Ports

Model: UTP-PU03B Item Number: 68169
Fujitsu UTP-PU03B
PREVIOUS
NEXT
Fujitsu UTP-PU03B
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    20 Pounds Learn More
    20 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Line
    Halcyon HFI
    Ports Quantity
    3
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fujitsu UTP-PU03B

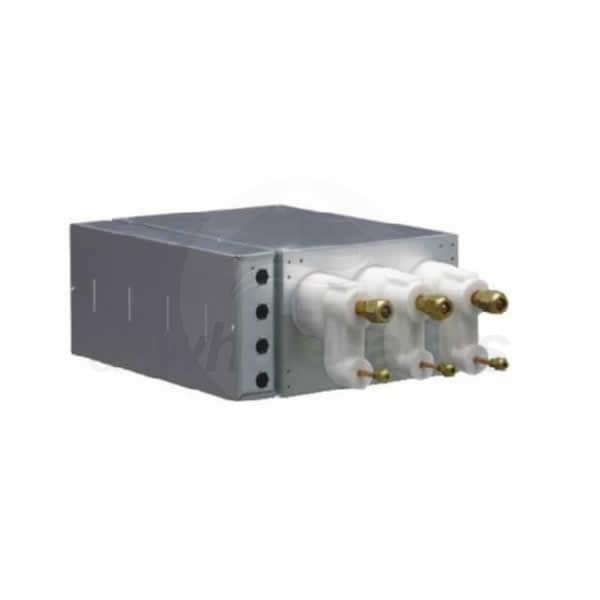

The Fujitsu UTP-PU03B Secondary Branch Box is used to connect a Fujitsu AOU48RLXFZ1 Mini Split Outdoor Condenser to multiple indoor units. This branch box supports up to three indoor units, and it comes with the necessary adapters to use it with any multi-zone Fujitsu Mini Split Indoor Units.
  • Electronic Expansion Valve
  • The UTP-PU03B Secondary Branch Box has an internal expansion valve that controls refrigerant flow and reduces noise, ensuring that your home is your home is comfortable and peaceful.
  • Connection Adapter Included
  • 3 x (1/2MF x 3/8FF)
  • 3 x (1/2MF x 5/8FF)
  • Product Compatible With
  • Fujitsu AOU48RLXFZ1 Mini Split Outdoor Condenser
  • Product Note
    The Fujitsu UTP-PU03B is a secondary branch box. A UTP-PU03A primary branch box must be added to your system before UTP-PU03B Secondary Branch Boxes may be used for successive Fujitsu Mini Split Indoor Units. A UTP-SX248A Separation Tube Assembly Kit is required when using multiple branch boxes. Branch boxes are not weather tight enclosures and cannot be mounted outdoors or in damp environments exceeding 80% relative humidity, unless using the Branch Box Outdoor Enclosure, Part #UTP-PX-A. Important Warranty Information: Fujitsu General does not extend its manufacturers warranty to products purchased over the Internet. Any replacement parts that would normally be covered under the manufacturers warranty will be provided by eComfort.com, but only when equipment has been installed by a qualified professional HVAC contractor. Installation by others voids all warranties.
    Specifications
    View More

    Specifications

    General Information
    Product Line
    Halcyon HFI
    Ports Quantity
    3
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    15 Amps
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    1/2 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    1/2 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    1/2 Inch
    Product Height
    7 5/8 Inches
    Product Width
    33 Inches
    Product Depth
    14 5/8 Inches
    Product Weight
    20 Pounds
    Shipping Height
    11 Inches
    Shipping Width
    37 Inches
    Shipping Depth
    17 Inches
    Shipping Weight
    30 Pounds
    Certifications
    Country of Origin
    Thailand
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
