Fujitsu 37,000 BTU 19.7 SEER Five Zone Heat Pump System 7+7+7+7+9

Model: F5H45W0707070709 Item Number: 85388
Ask a Question
Fujitsu F5H45W0707070709
PREVIOUS
NEXT
Fujitsu F5H45W0707070709
Fujitsu F5H45W0707070709
Fujitsu F5H45W0707070709
Fujitsu F5H45W0707070709
Fujitsu F5H45W0707070709
Fujitsu F5H45W0707070709
Enlarge Image
Fujitsu F5H45W0707070709
Fujitsu F5H45W0707070709
Fujitsu F5H45W0707070709
Fujitsu F5H45W0707070709
Fujitsu F5H45W0707070709
Fujitsu F5H45W0707070709
View All
Our Price: $5,716.00
synchrony card icon
$72 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Ships in 7-14 Business Days
Fujitsu 37,000 BTU 19.7 SEER Five Zone Heat Pump System 7+7+7+7+9
Fujitsu 37,000 BTU 19.7 SEER Five Zone Heat Pump System 7+7+7+7+9 Model: F5H45W0707070709 Item Number: 85388
$5,716.00
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    300 Pounds Learn More
    Type
    Wall Mounted
    Product Line
    Halcyon HFI
View More

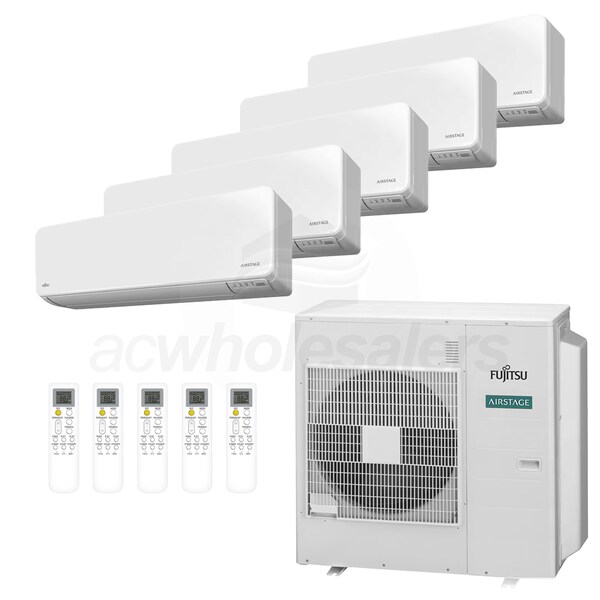

Bundle Includes 6 items
  • product image
    (1) Fujitsu 45,000 BTU Ductless Multizone Heat Pump Condenser (AOU45RLXFZ)
  • product image
    (1) Fujitsu 9,000 BTU Ductless Wall Mounted Heat Pump Air Handler (ASU9RLF1)
  • product image
    (4) Fujitsu 7,000 BTU Ductless Wall Mounted Heat Pump Air Handler (ASU7RLF1)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu F5H45W0707070709

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the F5H45W0707070709 wall mounted mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipement, the Halcyon HFI mini split system is a reliable and efficient choice. With a wide range of operating modes, this system can be customized to suit any of your comfort needs.
  • Product Features
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 6 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    AOU45RLXFZ Specifications
    ASU9RLF1 Specifications
    ASU7RLF1 Specifications
    General Information
    Type
    Wall Mounted
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Number of Zones Learn More
    5
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    7 + 7 + 7 + 7 + 9
    Outdoor Unit Size
    45000 BTU
    DOE Regional Compliance Learn More
    Nationwide
    Performance
    Cooling Capacity
    37000 BTU
    Heating Capacity
    39500 BTU
    SEER Learn More
    19.7
    EER Learn More
    10.5
    HSPF Learn More
    10.3
    Cooling Power Input
    3220 Watts
    Heating Power Input
    3140 Watts
    Minimum Operating Temperature
    5 F
    Maximum Operating Temperature
    115 F
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Dimensions
    Product Weight
    300 Pounds
    Shipping Weight
    300 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    8908617
    General Information
    Type
    Outdoor Condenser
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Maximum Number of Zones
    5
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    45000
    Maximum Sound Level Learn More
    55 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    264 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    1/2 Inch
    Line Set E Liquid Connection
    1/4 Inch
    Line Set E Gas Connection
    1/2 Inch
    Product Height
    39 5/16 Inches
    Product Width
    38 3/16 Inches
    Product Depth
    14 9/16 Inches
    Product Weight
    205 Pounds
    Shipping Height
    45 3/4 Inches
    Shipping Width
    45 1/4 Inches
    Shipping Depth
    18 13/16 Inches
    Shipping Weight
    215 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    9
    Installation Location
    Indoor
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    353 CFM
    Minimum Air Flow
    182 CFM
    Minimum Sound Level
    21 dB
    Maximum Sound Level Learn More
    37 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    10 1/2 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    8 Inches
    Product Weight
    19 Pounds
    Shipping Height
    10 5/8 Inches
    Shipping Width
    34 13/16 Inches
    Shipping Depth
    14 3/4 Inches
    Shipping Weight
    23 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    General Information
    Type
    Wall Mounted
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    7
    Installation Location
    Indoor
    Performance
    Cooling BTU
    7000
    Cooling Capacity
    7000 BTU
    Maximum Air Flow
    330 CFM
    Minimum Air Flow
    182 CFM
    Minimum Sound Level
    21 dB
    Maximum Sound Level Learn More
    36 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    10 9/16 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    8 Inches
    Product Weight
    23 Pounds
    Shipping Width
    34 13/16 Inches
    Shipping Height
    10 5/8 Inches
    Shipping Depth
    14 3/4 Inches
    Shipping Weight
    23 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
