New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
210 Pounds 210 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Mini Split Heat Pump System
View More
Bundle Includes 5 items

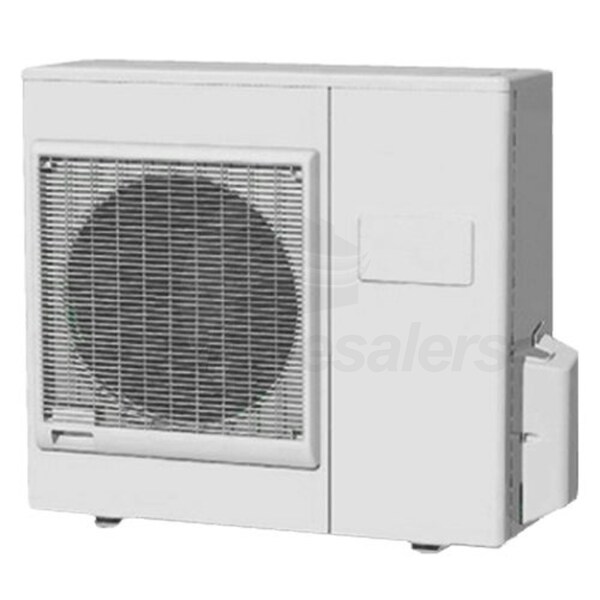

(1) Fujitsu - 36k BTU - RLXFZ1 Outdoor Condenser - For 2-4 Zones (AOU36RLXFZ1)

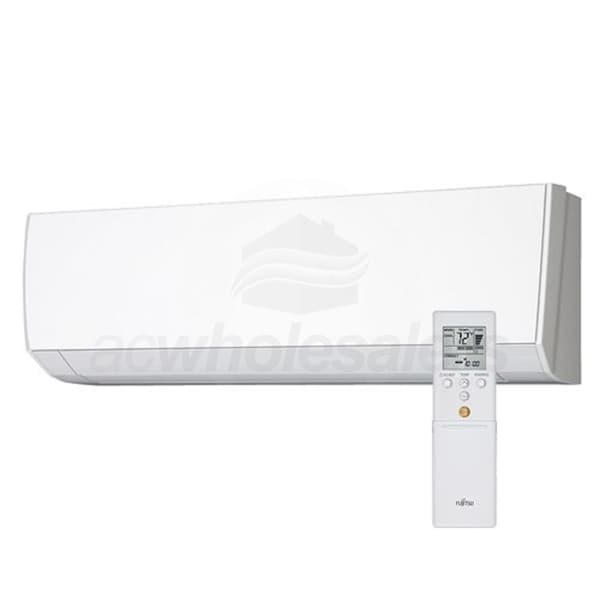

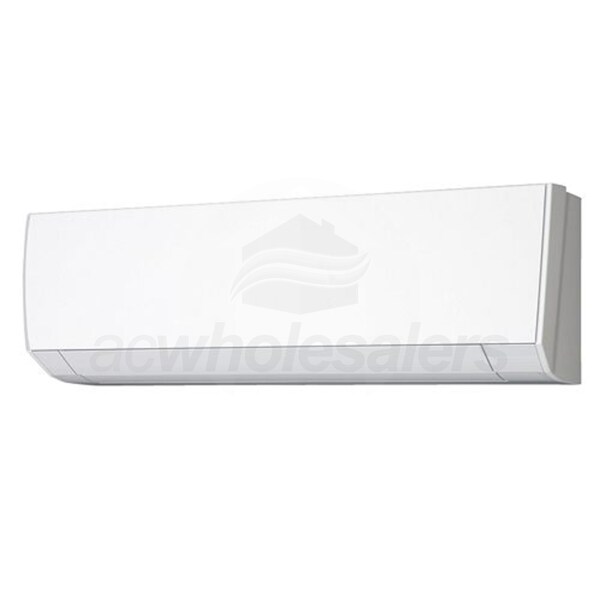

(3) Fujitsu - 9k BTU - Wall Mounted Unit - For Multi or Single-Zone (ASUH09LPAS)
(1) Fujitsu - 7k BTU - Wall Mounted Unit - For Multi or Single-Zone (ASUH07LPAS)
View Full Bundle
Outdoor Unit BTU/h
Indoor Unit Sizes
Indoor Unit SizesMini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Enhanced Heating Capacity
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features & Bundle Details
Features & Bundle Details
Overview for Fujitsu F4H36W07090909
Fujitsu's Multizone systems can have a multitude of combinations with wall mounted, compact cassette or slim duct type indoor units. Mix-and-match flexibility of evaporator type and capacity allows you to choose the indoor unit that best fits the application, whether it be hidden or showcased. These systems are ideal for nursing homes, doctor's offices, condominiums, apartments and residences - any place where individual cooling or heating is needed.
Inverter Technology
Inverter technology drives the compressor, allowing it to match output to demand. The result: a more stable and comfortable temperature within the space. This type of operation removes more moisture, reduces short-cycling, and improves efficiency.
Corrosion Resistant Heat Exchanger
Fujitsu applies a blue fin coating to the heat exchanger of their outdoor condensers. This improves their resistance to many common sources of corrosion and extends their longevity.
Advanced Filtration
A washable ion deodorizing filter uses fine ceramic particles to capture and remove odors. An apple catechin filter isolates and deactivates mold, bacteria, and dust. This combination creates a clean and healthy air flow from your indoor unit.
Timer Function
You can set a sleep timer to gradually decrease the output after you have gone to bed. It also supports a 24-hour timer, allowing you to set on and off time once per day. These timers allow you to curtail energy use without sacrificing comfort.
Dehumidify and Cool
Dry Mode demonstrates the Halcyon HFI's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
Airflow Control
Swing mode disperses conditioned air evenly across your zone, resulting in consistent and thorough heating and cooling. Swing mode can be used with this unit's auto fan mode and auto changeover for automated comfort in rooms of all shapes and sizes.
Power Diffuser
This unit includes an airflow louver known as a power diffuser that directs heated air to the floor of the room and cold air outwards to blanket the room. This diffuser uses temperature sensors to ensure that your airflow is ideal in any application.
Economy Mode
The Halcyon HFI features an Economy Mode restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
Recommended line set sizes for indoor unit connectivity:
ASUH07LPAS: 1/4" x 3/8" Line Set
ASUH09LPAS: 1/4" x 3/8" Line Set (Qty 3)
Product Note
This product requires the following accessories for installation:
Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Number of ZonesA zone is a room or area within a building that has its own temperature control.
4
Refrigerant Type
R-410A
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 9 + 9 + 9
Outdoor Unit Size
36000 BTU
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Performance
Cooling Capacity
33700 BTU
Heating Capacity
36300 BTU
SEER SEERSEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
18.0
EER EEREER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
10.0
HSPF HSPFHSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
9.4
Cooling Power Input
3840 Watts
Heating Power Input
3000 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
210 Pounds
Shipping Weight
210 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
8071537
General Information
Type
Outdoor Condenser
Product Line
Airstage HFI RLXFZ
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Maximum Number of Zones
4
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
36000
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
55 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
230 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
1/2 Inch
Product Height
32 11/16 Inches
Product Width
35 7/16 Inches
Product Depth
13 Inches
Product Weight
149 Pounds
Shipping Width
41 5/16 Inches
Shipping Height
38 3/16 Inches
Shipping Depth
17 1/2 Inches
Shipping Weight
165 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
Overview
Product Category
Mini Split System Components
General Information
Type
Wall Mounted
Product Line
Airstage LPAS
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A

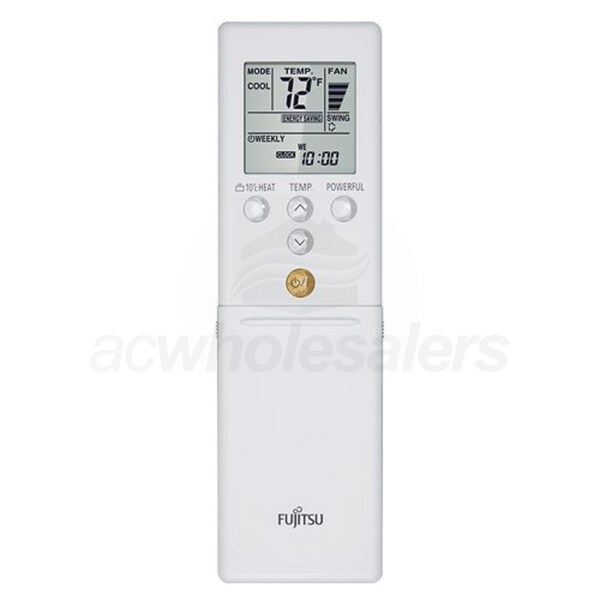

Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
412 CFM
Minimum Air Flow
159 CFM
Minimum Sound Level
19 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
40 dB
Electrical Data
Voltage
208/224 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
10 5/8 Inches
Product Width
32 13/16 Inches
Product Depth
8 3/4 Inches
Product Weight
26 Pounds
Shipping Height
10 7/8 Inches
Shipping Width
36 Inches
Shipping Depth
13 1/16 Inches
Shipping Weight
35 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
General Information
Type
Wall Mounted
Product Line
Airstage LPAS
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7
Installation Location
Indoor
Performance
Cooling BTU
7000
Cooling Capacity
7000 BTU
Maximum Air Flow
424 CFM
Minimum Air Flow
188 CFM
Minimum Sound Level
21 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
41 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
10 5/8 Inches
Product Width
32 13/16 Inches
Product Depth
8 3/4 Inches
Product Weight
21 Pounds
Shipping Width
10 7/8 Inches
Shipping Height
36 Inches
Shipping Depth
13 1/16 Inches
Shipping Weight
26 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
