Fujitsu 21,000 BTU 20 SEER Ductless Tri Zone Heat Pump System 7+7+7

Model: F3L24W07070700 Item Number: 65932
Ask a Question
Fujitsu F3L24W07070700
Fujitsu F3L24W07070700
Fujitsu F3L24W07070700
Fujitsu F3L24W07070700
Fujitsu F3L24W07070700
Fujitsu F3L24W07070700
View All
Fujitsu F3L24W07070700
PREVIOUS
NEXT
Fujitsu F3L24W07070700
Fujitsu F3L24W07070700
Fujitsu F3L24W07070700
Fujitsu F3L24W07070700
Fujitsu F3L24W07070700
Fujitsu F3L24W07070700
Enlarge Image

Price Match

PLUS ? Shop with Confidence knowing you have the Right System at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know - we will match the price of any online competitor PLUS beat that price by 5%.

Simply call our sales or customer service department at 866-631-6389 or 866-793-0323 and one of our representatives will be happy to price match the product(s) for you.
$3,704.95
Only 2 In-Stock
Ships Monday, Dec 17th
Shipping Crate Icon
Free Shipping ? *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate ? *This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Fujitsu 21,000 BTU 20 SEER Ductless Tri Zone Heat Pump System 7+7+7
Fujitsu 21,000 BTU 20 SEER Ductless Tri Zone Heat Pump System 7+7+7 Model: F3L24W07070700 Item Number: 65932
$3,704.95
Only 2 In-Stock
QTY
Accessories
Features
Specifications
Reviews
Product Q&A
Save For Later
Ask a Question
Condition: New ? This product is new and has never been used. It's in its original packaging, which has not been opened.
Weight: 207 Pounds ? Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Specification Highlights
    Type
    Wall Mounted
    Product Line
    Halcyon HFI XLTH
    Operating Mode
    Cooling + Heating
    Number of Zones
    3
View More

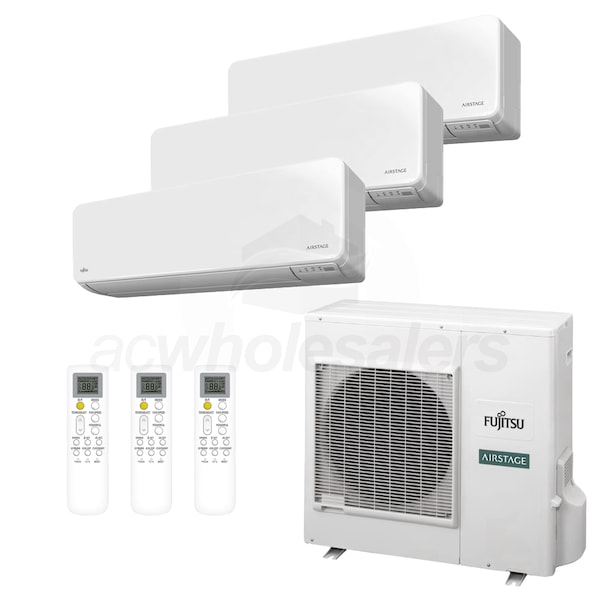

Bundle Includes 4 items

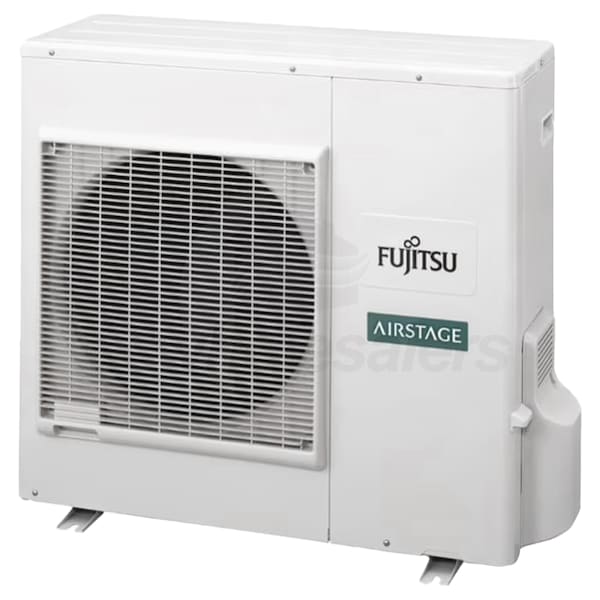

  • (1) Fujitsu - 24k BTU - XLTH Outdoor Condenser - For 2-3 Zones (AOU24RLXFZH)
  • (3) Fujitsu 7k BTU Wall Mounted Unit - For Multi-Zone (ASU7RLF1)
View Full Bundle
Outdoor Unit BTU/h
Select Attribute
Indoor Unit Sizes
? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Select Attribute
Enhanced Heating Capacity
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Optional Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu F3L24W07070700

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the F3H24H07070700 wall mounted mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the Halcyon HFI mini split system is a reliable and efficient choice. With a wide range of operating modes, this system can be customized to suit any of your comfort needs.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    AOU24RLXFZH Specifications
    ASU7RLF1 Specifications
    General Information
    Type
    Wall Mounted
    Product Line
    Halcyon HFI XLTH
    Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling + Heating
    Number of Zones ? A zone is a room or area within a building that has its own temperature control.
    3
    Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
    6 + 6 + 6
    DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Cooling Capacity
    21000 BTU
    Heating Capacity
    24300 BTU
    SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    20.0
    EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    13.3
    HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    10.3
    Cooling Power Input
    1620 Watts
    Heating Power Input
    1760 Watts
    Dimensions
    Product Weight
    207 Pounds
    Certifications
    AHRI Certified
    Yes
    AHRI Reference Number
    8033586
    General Information
    Type
    Outdoor Condenser
    Product Line
    Halcyon HFI XLTH
    Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling + Heating
    Maximum Number of Zones
    3
    Multi-Zone Compatible
    Yes
    Installation Location
    Outdoor
    Performance
    Nominal Capacity
    24000 BTU
    Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    52 dB
    Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -15 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    229 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    1/2 Inch
    Product Height
    32 11/16 Inches
    Product Width
    35 7/16 Inches
    Product Depth
    13 Inches
    Product Weight
    146 Pounds
    Shipping Height
    38 3/16 Inches
    Shipping Width
    41 5/16 Inches
    Shipping Depth
    17 1/2 Inches
    Shipping Weight
    161 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Wall Mounted Unit
    Product Line
    Halcyon HFI
    Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Cooling + Heating
    Multi-Zone Compatible
    Yes
    Remote Control
    Wireless
    Installation Location
    Indoor
    Performance
    Nominal Capacity
    7000 BTU
    Minimum Air Flow
    182 CFM
    Maximum Air Flow
    330 CFM
    Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    36 dB
    Minimum Sound Level
    21 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Liquid Connection Size
    1/4 Inch
    Gas Connection Size
    3/8 Inch
    Product Height
    10 9/16 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    8 Inches
    Product Weight
    19 Pounds
    Shipping Height
    10 5/8 Inches
    Shipping Width
    34 13/16 Inches
    Shipping Depth
    14 3/4 Inches
    Shipping Weight
    23 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
