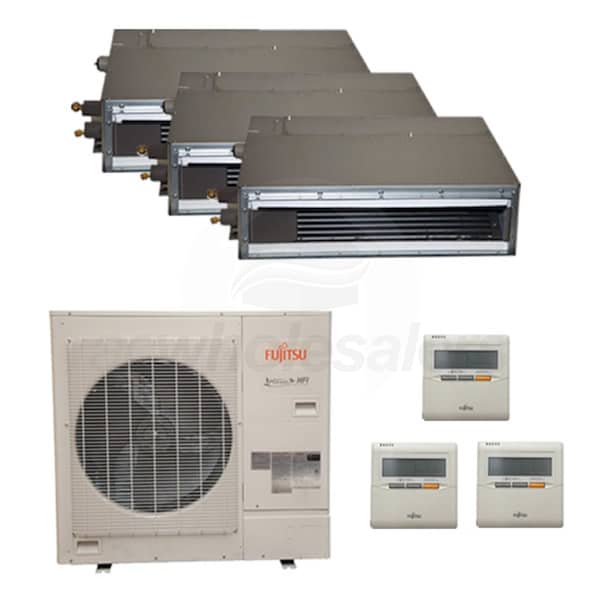

Fujitsu Concealed Duct 3-Zone System - 45,000 BTU Outdoor - 12k + 12k + 18k Indoor - 17.7 SEER

Model: F3H45D12121800 Item Number: 85102
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fujitsu F3H45D12121800
PREVIOUS
NEXT
Fujitsu F3H45D12121800
Fujitsu F3H45D12121800
Fujitsu F3H45D12121800
Enlarge Image
Fujitsu F3H45D12121800
Fujitsu F3H45D12121800
Fujitsu F3H45D12121800
View All
Our Price: $7,080.00
synchrony card icon
$89 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Click for important monthly payment and offer information.
Only 1 In-Stock
Ships Monday, December 11th
Shipping to60601
Fujitsu Concealed Duct 3-Zone System - 45,000 BTU Outdoor - 12k + 12k + 18k Indoor - 17.7 SEER
Fujitsu Concealed Duct 3-Zone System - 45,000 BTU Outdoor - 12k + 12k + 18k Indoor - 17.7 SEER Model: F3H45D12121800 Item Number: 85102
$7,080.00
Only 1 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    334 Pounds Learn More
    334 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
View More
Bundle Includes 4 items
  • product image
    (1) Fujitsu - 45k BTU - RLXFZ Outdoor Condenser - For 2-5 Zones (AOU45RLXFZ)
  • product image
    (1) Fujitsu - 18k BTU - Slim Concealed Duct Unit - For Multi or Single-Zone (ADUH18LUAS1)
  • product image
    (2) Fujitsu - 12k BTU - Slim Concealed Duct Unit - Multi or Single Zone (ADUH12LUAS1)
View Full Bundle
Outdoor Unit BTU/h
Select Attribute
Indoor Unit Sizes
Learn More
Indoor Unit Sizes
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Select Attribute
Enhanced Heating Capacity
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu F3H45D12121800

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the F3H45D12121800 concealed duct mini split system. If you are looking to provide heating and cooling for multiple zones, or supplement existing heating and air conditioning equipment, the Halcyon HFI mini split system is a reliable and efficient choice. This concealed duct system is perfect for zoned comfort without having to mount a unit to the wall. With a wide range of operating modes, this system can be customized to suit any of your comfort needs.
  • Inverter Technology
  • Inverter technology drives the compressor, allowing it to match output to demand. The result: a more stable and comfortable temperature within the space. This type of operation removes more moisture, reduces short-cycling, and improves efficiency.
  • Corrosion Resistant Heat Exchanger
  • Fujitsu applies a Blue Fin coating to the heat exchanger of their multi-zone outdoor condensers. This improves their resistance to many common sources of corrosion and extends their longevity.
  • Dehumidify and Cool
  • Dry mode demonstrates the concealed duct unit's versatility. In addition to providing moderate cooling, Dry Mode also dehumidifies your zone.
  • Economy Mode
  • The concealed duct unit features an Economy Mode that restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
  • Timer Function
  • The indoor units offer 7-day programmability with two unique on/off events on each individual day. This allows you to customize heating and cooling operations to suit your personal schedule, improving energy efficiency without compromising comfort.
  • Condensate Protection
  • There is a condensate pump in the concealed duct units. This pump removes condensation build up from your system, protecting it from potential damage and keeping it running efficiently.
  • Recommended line set sizes for indoor unit connectivity:
  • ARU12RLF: 1/4" x 3/8" Line Set (Qty 2)
  • ARU18RLF: 1/4" x 1/2" Line Set
    • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 4 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    AOU45RLXFZ Specifications
    ADUH18LUAS1 Specifications
    ADUH12LUAS1 Specifications
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Concealed Duct
    Product Line
    Halcyon HFI
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    3
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12 + 12 + 18
    Outdoor Unit Size
    45000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Performance
    Cooling Capacity
    42000 BTU
    Heating Capacity
    42900 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    17.7
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    9.8
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    9.3
    Cooling Power Input
    4190 Watts
    Heating Power Input
    3610 Watts
    Minimum Operating Temperature
    5 F
    Maximum Operating Temperature
    115 F
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Dimensions
    Product Weight
    334 Pounds
    Shipping Weight
    334 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    8908618
    General Information
    Type
    Outdoor Condenser
    Product Line
    Airstage RLXFZ
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    5
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    45000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    264 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    3/8 Inch
    Line Set D Liquid Connection
    1/4 Inch
    Line Set D Gas Connection
    1/2 Inch
    Line Set E Liquid Connection
    1/4 Inch
    Line Set E Gas Connection
    1/2 Inch
    Product Height
    39 5/16 Inches
    Product Width
    38 3/16 Inches
    Product Depth
    14 9/16 Inches
    Product Weight
    205 Pounds
    Shipping Height
    45 3/4 Inches
    Shipping Width
    45 1/4 Inches
    Shipping Depth
    18 13/16 Inches
    Shipping Weight
    215 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Concealed Duct
    Product Line
    Airstage LUAS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wired
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    18000
    Installation Location
    Indoor
    Performance
    Cooling BTU
    18000
    Cooling Capacity
    18000 BTU
    Maximum Air Flow
    553 CFM
    Minimum Air Flow
    441 CFM
    Minimum Sound Level
    29 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    32 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 13/16 Inches
    Product Width
    35 7/16 Inches
    Product Depth
    24 7/16 Inches
    Product Weight
    44 Pounds
    Shipping Height
    10 13/16 Inches
    Shipping Width
    37 3/16 Inches
    Shipping Depth
    30 3/8 Inches
    Shipping Weight
    57 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Concealed Duct
    Product Line
    Airstage LUAS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    12000
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    382 CFM
    Minimum Air Flow
    283 CFM
    Minimum Sound Level
    26 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    29 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 13/16 Inches
    Product Width
    27 9/16 Inches
    Product Depth
    24 7/16 Inches
    Product Weight
    37 Pounds
    Shipping Height
    10 13/16 Inches
    Shipping Width
    37 3/16 Inches
    Shipping Depth
    30 3/8 Inches
    Shipping Weight
    49 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    Overview
    Product Category
    Mini Split System Components
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.

    Manuals
    View More
    Share
    ×
    Fujitsu Concealed Duct 3-Zone System - 45,000 BTU Outdoor - 12k + 12k + 18k Indoor - 17.7 SEER
    Fujitsu F3H45D12121800
    Loading
    Fujitsu F3H45D12121800
    Fujitsu F3H45D12121800
    Fujitsu F3H45D12121800
    ×
    Customer Review Images
    Loading
    Scroll Up ArrowTo Top
