Fujitsu Wall Mounted 3-Zone System - 24,000 BTU Outdoor - 9k + 9k + 9k Indoor - 18.0 SEER

Model: F3H24W09090900 Item Number: 65954
Ask a Question
Fujitsu F3H24W09090900
PREVIOUS
NEXT
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Enlarge Image
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
Fujitsu F3H24W09090900
View All
Originally $3,123.95, you save 5%
Our Price: $2,967.75
synchrony card icon
$52 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 3-4 Weeks
Fujitsu Wall Mounted 3-Zone System - 24,000 BTU Outdoor - 9k + 9k + 9k Indoor - 18.0 SEER
Fujitsu Wall Mounted 3-Zone System - 24,000 BTU Outdoor - 9k + 9k + 9k Indoor - 18.0 SEER Model: F3H24W09090900 Item Number: 65954
$2,967.75
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    191 Pounds Learn More
    Type
    Wall Mounted
    Product Line
    Halcyon HFI
View More
Bundle Includes 4 items
  • product image

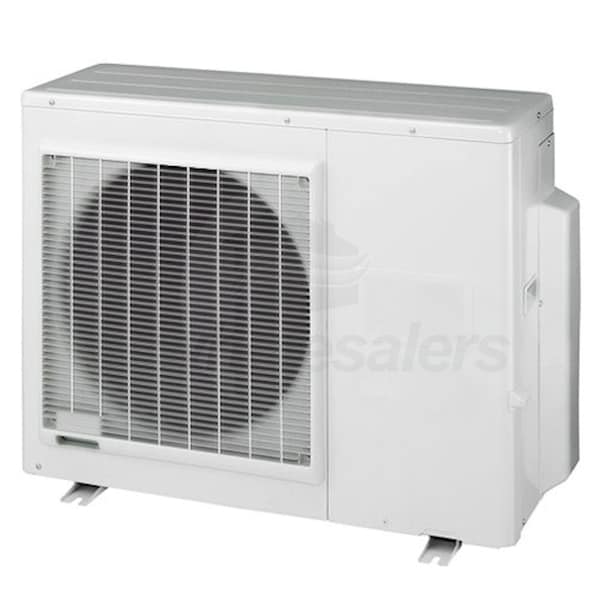

    (1) Fujitsu - 24k BTU - Outdoor Condenser - For 2-3 Zones (AOU24RLXFZ)
  • product image

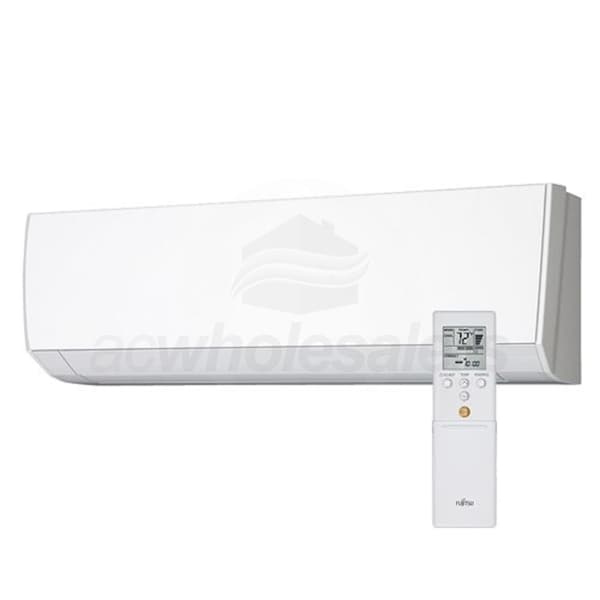

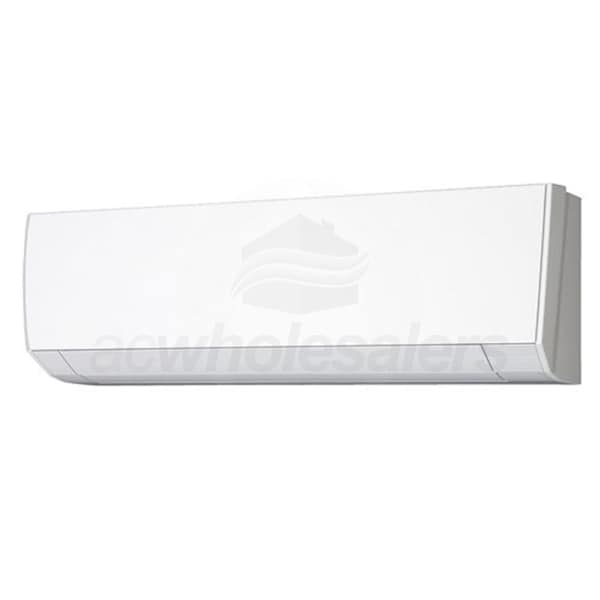

    (3) Fujitsu 9k BTU Wall Mounted Unit - For Multi or Single-Zone (ASU9RLF1)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu F3H24W09090900

Fujitsu's Multizone systems can have a multitude of combinations with wall mounted, compact cassette or slim duct type indoor units. Mix-and-match flexibility of evaporator type and capacity allows you to choose the indoor unit that best fits the application, whether it be hidden or showcased. These systems are ideal for nursing homes, doctor's offices, condominiums, apartments and residences - any place where individual cooling or heating is needed.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 4 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
AOU24RLXFZ Specifications
ASU9RLF1 Specifications
General Information
Type
Wall Mounted
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
3
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
9 + 9 + 9
Outdoor Unit Size
24000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
Cooling Capacity
22000 BTU
Heating Capacity
24000 BTU
SEER Learn More
18.0
EER Learn More
12.5
HSPF Learn More
9.5
Cooling Power Input
1770 Watts
Heating Power Input
1710 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
191 Pounds
Shipping Weight
191 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
6998279
General Information
Type
Outdoor Condenser
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
3
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
24000
Maximum Sound Level Learn More
49 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
164 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
1/2 Inch
Product Height
27 9/16 Inches
Product Width
35 7/16 Inches
Product Depth
13 Inches
Product Weight
124 Pounds
Shipping Height
32 7/8 Inches
Shipping Width
41 5/16 Inches
Shipping Depth
17 1/2 Inches
Shipping Weight
139 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Wall Mounted
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A

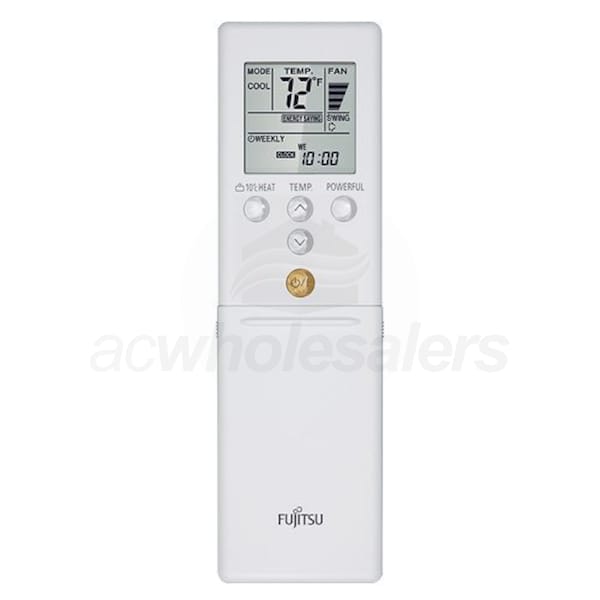

Remote Control
Wireless
Indoor Unit Size(s) Learn More
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
353 CFM
Minimum Air Flow
182 CFM
Minimum Sound Level
21 dB
Maximum Sound Level Learn More
37 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
10 1/2 Inches
Product Width
33 1/16 Inches
Product Depth
8 Inches
Product Weight
19 Pounds
Shipping Height
10 5/8 Inches
Shipping Width
34 13/16 Inches
Shipping Depth
14 3/4 Inches
Shipping Weight
23 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
