Fujitsu Wall Mount 2-Zone System - 45,000 BTU Outdoor - 18k + 24k Indoor - 19.7 SEER

Model: F2H45W18240000 Item Number: 85008
Ask a Question
Fujitsu F2H45W18240000
PREVIOUS
NEXT
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Enlarge Image
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
Fujitsu F2H45W18240000
View All
Our Price: $5,465.91
synchrony card icon
$69 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Ships in 3-4 Weeks
Fujitsu Wall Mount 2-Zone System - 45,000 BTU Outdoor - 18k + 24k Indoor - 19.7 SEER
Fujitsu Wall Mount 2-Zone System - 45,000 BTU Outdoor - 18k + 24k Indoor - 19.7 SEER Model: F2H45W18240000 Item Number: 85008
$5,465.91
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    267 Pounds Learn More
    Type
    Wall Mounted
    Product Line
    Halcyon HFI
View More
Bundle Includes 3 items
  • product image
    (1) Fujitsu - 45k BTU - Outdoor Condenser - For 2-5 Zones (AOU45RLXFZ)
  • product image
    (1) Fujitsu 24k BTU Wall Mounted Unit - For Multi or Single-Zone (ASU24RLF)
  • product image
    (1) Fujitsu 18k BTU Wall Mounted Unit - For Multi or Single-Zone (ASU18RLF)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu F2H45W18240000

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the F2H45W18240000 wall mounted mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipement, the Halcyon HFI mini split system is a reliable and efficient choice. With a wide range of operating modes, this system can be customized to suit any of your comfort needs.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. Important Warranty Information: Fujitsu General does not extend its manufacturers warranty to products purchased over the Internet. Any replacement parts that would normally be covered under the manufacturers warranty will be provided by eComfort.com, but only when equipment has been installed by a qualified professional HVAC contractor. Installation by others voids all warranties. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 3 items
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
AOU45RLXFZ Specifications
ASU24RLF Specifications
ASU18RLF Specifications
General Information
Type
Wall Mounted
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
2
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
18 + 24
Outdoor Unit Size
45000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
Cooling Capacity
42000 BTU
Heating Capacity
44800 BTU
SEER Learn More
19.7
EER Learn More
10.5
HSPF Learn More
10.3
Cooling Power Input
4170 Watts
Heating Power Input
3830 Watts
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
267 Pounds
Shipping Weight
267 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8908617
General Information
Type
Outdoor Condenser
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
5
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
45000
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
264 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
1/2 Inch
Line Set E Liquid Connection
1/4 Inch
Line Set E Gas Connection
1/2 Inch
Product Height
39 5/16 Inches
Product Width
38 3/16 Inches
Product Depth
14 9/16 Inches
Product Weight
205 Pounds
Shipping Height
45 3/4 Inches
Shipping Width
45 1/4 Inches
Shipping Depth
18 13/16 Inches
Shipping Weight
215 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Wall Mounted
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A

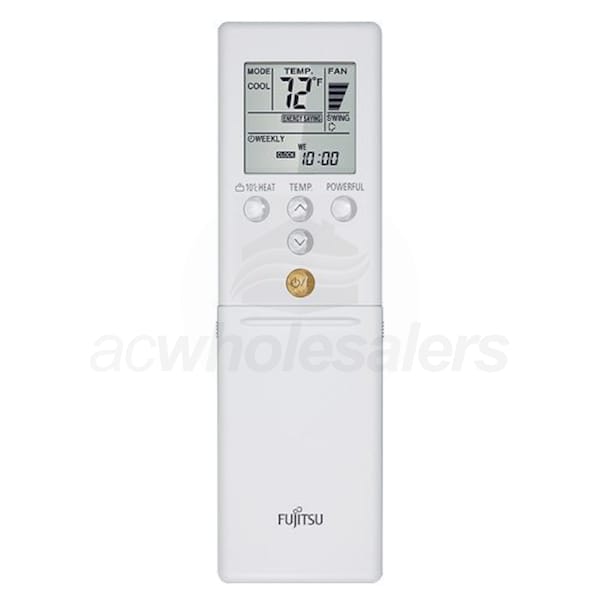

Remote Control
Wireless
Indoor Unit Size(s) Learn More
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
659 CFM
Minimum Air Flow
365 CFM
Minimum Sound Level
33 dB
Maximum Sound Level Learn More
49 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 5/8 Inches
Product Width
39 1/4 Inches
Product Depth
9 Inches
Product Weight
31 Pounds
Shipping Height
12 9/16 Inches
Shipping Width
42 15/16 Inches
Shipping Depth
16 7/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
General Information
Type
Wall Mounted
Product Line
Halcyon HFI
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
542 CFM
Minimum Air Flow
324 CFM
Minimum Sound Level
31 dB
Maximum Sound Level Learn More
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 5/8 Inches
Product Width
39 1/4 Inches
Product Depth
9 Inches
Product Weight
40 Pounds
Shipping Width
42 15/16 Inches
Shipping Height
12 9/16 Inches
Shipping Depth
16 7/8 Inches
Shipping Weight
50 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
