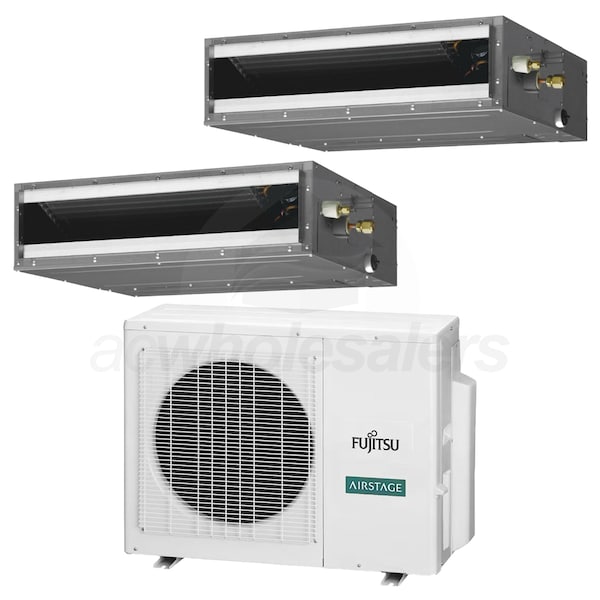

Fujitsu Concealed Duct 2-Zone System - 24,000 BTU Outdoor - 12k + 12k Indoor - 15.5 SEER

Model: F2H24D12120000 Item Number: 84995
Ask a Question
Fujitsu F2H24D12120000
PREVIOUS
NEXT
Fujitsu F2H24D12120000
Fujitsu F2H24D12120000
Fujitsu F2H24D12120000
Fujitsu F2H24D12120000
Fujitsu F2H24D12120000
Fujitsu F2H24D12120000
Enlarge Image
Fujitsu F2H24D12120000
Fujitsu F2H24D12120000
Fujitsu F2H24D12120000
Fujitsu F2H24D12120000
Fujitsu F2H24D12120000
Fujitsu F2H24D12120000
View All
Our Price: $3,063.95
synchrony card icon
$54 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 3-4 Weeks
Fujitsu Concealed Duct 2-Zone System - 24,000 BTU Outdoor - 12k + 12k Indoor - 15.5 SEER
Fujitsu Concealed Duct 2-Zone System - 24,000 BTU Outdoor - 12k + 12k Indoor - 15.5 SEER Model: F2H24D12120000 Item Number: 84995
$3,063.95
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    204 Pounds Learn More
    Type
    Concealed Duct
    Product Line
    Halcyon HFI
View More
Bundle Includes 3 items
  • product image
    (1) Fujitsu - 24k BTU - Outdoor Condenser - For 2-3 Zones (AOU24RLXFZ)
  • product image
    (2) Fujitsu - 12k BTU - Concealed Duct Unit - For Multi or Single-Zone (ARU12RLF)
View Full Bundle
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu F2H24D12120000

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the F2H24D12120000 concealed duct mini split system. If you are looking to provide heating and cooling for multiple zones, or supplement existing heating and air conditioning equipment, the Halcyon HFI mini split system is a reliable and efficient choice. This concealed duct system is perfect for zoned comfort without having to mount a unit to the wall. With a wide range of operating modes, this system can be customized to suit any of your comfort needs.
  • Product Features
  • Weekly Timer
  • Wired Remote Controller
  • Auto Changeover
  • Automatic Airflow Adjustment
  • Powerful Mode
  • Cold Prevention
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 3 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    AOU24RLXFZ Specifications
    ARU12RLF Specifications
    General Information
    Type
    Concealed Duct
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Number of Zones Learn More
    2
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    12 + 12
    Outdoor Unit Size
    24000 BTU
    DOE Regional Compliance Learn More
    Nationwide
    Performance
    Cooling Capacity
    22000 BTU
    Heating Capacity
    24000 BTU
    SEER Learn More
    15.5
    EER Learn More
    10.6
    HSPF Learn More
    9.0
    Cooling Power Input
    2080 Watts
    Heating Power Input
    2050 Watts
    Minimum Operating Temperature
    5 F
    Maximum Operating Temperature
    115 F
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Dimensions
    Product Weight
    204 Pounds
    Shipping Weight
    204 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    AHRI Reference Number
    4397406
    General Information
    Type
    Outdoor Condenser
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Maximum Number of Zones
    3
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    24000
    Maximum Sound Level Learn More
    49 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    20 Amps
    Dimensions
    Maximum Line Length
    164 Feet
    Line Set A Liquid Connection
    1/4 Inch
    Line Set A Gas Connection
    3/8 Inch
    Line Set B Liquid Connection
    1/4 Inch
    Line Set B Gas Connection
    3/8 Inch
    Line Set C Liquid Connection
    1/4 Inch
    Line Set C Gas Connection
    1/2 Inch
    Product Height
    27 9/16 Inches
    Product Width
    35 7/16 Inches
    Product Depth
    13 Inches
    Product Weight
    124 Pounds
    Shipping Height
    32 7/8 Inches
    Shipping Width
    41 5/16 Inches
    Shipping Depth
    17 1/2 Inches
    Shipping Weight
    139 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Concealed Duct
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wired
    Indoor Unit Size(s) Learn More
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    383 CFM
    Minimum Air Flow
    283 CFM
    Minimum Sound Level
    24 dB
    Maximum Sound Level Learn More
    29 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 13/16 Inches
    Product Width
    27 9/16 Inches
    Product Depth
    24 7/16 Inches
    Product Weight
    40 Pounds
    Shipping Height
    10 13/16 Inches
    Shipping Width
    37 3/16 Inches
    Shipping Depth
    30 3/8 Inches
    Shipping Weight
    51 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
