Fujitsu AUU9RLF 9,000 BTU Ceiling Recessed Air Handler w/ Grille

Model: AUU9RLF Item Number: 68592
Ask a Question
Fujitsu AUU9RLF
PREVIOUS
NEXT
Fujitsu AUU9RLF
Fujitsu AUU9RLF
Fujitsu AUU9RLF
Fujitsu AUU9RLF
Fujitsu AUU9RLF
Enlarge Image
Fujitsu AUU9RLF
Fujitsu AUU9RLF
Fujitsu AUU9RLF
Fujitsu AUU9RLF
Fujitsu AUU9RLF
View All
Our Price: $1,128.85

21 In-Stock
Ships Monday, October 21st
Fujitsu AUU9RLF 9,000 BTU Ceiling Recessed Air Handler w/ Grille
Fujitsu AUU9RLF 9,000 BTU Ceiling Recessed Air Handler w/ Grille Model: AUU9RLF Item Number: 68592
$1,128.85
21 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More *This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Low Price Guarantee Learn More Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New Learn More This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    38.7 Pounds Learn More Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ceiling Cassette
    Product Line
    Halcyon HFI
View More

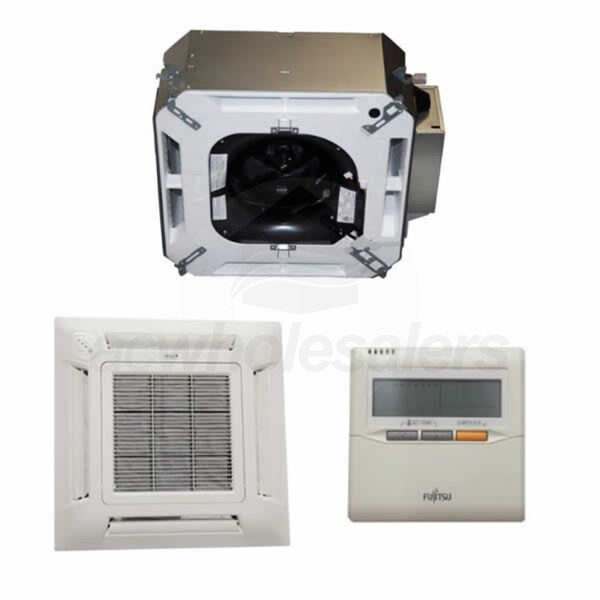

Bundle Includes 3 items
  • (1) Fujitsu - 9k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (AUU9RLF-NOGRILLE)
  • (1) Fujitsu Halcyon HFI - Ceiling Cassette Grille (UTG-CCGFG)
  • (1) Fujitsu Air Conditioner Wired Remote Controller (UTY-RNNUM)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu AUU9RLF

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the AUU9RLF wall mounted designer mini split indoor unit. This mini split indoor unit has a sleek, modern design, and a front panel that slides upwards to maintain its slim profile. The AUU9RLF is capable of cooling, drying, and heating operations, none of which will disrupt your home thanks to the low operating sound levels. Between the advanced filtration technology and the additional operating modes, the AUU9RLF is a choice that promotes health and comfort year round.
Product Note
This product requires a compatible Fujitsu mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
  • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
Important Warranty Information: Fujitsu General does not extend its manufacturers warranty to products purchased over the Internet. Any replacement parts that would normally be covered under the manufacturers warranty will be provided by eComfort.com, but only when equipment has been installed by a qualified professional HVAC contractor. Installation by others voids all warranties.
Bundle Includes 3 items

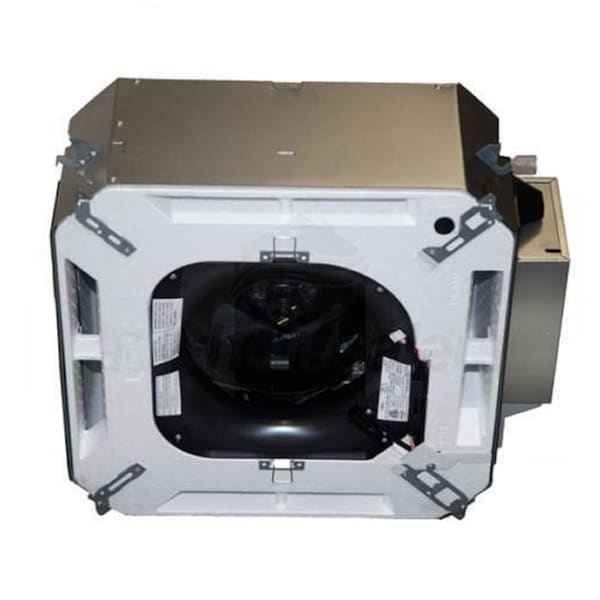

  • Fujitsu - 9k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately
    Model: AUU9RLF-NOGRILLE
    Item Number: 65398
    Quantity: 1
  • Fujitsu Halcyon HFI - Ceiling Cassette Grille
    Model: UTG-CCGFG
    Item Number: 99249
    Quantity: 1
  • Fujitsu Air Conditioner Wired Remote Controller
    Model: UTY-RNNUM
    Item Number: 50284
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overview
Bundle Overview
AUU9RLF-NOGRILLE Specifications
UTG-CCGFG Specifications
UTY-RNNUM Specifications
General Information
Type
Ceiling Cassette
Product Line
Halcyon HFI
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Minimum Air Flow
230 CFM
Maximum Air Flow
318 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
34 dB
Minimum Sound Level
27 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
27 9/16 Inches
Product Width
27 9/16 Inches
Product Depth
11 29/48 Inches
Product Weight
38.7 Pounds
Shipping Height
30 1/8 Inches
Shipping Width
29 35/48 Inches
Shipping Depth
15 2/12 Inches
Shipping Weight
50 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
General Information
Type
Ceiling Cassette
Product Line
Halcyon HFI
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Minimum Air Flow
230 CFM
Maximum Air Flow
318 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
34 dB
Minimum Sound Level
27 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 5/8 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
33 Pounds
Shipping Height
10 7/16 Inches
Shipping Width
28 3/4 Inches
Shipping Depth
24 5/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
General Information
Type
Grille
Dimensions
Product Height
1 15/16 Inches
Product Width
27 9/16 Inches
Product Depth
27 9/16 Inches
Product Weight
10 Pounds
Shipping Height
4 3/4 Inches
Shipping Width
30 1/8 Inches
Shipping Depth
28 3/4 Inches
Shipping Weight
10 Pounds
General Information
Interface
Buttons
Dimensions
Product Height
4 3/4 Inches
Product Width
4 3/4 Inches
Product Depth
35/48 Inch
Product Weight
1.75 Pounds
Shipping Width
7 43/48 Inches
Shipping Height
10 19/24 Inches
Shipping Depth
2 29/48 Inches
Shipping Weight
1.75 Pounds
Certifications
Country of Origin
Thailand
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
