Fujitsu 24k BTU Wall Mounted Unit - For Multi or Single-Zone

Model: ASU24RLF Item Number: 65392
Ask a Question
Fujitsu ASU24RLF
PREVIOUS
NEXT
Fujitsu ASU24RLF
Watch Video
Watch Video
Fujitsu ASU24RLF
Fujitsu ASU24RLF
Fujitsu ASU24RLF
Fujitsu ASU24RLF
Fujitsu ASU24RLF
Enlarge Image
Fujitsu ASU24RLF
Fujitsu ASU24RLF
Watch Video
Fujitsu ASU24RLF
Watch Video
Fujitsu ASU24RLF
Fujitsu ASU24RLF
Fujitsu ASU24RLF
Fujitsu ASU24RLF
Fujitsu ASU24RLF
View All
Our Price: $1,015.95
synchrony card icon
$170 / Month
Suggested monthly payments with 6 month financing.
Ships in 8-12 Weeks
Fujitsu 24k BTU Wall Mounted Unit - For Multi or Single-Zone
Fujitsu 24k BTU Wall Mounted Unit - For Multi or Single-Zone Model: ASU24RLF Item Number: 65392
$1,015.95
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    31 Pounds Learn More
    Type
    Wall Mounted
    Product Line
    Halcyon HFI
View More
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fujitsu ASU24RLF

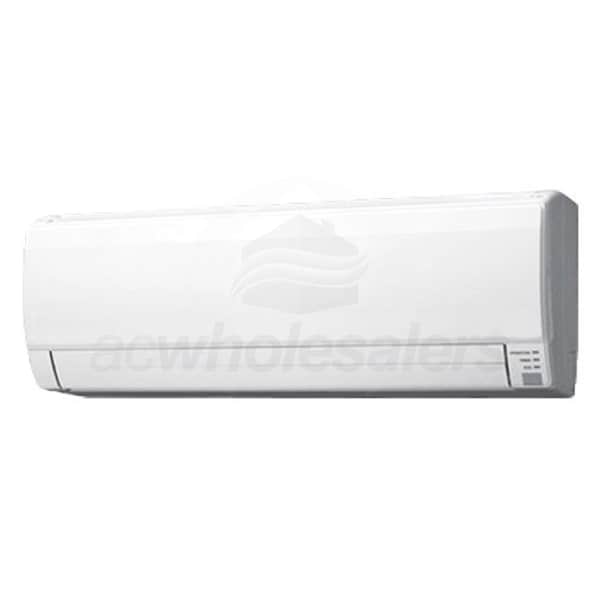

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the ASU24RLF wall mounted mini split indoor unit. The ASU24RLF is capable of cooling, drying, and heating operations. It features a quick installation process, allowing it to be easily incorporated into multi-zone systems for all manners of applications. Between the advanced filtration technology, the additional operating modes, and the advanced airflow control, the ASU24RLF promotes health and comfort year round.
  • Apple Catechin Filter
  • Ion Deodorizing Filter
  • Sleep Timer
  • 24-Hour Timer
  • Dry Mode
  • Auto Louver: Up/ Down
  • Long Piping Length (165'+)
  • Auto Mode
  • Minimum Heat Mode
  • Quiet Mode
  • Auto Restart/Reset
  • Auto Changeover
  • Power Diffuser
  • Our SKU number(s): Fujitsu ASU24RLF
  • The manufacturer model number(s): Fujitsu ASU24RLF
  • Product Note
    This product requires a compatible Fujitsu mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
    Specifications
    View More

    Specifications

    General Information
    Type
    Wall Mounted
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A

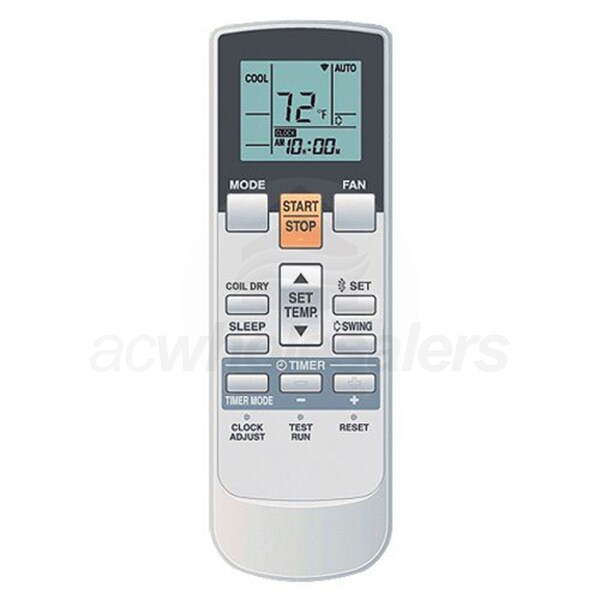

    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    24
    Installation Location
    Indoor
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Maximum Air Flow
    659 CFM
    Minimum Air Flow
    365 CFM
    Minimum Sound Level
    33 dB
    Maximum Sound Level Learn More
    49 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    12 5/8 Inches
    Product Width
    39 1/4 Inches
    Product Depth
    9 Inches
    Product Weight
    31 Pounds
    Shipping Height
    12 9/16 Inches
    Shipping Width
    42 15/16 Inches
    Shipping Depth
    16 7/8 Inches
    Shipping Weight
    40 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    5 Years
