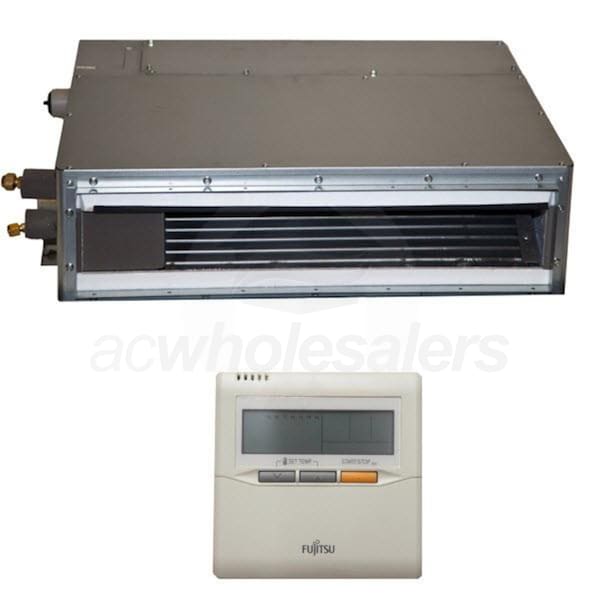

Fujitsu - 9k BTU - Concealed Duct Unit - For Multi or Single-Zone

Model: ARU9RLF Item Number: 65388
Fujitsu ARU9RLF
PREVIOUS
NEXT
Fujitsu ARU9RLF
Fujitsu ARU9RLF
Fujitsu ARU9RLF
Enlarge Image
Fujitsu ARU9RLF
Fujitsu ARU9RLF
Fujitsu ARU9RLF
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    40 Pounds Learn More
    40 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split System Components
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fujitsu ARU9RLF

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the ARU9RLF concealed duct mini split indoor unit capable of cooling, drying, and heating operations. A concealed duct indoor unit installs easily in ductwork, and it has no visible profile in your home. This unit also enjoys low operating sound levels in any mode, providing comfort that doesn't disrupt your home at any level. When it comes to heating and cooling a space discretely and efficiently, it's hard to beat the ARU9RLF.
  • Timer Function
  • This unit offers 7-day programmability with two unique on/off events on each individual day. This allows you to customize heating and cooling operations to suit your personal schedule, improving energy efficiency without compromising your home's comfort.
  • Dehumidify and Cool
  • Dry Mode demonstrates the ARU9RLF's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
  • Quiet Operating Mode
  • The ARU9RLF may be set in a quiet operating mode. This operating mode limits airflow slightly to reduce fan noise from the unit, allowing you to enjoy supremely quiet comfort.
  • Condensate Protection
  • There is a condensate pump in the ARU9RLF. This pump removes condensation build up from your system, protecting it from potential damage and keeping it running efficiently.
  • Economy Mode
  • The ARU9RLF features an Economy Mode restricts the unit's maximum output to decrease energy use and increase savings. This mode also increases the unit's dehumidification capabilities during cooling operations and in Dry Mode.
  • Product Note
    This product requires a compatible Fujitsu mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
    Specifications
    View More

    Specifications

    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Concealed Duct
    Product Line
    Halcyon HFI
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wired
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9
    Installation Location
    Indoor
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    353 CFM
    Minimum Air Flow
    265 CFM
    Minimum Sound Level
    24 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    28 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    7 13/16 Inches
    Product Width
    27 9/16 Inches
    Product Depth
    24 7/16 Inches
    Product Weight
    40 Pounds
    Shipping Height
    10 13/16 Inches
    Shipping Width
    37 3/16 Inches
    Shipping Depth
    30 3/8 Inches
    Shipping Weight
    51 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
