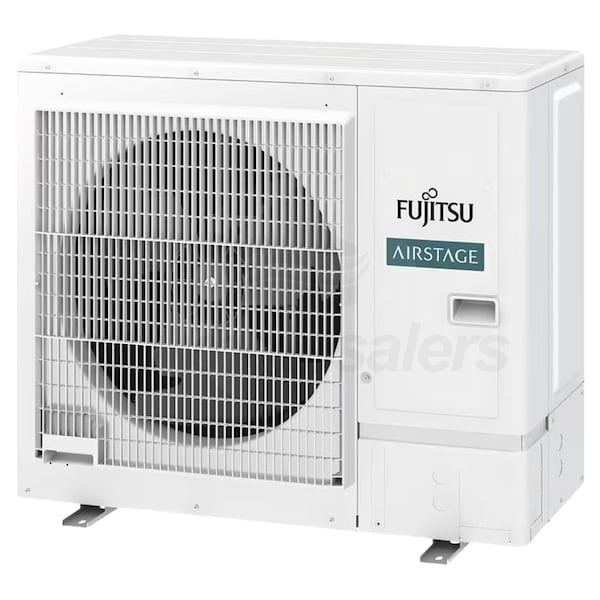

Fujitsu - 30k BTU - LPAS1 Outdoor Condenser - Single Zone Only

Model: AOUH30LPAS1 Item Number: 117416
Fujitsu AOUH30LPAS1
PREVIOUS
NEXT
Fujitsu AOUH30LPAS1
Enlarge Image
Not For Individual Sale
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    134 Pounds Learn More
    134 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Outdoor Condenser
    Product Line
    Airstage LPAS
Capacity (BTU/h)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fujitsu AOUH30LPAS1

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the LPAS1 wall mounted mini split indoor unit. The LPAS1 is capable of cooling, drying, and heating operations. Between the advanced filtration technology, the additional operating modes, and the advanced airflow control, the LPAS1 promotes health and comfort year round.
  • Auto Changeover
  • The air conditioner switches between the cooling and heating modes automatically according to the set temperature and the room temperature.
  • Weekly & 24 hr. Timer
  • You can choose any day between Monday and Sunday, and can be set up to four ON Timers or OFF Timers in one day.
  • Auto Louver
  • Redirects airflow automatically with up/down and left/right motion.
  • Minimum Heat Mode
  • The room temperature can be maintained at 50 degrees fahrenheit so as to prevent the room temperature from falling too far.
  • Auto Restart
  • The air conditioner will then restart automatically in its previous mode when the power is restored.
  • Economy Mode
  • Economy operation mode allows you to save more energy by setting the room temperature to be little higher than the set-temp under cooling mode and lower than set-temp under heating mode.
  • Energy Saving Program (ESP)
  • With the ESP function, the system actively monitors occupancy and adjusts system settings accordingly to achieve optimum energy savings.
  • Wireless Remote control
  • The Wireless Remote Controller allows convenient control of indoor unit operation.
  • Outdoor Unit Low Noise Schedule
  • Limits compressor and fan speed during high speed operation for noise reduction purposes. It is effective when the surrounding area is quiet, such as in the night.
  • Product Note
    This product requires a compatible Fujitsu mini split indoor units and the following accessories for indoor unit installation:Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.Connecting Cable - This durable, insulated cable provides power to your indoor units from your outdoor condenser.
    Specifications
    View More

    Specifications

    General Information
    Type
    Outdoor Condenser
    Product Line
    Airstage LPAS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    30000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    52 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    164 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    31 Inches
    Product Width
    37 Inches
    Product Depth
    12 5/8 Inches
    Product Weight
    134 Pounds
    Shipping Height
    38 1/16 Inches
    Shipping Width
    40 7/16 Inches
    Shipping Depth
    17 1/2 Inches
    Shipping Weight
    143 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
