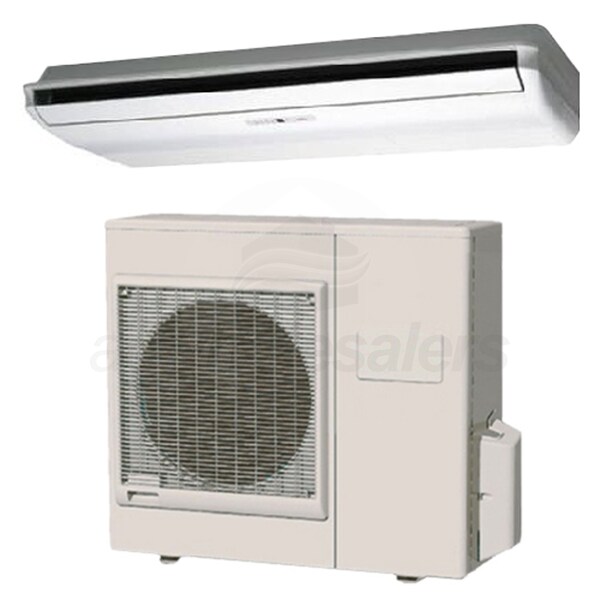

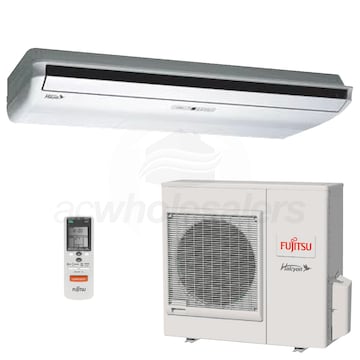

Fujitsu - 36k BTU Cooling + Heating - Ceiling Suspended Air Conditioning System - 14.0 SEER

Model: 36RSLX Item Number: 65772
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fujitsu 36RSLX
PREVIOUS
NEXT
Fujitsu 36RSLX
Fujitsu 36RSLX
Fujitsu 36RSLX
Enlarge Image
Fujitsu 36RSLX
Fujitsu 36RSLX
Watch Video
Fujitsu 36RSLX
Watch Video
Fujitsu 36RSLX
Fujitsu 36RSLX
View All
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    247 Pounds Learn More
    247 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Mini Split Heat Pump System
View More
Bundle Includes 2 items
  • product image
    (1) Fujitsu - 36k BTU - RLX Outdoor Condenser - Single Zone Only (AOU36RLX)
  • product image
    (1) Fujitsu - 36k BTU - Ceiling Suspended Unit - For Single-Zone (ABU36RSLX)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu 36RSLX

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 36RSLX ceiling suspended mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the 36RSLX mini split system is a reliable and efficient choice. This system is designed to provide effective heating and cooling on a budget. The Fujitsu 36RSLX is an excellent addition to any home or business.
  • Inverter Technology
  • The 36RSLX outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change.
  • Dehumidify and Cool
  • Dry Mode demonstrates the ABU36RSLX's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
  • Airflow Control
  • The airflow direction of this indoor unit may be set to swing automatically between its seven vertical positions and five horizontal positions. This disperses the hot or cold air evenly across your zone, resulting in consistent in heating and cooling.
  • Intelligent Temperature Calculation
  • High ceiling mode considers the fact that rooms with raised ceilings heat differently than traditionally sized rooms. The ABU36RSLX may be set to account for the height of the ceiling in which it is installed when making temperature calculations.
  • Fresh Air Intake
  • The indoor unit included with this system supports additional ductwork to bring air from outside into your system. Instead of just recycling air, the ABU36RSLX can also introduce fresh air into your home or business.
    • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 2 items
    • product kit image

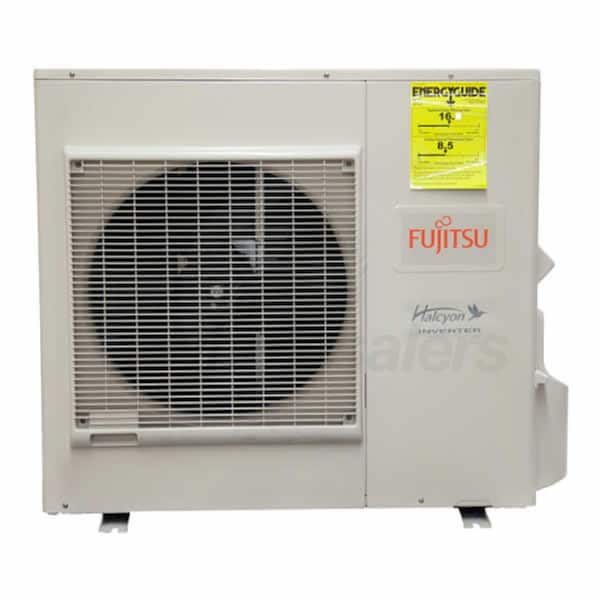

      Fujitsu - 36k BTU - RLX Outdoor Condenser - Single Zone Only
      Model: AOU36RLX
      Item Number: 65567
      Quantity: 1
    • product kit image

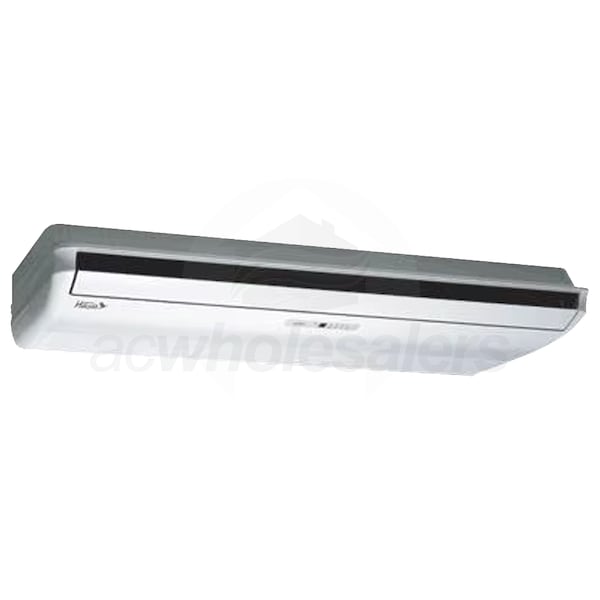

      Fujitsu - 36k BTU - Ceiling Suspended Unit - For Single-Zone
      Model: ABU36RSLX
      Item Number: 65634
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    AOU36RLX Specifications
    ABU36RSLX Specifications
    Overview
    Product Category
    Mini Split Heat Pump System
    General Information
    Type
    Ceiling Suspended
    Product Line
    RSLX
    Product Category
    Mini Split Heat Pump System
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Outdoor Unit Size
    36000 BTU
    DOE Regional Compliance Learn More
    DOE Regional Compliance
    In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
    Nationwide
    Line Set Size
    3/8" x 5/8"
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    34100 BTU
    Heating Capacity
    36500 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    14.0
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
    8.1
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    8.5
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    14 F
    Minimum Outdoor Temperature for Cooling
    0 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Product Weight
    247 Pounds
    Shipping Weight
    251 Pounds
    Certifications
    AHRI Certified
    Yes
    AHRI Reference Number
    883717
    General Information
    Type
    Outdoor Condenser
    Product Line
    RLX
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    36000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    55 dB
    Low Ambient Heating
    No
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    14 F
    Minimum Outdoor Temperature for Cooling
    0 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    165 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    32 3/4 Inches
    Product Width
    35 1/2 Inches
    Product Depth
    15 3/4 Inches
    Product Weight
    141 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    2 Years
    Compressor Warranty
    6 Years
    General Information
    Type
    Ceiling Suspended
    Product Line
    RSLX
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    36
    Installation Location
    Indoor
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Maximum Air Flow
    1088 CFM
    Minimum Sound Level
    39 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    48 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    27 5/8 Inches
    Product Width
    65 1/2 Inches
    Product Depth
    9 1/2 Inches
    Product Weight
    106 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
