Originally $3,373.91, you save 5%
Our Price: $3,205.21
synchrony card icon
$57 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 3-4 Weeks
Fujitsu - 36k BTU Cooling + Heating - RLXB Wall Mounted Air Conditioning System - 15.5 SEER
Fujitsu - 36k BTU Cooling + Heating - RLXB Wall Mounted Air Conditioning System - 15.5 SEER Model: 36RLXB Item Number: 65519
$3,205.21
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    165 Pounds Learn More
    Type
    Wall Mounted
    Operating Mode
    Heating and Cooling
View More
Bundle Includes 2 items
  • product image
    (1) Fujitsu - 36k BTU - RLXB Outdoor Condenser - Single Zone Only (AOU36RLXB)
  • product image
    (1) Fujitsu 36k BTU Wall Mounted Unit - For Single-Zone (ASU36RLXB)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

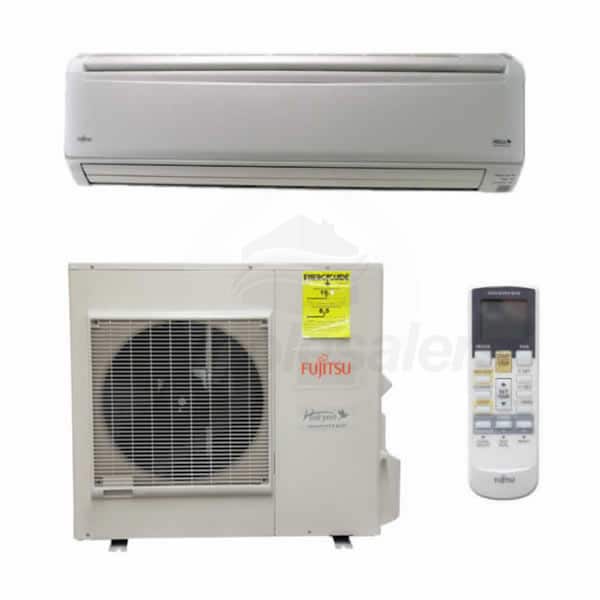

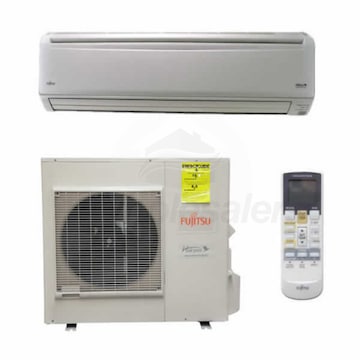

Overview for Fujitsu 36RLXB

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 36RLXB wall mounted mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the 36RLXB mini split system is a reliable and efficient choice. This system is designed to provide effective heating and cooling on a budget. The Fujitsu 36RLXB is an excellent addition to any home or business.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 2 items
  • product kit image

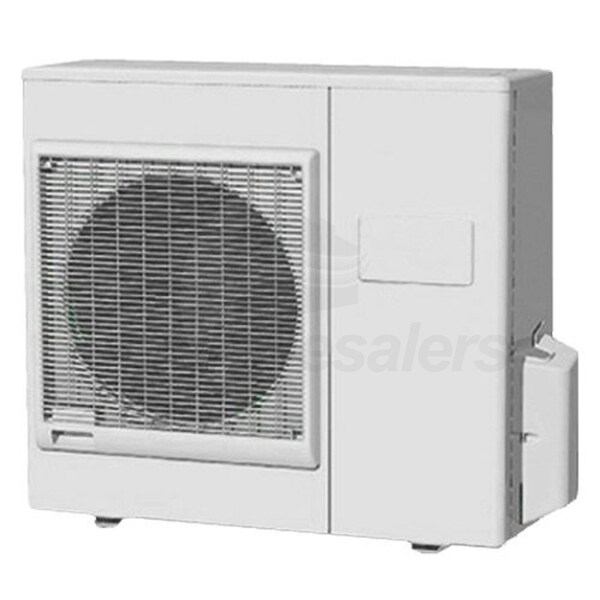

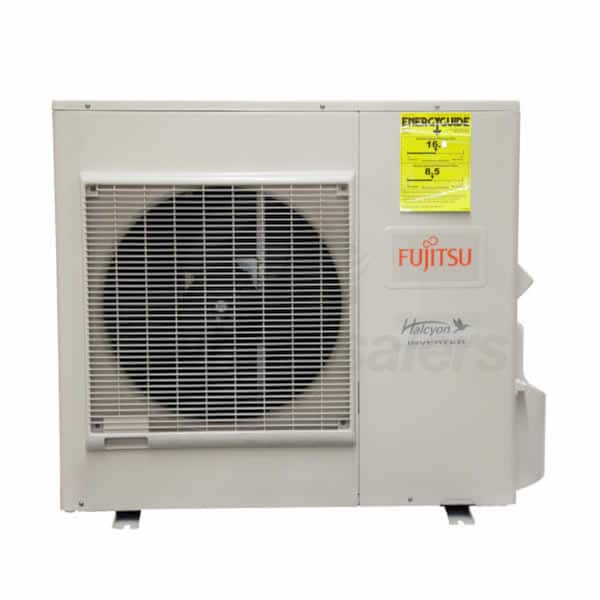

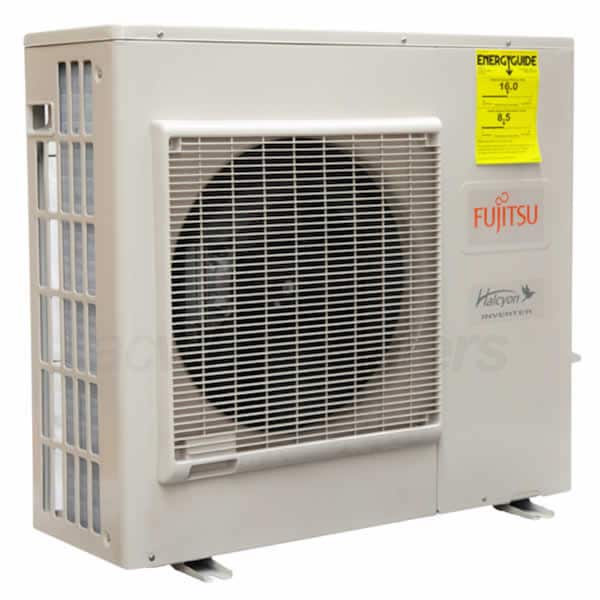

    Fujitsu - 36k BTU - RLXB Outdoor Condenser - Single Zone Only
    Model: AOU36RLXB
    Item Number: 65434
    Quantity: 1
  • product kit image

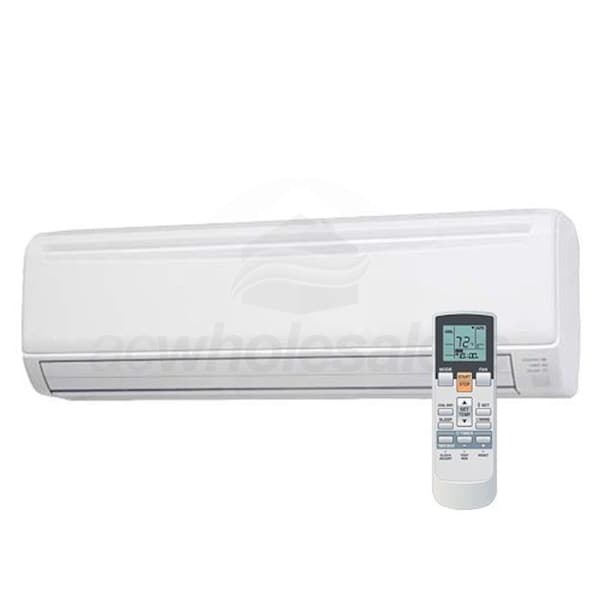

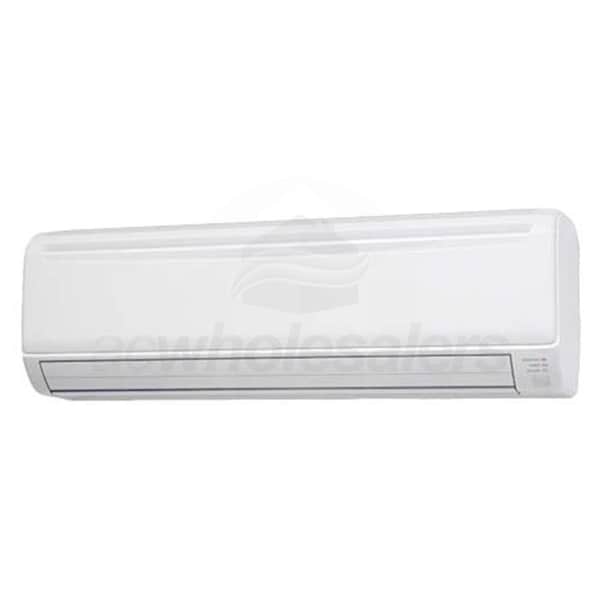

    Fujitsu 36k BTU Wall Mounted Unit - For Single-Zone
    Model: ASU36RLXB
    Item Number: 65435
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
AOU36RLXB Specifications
ASU36RLXB Specifications
General Information
Type
Wall Mounted
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
36
Outdoor Unit Size
36000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
36000
Cooling Capacity
36000 BTU
Heating Capacity
36000 BTU
SEER Learn More
15.5
EER Learn More
8.5
HSPF Learn More
9.0
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
165 Pounds
Shipping Weight
169 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
7942494
General Information
Type
Outdoor Condenser
Product Line
RLXB
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
36000
Maximum Sound Level Learn More
55 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
164 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
32 11/16 Inches
Product Width
35 7/16 Inches
Product Depth
13 Inches
Product Weight
134 Pounds
Shipping Height
38 3/16 Inches
Shipping Width
41 5/16 Inches
Shipping Depth
17 1/2 Inches
Shipping Weight
150 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Wall Mounted
Product Line
RLXB
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A

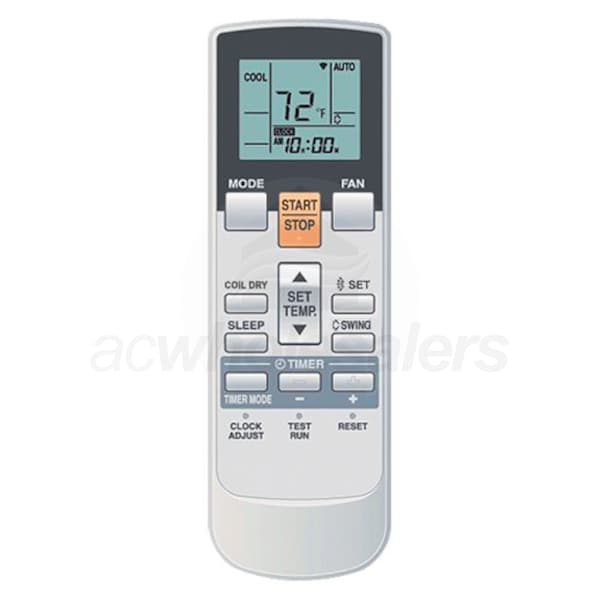

Remote Control
Wireless
Indoor Unit Size(s) Learn More
36
Installation Location
Indoor
Performance
Cooling BTU
36000
Cooling Capacity
36000 BTU
Maximum Air Flow
695 CFM
Minimum Air Flow
365 CFM
Minimum Sound Level
32 dB
Maximum Sound Level Learn More
50 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
12 5/8 Inches
Product Width
39 5/16 Inches
Product Depth
9 Inches
Product Weight
31 Pounds
Shipping Height
12 9/16 Inches
Shipping Width
42 15/16 Inches
Shipping Depth
16 7/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
