Fujitsu - 30k BTU Cooling + Heating - Mid-Static Concealed Duct Air Conditioning System - 16.5 SEER
Model: 30RGLXDItem Number: 123396
Ask a Question
Enlarge Image
View All
Specification Highlights
Condition
New NewThis product is new and has never been used. It's in its original packaging, which has not been opened.
Weight
227 Pounds 227 PoundsTotal weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
Product Category
Mini Split Heat Pump System
View More
Bundle Includes 2 items
(1) Fujitsu - 30k BTU - Outdoor Condenser - For Single Zone (AOU30RGLX)
(1) Fujitsu 30k Mid Static Concealed Duct - Multi or Single Zone (ARU30RGLX)
View Full Bundle
+Share This Product
Recommended Accessories
Required AccessoriesAdd All Required
Installation Accessories
Features & Bundle Details
Features & Bundle Details
Overview for Fujitsu 30RGLXD
Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 30RGLXD concealed duct mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the 30RGLXD mini split system is a reliable and efficient choice. The concealed duct indoor unit installs easily in ductwork, where it can provide comfort without disrupting the design of your room. The Fujitsu 30RGLXD is a low-profile addition to any home or business.
Inverter Technology
The AOU30RGLX outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change.
Low Ambient Heating
Fujitsu's low temperature heating technology allows this condenser to safely maintain its rated capacity in outdoor temperatures as low as -5 degrees Fahrenheit. The ARU30RGLX can operate in heating mode in conditions as low as -5 degrees Fahrenheit.
Bundle Includes 2 items

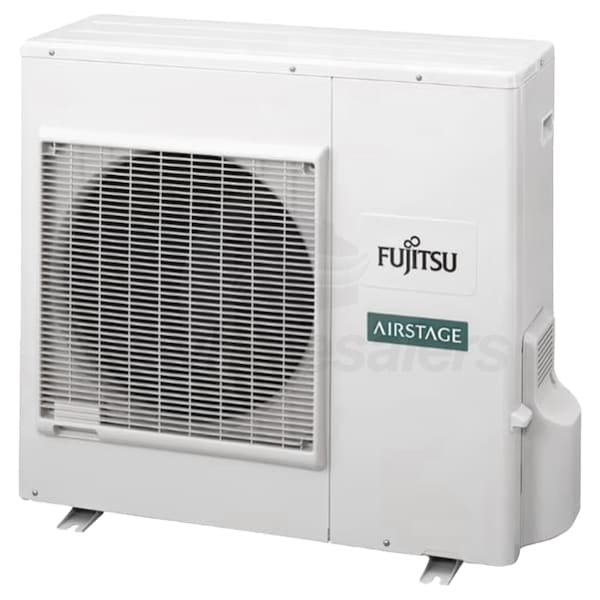

Fujitsu - 30k BTU - Outdoor Condenser - For Single Zone
Model: AOU30RGLX
Item Number: 109250
Quantity: 1
Fujitsu 30k Mid Static Concealed Duct - Multi or Single Zone
Model: ARU30RGLX
Item Number: 123366
Quantity: 1
Specifications
Specifications
Included In This Bundle
Bundle Overview
Bundle Overview
AOU30RGLX Specifications
ARU30RGLX Specifications
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Concealed Duct
Product Category
Mini Split Heat Pump System
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Number of Zones Number of ZonesA zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Installation Location
Indoor
Outdoor Unit Size
30000 BTU
DOE Regional Compliance DOE Regional ComplianceIn 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region.
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Heating Capacity
32000 BTU
SEER SEERSEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
16.5
EER EEREER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system.
10.6
HSPF HSPFHSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
10.4
Maximum Air Flow
1001 CFM
Minimum Air Flow
630 CFM
Minimum Operating Temperature
-5 F
Minimum Sound Level
29 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
37 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Minimum Outdoor Temperature for HeatingThis is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
-5 F
Minimum Outdoor Temperature for Cooling
-5 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
20.8 Amps
Recommended Breaker Size
30 Amps
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
5/8 Inch
Product Weight
227 Pounds
Shipping Weight
262 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
202537548
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
General Information
Type
Outdoor Condenser
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Outdoor Unit Size
30000 BTU
Performance
Cooling BTU
30000
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
General Information
Type
Concealed Duct
Product Line
Halcyon
Product Category
Mini Split System Components
Operating Mode Operating ModeSome products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s) Indoor Unit Size(s)Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30000
Installation Location
Indoor
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Air Flow
1001 CFM
Minimum Air Flow
630 CFM
Minimum Sound Level
29 dB
Maximum Sound Level Maximum Sound LevelSound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
37 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Parts WarrantyA warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
5 Years
Compressor Warranty
7 Years
Overview
Product Category
Mini Split System Components
