Fujitsu - 18k BTU Cooling + Heating - Ceiling Cassette Air Conditioning System - 16.0 SEER

Model: 18RCLX Item Number: 65604
Ask a Question
Fujitsu 18RCLX
PREVIOUS
NEXT
Fujitsu 18RCLX
Fujitsu 18RCLX
Fujitsu 18RCLX
Enlarge Image
Fujitsu 18RCLX
Fujitsu 18RCLX
Fujitsu 18RCLX
View All
Originally $3,331.91, you save 5%
Our Price: $3,165.31
synchrony card icon
$56 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Ships in 3-4 Weeks
Fujitsu - 18k BTU Cooling + Heating - Ceiling Cassette Air Conditioning System - 16.0 SEER
Fujitsu - 18k BTU Cooling + Heating - Ceiling Cassette Air Conditioning System - 16.0 SEER Model: 18RCLX Item Number: 65604
$3,165.31
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    216 Pounds Learn More
    Type
    Ceiling Cassette
    Product Line
    RCLX
View More
Bundle Includes 2 items
  • product image
    (1) Fujitsu - 18k BTU - RLX Outdoor Condenser - Single Zone Only (AOU18RLX)
  • product image
    (1) Fujitsu - 18k BTU - Ceiling Cassette - For Single-Zone - Grille Included (AUU18RCLX)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu 18RCLX

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 18RCLX ceiling cassette mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the 18RCLX mini split system is a reliable and efficient choice. The compact ceiling cassette unit mounts easily in your ceiling, allowing you to install the unit at the center of your zone for ideal airflow coverage. This system has an array of effective operating modes that allow you to customize operations to suit your comfort. The Fujitsu 18RCLX is a powerful addition to any home or business.
Product Note
This product requires the following accessories for installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
  • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
  • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Bundle Includes 2 items
  • product kit image
    Fujitsu - 18k BTU - RLX Outdoor Condenser - Single Zone Only
    Model: AOU18RLX
    Item Number: 65563
    Quantity: 1
  • product kit image

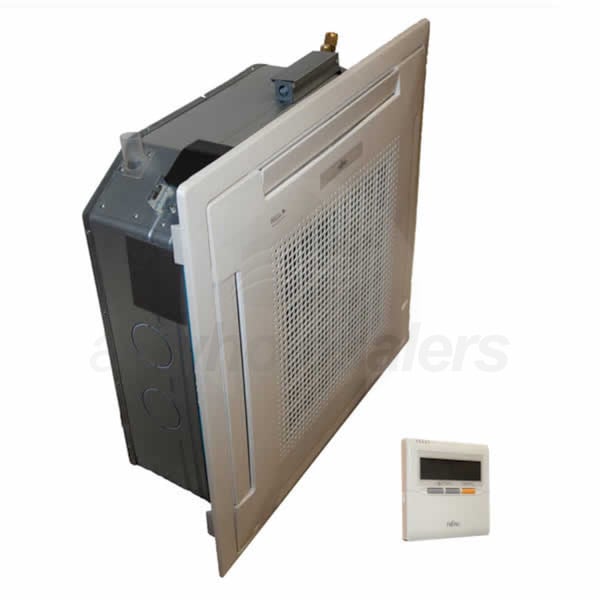

    Fujitsu - 18k BTU - Ceiling Cassette - For Single-Zone - Grille Included
    Model: AUU18RCLX
    Item Number: 65562
    Quantity: 1
Specifications
View More

Specifications

Included In This Bundle

Bundle Overviewgrey arrow icon
Bundle Overview
AOU18RLX Specifications
AUU18RCLX Specifications
General Information
Type
Ceiling Cassette
Product Line
RCLX
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
18
Outdoor Unit Size
18000 BTU
DOE Regional Compliance Learn More
Nationwide
Line Set Size
1/4" x 1/2"
Performance
Cooling BTU
18000
Cooling Capacity
17800 BTU
Heating Capacity
21000 BTU
SEER Learn More
16.0
EER Learn More
11.1
HSPF Learn More
8.5
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
0 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
216 Pounds
Shipping Weight
220 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
883703
General Information
Type
Outdoor Condenser
Product Line
RLX
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Maximum Sound Level Learn More
53 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
32 3/4 Inches
Product Width
35 1/2 Inches
Product Depth
15 3/4 Inches
Product Weight
141 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
2 Years
Compressor Warranty
6 Years
General Information
Type
Ceiling Cassette
Product Line
RCLX
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s) Learn More
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
559 CFM
Minimum Air Flow
365 CFM
Minimum Sound Level
36 dB
Maximum Sound Level Learn More
42 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
37 Inches
Product Width
37 Inches
Product Depth
9 3/4 Inches
Product Weight
75 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
