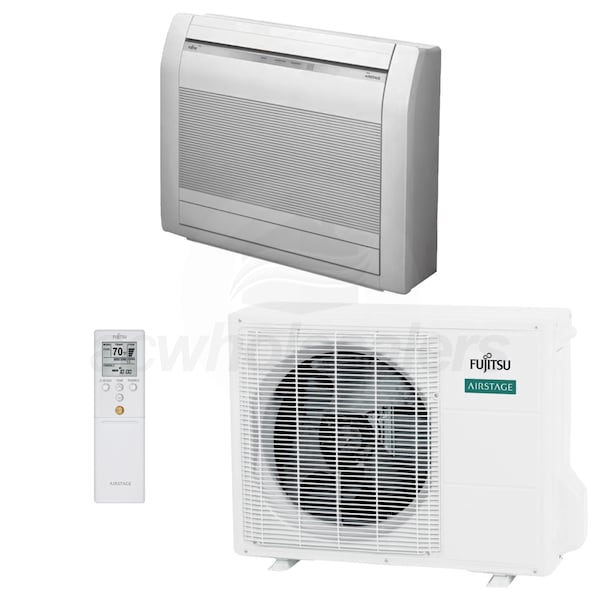

Fujitsu RLFF 15,000 BTU 20.3 SEER Floor Standing Heat Pump System

Model: 15RLFF Item Number: 93258
Ask a Question
Fujitsu 15RLFF
PREVIOUS
NEXT
Fujitsu 15RLFF
Fujitsu 15RLFF
Enlarge Image
Fujitsu 15RLFF
Fujitsu 15RLFF
View All
Our Price: $2,070.91
$346 / Month
Suggested monthly payments with 6 month financing.
Only 3 In-Stock
Ships Friday, May 14th
Fujitsu RLFF 15,000 BTU 20.3 SEER Floor Standing Heat Pump System
Fujitsu RLFF 15,000 BTU 20.3 SEER Floor Standing Heat Pump System Model: 15RLFF Item Number: 93258
$2,070.91
Only 3 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    117 Pounds Learn More
    Type
    Floor Mounted
    Product Line
    Halcyon
View More
Bundle Includes 2 items

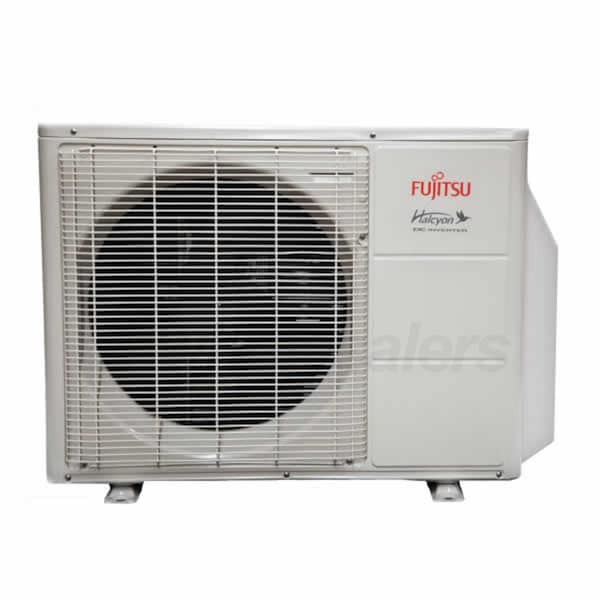

  • (1) Fujitsu 15,000 BTU 20.3 SEER Ductless Heat Pump Condenser (AOU15RLFF)
  • (1) Fujitsu 15,000 BTU Ductless Floor Mounted Heat Pump Air Handler (AGU15RLF)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

Overview for Fujitsu 15RLFF

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 15RLFF floor standing mini split system. The indoor unit has a sleek, modern design with two airflow vents to effectively warm or cool the entire room. This system has an array of effective operating modes that allow you to customize operations to suit your comfort. The Fujitsu 15RLFF is a powerful, efficient addition to any home or business.
  • Product Features
  • Auto Changeover
  • 24 hr. Timer
  • Auto Louver
  • Minimum Heat Mode
  • Auto Restart
  • Wireless Remote Control
  • Powerful Mode
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 2 items
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overview
    Bundle Overview
    AOU15RLFF Specifications
    AGU15RLF Specifications
    General Information
    Type
    Floor Mounted
    Product Line
    Halcyon
    Operating Mode Learn More
    Heating and Cooling
    Number of Zones Learn More
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    15
    Outdoor Unit Size
    15000 BTU
    Line Set Size
    1/4" x 1/2"
    Performance
    Cooling BTU
    15000
    Cooling Capacity
    15000 BTU
    Heating Capacity
    18000 BTU
    SEER Learn More
    20.3
    EER Learn More
    12.5
    HSPF Learn More
    11.2
    Minimum Operating Temperature
    -5 F
    Maximum Operating Temperature
    14 F
    Minimum Outdoor Temperature for Heating Learn More
    -5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    13.8 Amps
    Recommended Breaker Size
    20 Amps
    Dimensions
    Suction Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Weight
    117 Pounds
    Shipping Weight
    132 Pounds
    Certifications
    Energy Star Listed
    Yes
    ETL Listed
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
    Compressor Warranty
    10 Limited Years
    General Information
    Type
    Outdoor Condenser
    Product Line
    RLFF
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    15000
    Maximum Sound Level Learn More
    54 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    -5 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    20 Amps
    Dimensions
    Maximum Line Length
    66 Feet
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    24 1/2 Inches
    Product Width
    31 1/12 Inches
    Product Depth
    11 1/3 Inches
    Product Weight
    86 Pounds
    Shipping Height
    28 1/16 Inches
    Shipping Width
    37 3/16 Inches
    Shipping Depth
    15 9/16 Inches
    Shipping Weight
    93 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Floor Mounted
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wireless
    Indoor Unit Size(s) Learn More
    15
    Installation Location
    Indoor
    Performance
    Cooling BTU
    15000
    Cooling Capacity
    15000 BTU
    Maximum Air Flow
    383 CFM
    Minimum Air Flow
    159 CFM
    Minimum Sound Level
    22 dB
    Maximum Sound Level Learn More
    44 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    23 5/8 Inches
    Product Width
    29 1/8 Inches
    Product Depth
    7 7/8 Inches
    Product Weight
    31 Pounds
    Shipping Height
    27 9/16 Inches
    Shipping Width
    32 5/16 Inches
    Shipping Depth
    12 3/16 Inches
    Shipping Weight
    37 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Reviews
    View More

    Reviews

    Do You Own This Product?

    Give us your opinion on this product and help any future buyer's make an informed decision.

    Product Q&A
    View More

    Product Q&A

    Be the first to ask a question.

    Whether it's a general or technical question ACWholesalers can help. Our customer service team is backed by years of experience so you can have confidence knowing that you'll be getting an insightful response.
