Fujitsu - 12k BTU Cooling + Heating - Compact Ceiling Cassette Air Conditioning System - 21.9 SEER

Model: 12RLFCC Item Number: 65838
Ask a Question
Fujitsu 12RLFCC
PREVIOUS
NEXT
Fujitsu 12RLFCC
Fujitsu 12RLFCC
Fujitsu 12RLFCC
Fujitsu 12RLFCC
Fujitsu 12RLFCC
Enlarge Image
Fujitsu 12RLFCC
Fujitsu 12RLFCC
Fujitsu 12RLFCC
Fujitsu 12RLFCC
Fujitsu 12RLFCC
View All
Our Price: $2,023.91
synchrony card icon
$338 / Month
Suggested monthly payments with 6 month financing.
Ships in 3-4 Weeks
Fujitsu - 12k BTU Cooling + Heating - Compact Ceiling Cassette Air Conditioning System - 21.9 SEER
Fujitsu - 12k BTU Cooling + Heating - Compact Ceiling Cassette Air Conditioning System - 21.9 SEER Model: 12RLFCC Item Number: 65838
$2,023.91
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Truck Icon
Free Lift Gate Learn More
Specification Highlights
    Condition
    New Learn More
    Weight
    119 Pounds Learn More
    Type
    Ceiling Cassette
    Product Line
    Halcyon
View More
Bundle Includes 3 items
  • product image
    (1) Fujitsu - 12k BTU - RLFC Outdoor Condenser - Single Zone Only (AOU12RLFC)
  • product image
    (1) Fujitsu - 12k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (AUU12RLF-NOGRILLE)
  • product image
    (1) Fujitsu Halcyon HFI - Ceiling Cassette Grille (UTG-CCGFG)
View Full Bundle
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features & Bundle Details
View More

Features & Bundle Details

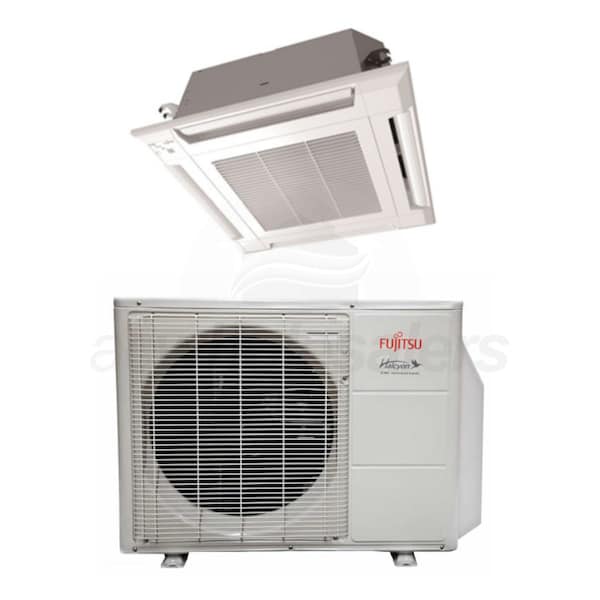

Overview for Fujitsu 12RLFCC

Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 12RLFCC ceiling cassette mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the 12RLFCC mini split system is a reliable and efficient choice. The compact ceiling cassette unit mounts easily in your ceiling, allowing you to install the unit at the center of your zone for ideal airflow coverage. This system has an array of effective operating modes that allow you to customize operations to suit your comfort. The Fujitsu 12RLFCC is a low-profile addition to any home or business.
  • Product Features
  • Auto Changeover
  • 24 hr. Timer
  • Auto Louver: Up/Down
  • Minimum Heat Mode
  • Wireless Remote Control
  • Auto Restart
  • Economy Mode
  • Auto Fan Mode
  • Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
    Bundle Includes 3 items
    • product kit image
      Fujitsu - 12k BTU - RLFC Outdoor Condenser - Single Zone Only
      Model: AOU12RLFC
      Item Number: 65791
      Quantity: 1
    • product kit image
      Fujitsu - 12k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately
      Model: AUU12RLF-NOGRILLE
      Item Number: 65395
      Quantity: 1
    • product kit image
      Fujitsu Halcyon HFI - Ceiling Cassette Grille
      Model: UTG-CCGFG
      Item Number: 99249
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    Bundle Overview
    AOU12RLFC Specifications
    AUU12RLF-NOGRILLE Specifications
    UTG-CCGFG Specifications
    General Information
    Type
    Ceiling Cassette
    Product Line
    Halcyon
    Operating Mode Learn More
    Heating and Cooling
    Number of Zones Learn More
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    12
    Outdoor Unit Size
    12000 BTU
    Line Set Size
    1/4" x 3/8"
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Heating Capacity
    16000 BTU
    SEER Learn More
    21.9
    EER Learn More
    12.8
    HSPF Learn More
    12.2
    Minimum Operating Temperature
    -5 F
    Maximum Operating Temperature
    14 F
    Minimum Outdoor Temperature for Heating Learn More
    -5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    13.4 Amps
    Recommended Breaker Size
    15 Amps
    Dimensions
    Suction Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Weight
    119 Pounds
    Shipping Weight
    230 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Warranty Learn More
    5 Years
    Compressor Warranty
    10 Limited Years
    General Information
    Type
    Outdoor Condenser
    Product Line
    RLFC
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    12000
    Maximum Sound Level Learn More
    50 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    -5 F
    Minimum Outdoor Temperature for Cooling
    14 F
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    15 Amps
    Dimensions
    Maximum Line Length
    66 Feet
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    24 1/2 Inches
    Product Width
    31 1/12 Inches
    Product Depth
    11 1/3 Inches
    Product Weight
    86 Pounds
    Shipping Height
    28 1/16 Inches
    Shipping Width
    37 3/16 Inches
    Shipping Depth
    15 9/16 Inches
    Shipping Weight
    93 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    Halcyon HFI
    Operating Mode Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wired
    Indoor Unit Size(s) Learn More
    12
    Installation Location
    Indoor
    Performance
    Cooling BTU
    12000
    Cooling Capacity
    12000 BTU
    Maximum Air Flow
    359 CFM
    Minimum Air Flow
    241 CFM
    Minimum Sound Level
    28 dB
    Maximum Sound Level Learn More
    37 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    9 5/8 Inches
    Product Width
    22 7/16 Inches
    Product Depth
    22 7/16 Inches
    Product Weight
    33 Pounds
    Shipping Height
    10 7/16 Inches
    Shipping Width
    28 3/4 Inches
    Shipping Depth
    24 5/8 Inches
    Shipping Weight
    40 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    5 Years
    General Information
    Type
    Grille
    Dimensions
    Product Height
    1 15/16 Inches
    Product Width
    24 7/16 Inches
    Product Depth
    24 7/16 Inches
    Product Weight
    10 Pounds
    Shipping Height
    4 3/4 Inches
    Shipping Width
    30 1/8 Inches
    Shipping Depth
    28 3/4 Inches
    Shipping Weight
    10 Pounds
