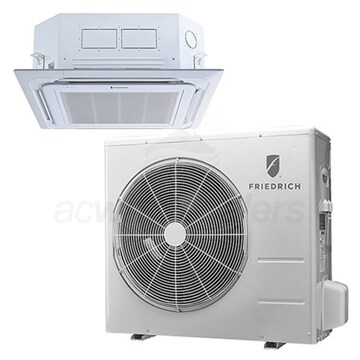

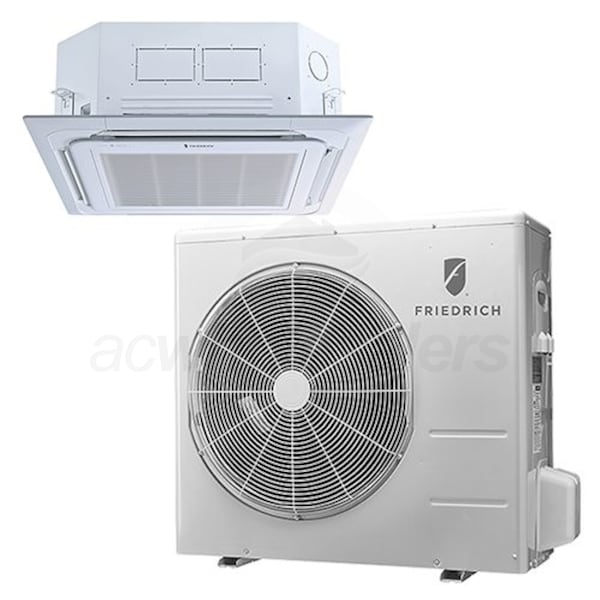

Friedrich C24YJ 24,000 BTU 17 SEER Ceiling Cassette Heat Pump System

Model: C24YJ Item Number: 85740
Friedrich C24YJ
PREVIOUS
NEXT
Friedrich C24YJ
Friedrich C24YJ
Friedrich C24YJ
Friedrich C24YJ
Friedrich C24YJ
Enlarge Image
Friedrich C24YJ
Friedrich C24YJ
Watch Video
Friedrich C24YJ
Watch Video
Friedrich C24YJ
Friedrich C24YJ
Friedrich C24YJ
Friedrich C24YJ
View All
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    257 Pounds Learn More
    257 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    Ceiling Cassette
    Product Line
    J Series
Bundle Includes 3 items
  • product image
    (1) Friedrich 24,000 BTU 17 SEER Ductless Heat Pump Condenser (MR24UY3J)
  • product image
    (1) Friedrich 24,000 BTU 17 SEER Ceiling Cassette Heat Pump Air Handler (MC24Y3J)
  • product image
    (1) Friedrich Decorative Grille for 24,000 & 36,000 BTU Ductless Cassettes (DCG2436)
Features & Bundle Details
View More

Features & Bundle Details

Overview for Friedrich C24YJ

Overview For Friedrich C24YJFriedrich air conditioners are hard-working and hard-wearing. Friedrich commercial-grade products are the first choice for tough environments, from oil rigs to the Kennedy Space Center. Constructed from the highest-quality materials and components, these units are built to exacting standards - yet they are among the quietest and most energy-efficient available.
Product Note
This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
  • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
  • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
  • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
  • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
  • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
  • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
  • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Bundle Includes 3 items
    • product kit image
      Friedrich 24,000 BTU 17 SEER Ductless Heat Pump Condenser
      Model: MR24UY3J
      Item Number: 83991
      Quantity: 1
    • product kit image
      Friedrich 24,000 BTU 17 SEER Ceiling Cassette Heat Pump Air Handler
      Model: MC24Y3J
      Item Number: 83982
      Quantity: 1
    • product kit image
      Friedrich Decorative Grille for 24,000 & 36,000 BTU Ductless Cassettes
      Model: DCG2436
      Item Number: 83979
      Quantity: 1
    Specifications
    View More

    Specifications

    Included In This Bundle

    Bundle Overviewgrey arrow icon
    General Information
    Type
    Ceiling Cassette
    Product Line
    J Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Line Set Size
    3/8" x 5/8"
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Heating Capacity
    24000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    19.0
    HSPF Learn More
    HSPF
    HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system.
    9.7
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Dimensions
    Product Weight
    257 Pounds
    Shipping Weight
    257 Pounds
    General Information
    Type
    Outdoor Condenser
    Product Line
    J-Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Performance
    Cooling BTU
    24000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    62 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    30 Amps
    Dimensions
    Maximum Line Length
    164 Feet
    Gas Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    32 7/8 Inches
    Product Width
    37 7/16 Inches
    Product Depth
    13 Inches
    Product Weight
    132 Pounds
    Shipping Weight
    142 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Ceiling Cassette
    Product Line
    J Series
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements.
    Heating and Cooling
    Number of Zones Learn More
    Number of Zones
    A zone is a room or area within a building that has its own temperature control.
    1
    Maximum Number of Zones
    1
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    24
    Installation Location
    Indoor
    Branch Box Required Learn More
    Branch Box Required
    By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units.
    No
    Color
    Gray
    Line Set Size
    Outdoor
    Performance
    Cooling BTU
    24000
    Cooling Capacity
    24000 BTU
    Heating Capacity
    24000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system.
    24.0
    Cooling Power Input
    1910 Watts
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
    62 dB
    Low Ambient Heating
    Yes
    Minimum Outdoor Temperature for Heating Learn More
    Minimum Outdoor Temperature for Heating
    This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures.
    -4 F
    Minimum Outdoor Temperature for Cooling
    5 F
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    18.1 Amps
    Recommended Breaker Size
    25 Amps
    Dimensions
    Maximum Line Length
    164 Feet
    Line Set A Liquid Connection
    3/8 Inch
    Line Set A Gas Connection
    5/8 Inch
    Product Height
    8 1/16 Inches
    Product Width
    33 1/16 Inches
    Product Depth
    33 1/16 Inches
    Product Weight
    132 Pounds
    Shipping Weight
    146 Pounds
    Certifications
    ETL Listed
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab.
    5 Years
    Compressor Warranty
    7 Years
    General Information
    Type
    Grille
