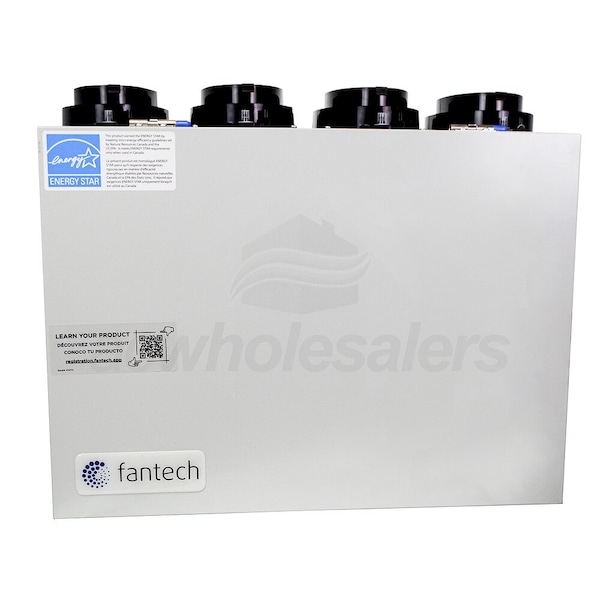

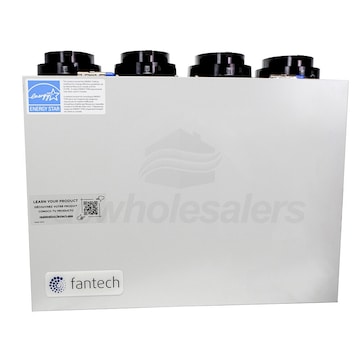

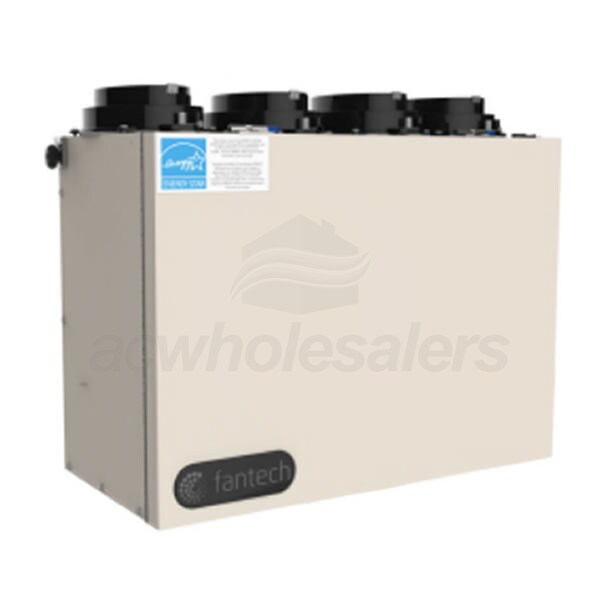

Fantech VHR 70 CFM Heat Recovery Ventilator HRV Top Ports 5" Duct

Model: VHR70R-ES Item Number: 80567
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fantech VHR70R-ES
PREVIOUS
NEXT
Fantech VHR70R-ES
Enlarge Image
Our Price: $728.00
synchrony card icon
$122 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Only 1 In-Stock
Ships Monday, April 29th
Shipping to60601
Fantech VHR 70 CFM Heat Recovery Ventilator HRV Top Ports 5
Fantech VHR 70 CFM Heat Recovery Ventilator HRV Top Ports 5" Duct Model: VHR70R-ES Item Number: 80567
$728.00
Only 1 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    30.9 Pounds Learn More
    30.9 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Heat Recovery Ventilators (HRVs)
    UPC
    650737632656
View More
Air Flow (CFM)
Select Attribute
Defrost Cycle
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech VHR70R-ES

The Fantech VHR70R-ES Heat Recovery Ventilator (HRV) is a 81 CFM heat recovery ventilator with top ports defrost capabilities. The VHR70R-ES is a 120 volt unit designed with 4 ports with 5" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size makes this HRV easy to mount. The VHR70R-ES Heat Recovery Ventilator (HRV) features an aluminum core, washable electrostatic filters and internal recirculation defrost.
  • Heat Recovery Core
  • An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
  • Winter Guard
  • A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.
  • Controls
  • An External rocker switch featuring three positions (Low/Stand By/Medium) that allows for simple control of air flow.
  • Washable Electrostatic Filters
  • Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
  • Product Includes
  • VHR70R-ES Heat Recovery Ventilator (HRV)
  • Mounting Bracket
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Heat Recovery Ventilators (HRVs)
    UPC
    650737632656
    General Information
    Type
    HRV
    Product Line
    VHR
    Product Category
    Heat Recovery Ventilators (HRVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Recirculation
    Ports Quantity
    4
    Port Location
    Top
    Performance
    Maximum Air Flow
    89 CFM
    Apparent Sensible Effectiveness
    70 %
    Minimum Air Flow
    51 CFM
    Sensible Recovery Efficiency
    63 %
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    5 Inches
    Product Height
    17 3/16 Inches
    Product Width
    22 1/2 Inches
    Product Depth
    10 5/24 Inches
    Product Weight
    30.9 Pounds
    Shipping Width
    13 Inches
    Shipping Height
    21 Inches
    Shipping Depth
    24 Inches
    Shipping Weight
    32 Pounds
    Certifications
    CSA Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Motor Warranty
    7 Years
