Fantech VHR 159 CFM Heat Recovery Ventilator HRV Top Ports 6" Duct

Model: VHR150R Item Number: 62560
Fantech VHR150R
PREVIOUS
NEXT
Fantech VHR150R
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    44 Pounds Learn More
    44 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    HRV
    Product Line
    VHR
Air Flow (CFM)
Select Attribute
Defrost Cycle
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech VHR150R

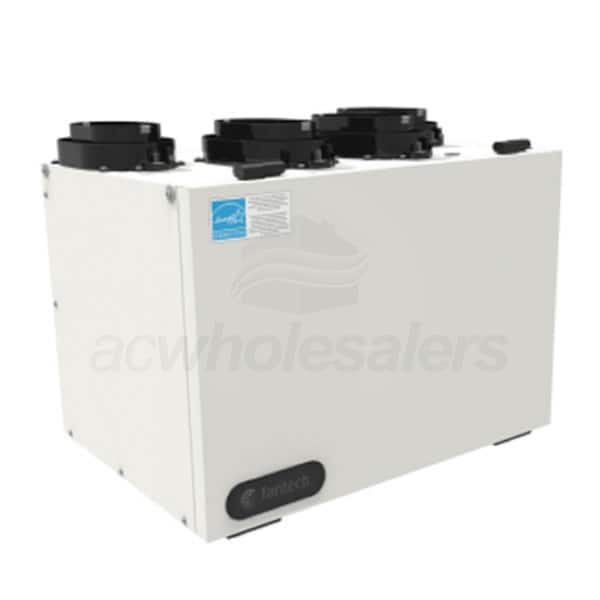

The Fantech VHR150R Heat Recovery Ventilator (HRV) is a 159 CFM heat recovery ventilator with top ports exhaust defrost capabilities. The VHR150R is a 120 volt unit designed with 4 ports with 6" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size makes this HRV easy to mount. The VHR150R Heat Recovery Ventilator (HRV) features an aluminum core, washable electrostatic filters and internal recirculation defrost.
  • Heat Recovery Core
  • An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
  • Winter Guard
  • A built-in defrost system allows for consistent, reliable operation during the winter months.
  • Controls
  • An External rocker switch featuring three positions (Low/Stand By/Medium) that allows for simple control of air flow.
  • Washable Electrostatic Filters
  • Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
  • Product Includes
  • VHR150R Heat Recovery Ventilator (HRV)
  • Mounting Bolts
  • Specifications
    View More

    Specifications

    General Information
    Type
    HRV
    Product Line
    VHR
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Recirculation
    Ports Quantity
    4
    Port Location
    Top
    UPC
    650737992040
    Performance
    Maximum Air Flow
    184 CFM
    Apparent Sensible Effectiveness
    79 %
    Minimum Air Flow
    89 CFM
    Sensible Recovery Efficiency
    63 %
    Electrical Data
    Voltage
    120 Volts
    Power Consumption
    156 Watts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    6 Inches
    Product Height
    16 1/4 Inches
    Product Width
    23 3/4 Inches
    Product Depth
    17 3/16 Inches
    Product Weight
    44 Pounds
    Shipping Width
    23 Inches
    Shipping Height
    19 Inches
    Shipping Depth
    28 Inches
    Shipping Weight
    54 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Motor Warranty
    7 Years
