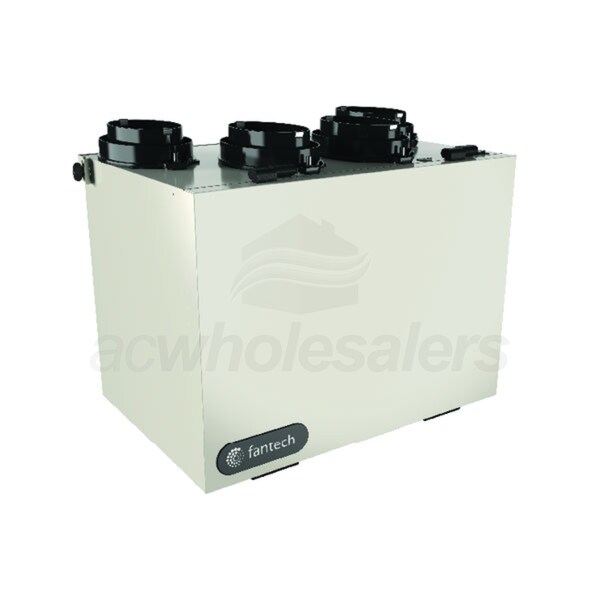

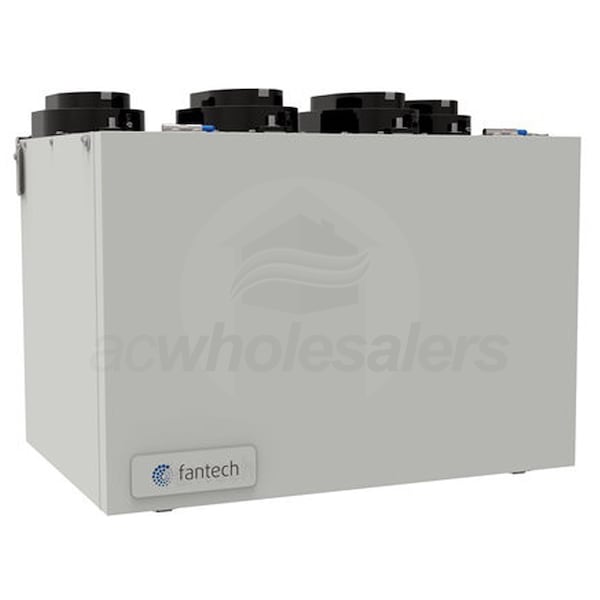

Fantech VHR 159 CFM Heat Recovery Ventilator HRV Top Ports 6" Duct

Model: VHR150 Item Number: 62624
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fantech VHR150
PREVIOUS
NEXT
Fantech VHR150
Enlarge Image
Our Price: $830.00
synchrony card icon
$139 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Factory-Direct
Ships in 4-7 Business Days
Fantech VHR 159 CFM Heat Recovery Ventilator HRV Top Ports 6
Fantech VHR 159 CFM Heat Recovery Ventilator HRV Top Ports 6" Duct Model: VHR150 Item Number: 62624
$830.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    45 Pounds Learn More
    45 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Heat Recovery Ventilators (HRVs)
    UPC
    650737992033
View More
Air Flow (CFM)
Select Attribute
Defrost Cycle
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech VHR150

The Fantech VHR150 is a 159 CFM heat recovery ventilator (HRV) with top ports and exhaust defrost capabilities. The VHR150 is a 120 volt unit designed with 4 ports designed to connect to 6" ducts. HRVs make your heating and cooling system more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The VHR150 Heat Recovery Ventilator (HRV) features an aluminum core, washable electrostatic filters and internal recirculation defrost.
  • Heat Recovery Core
  • An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
  • Winter Guard
  • A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.
  • Controls
  • An External rocker switch featuring three positions (Low/Stand By/Medium) that allows for simple control of air flow.
  • Washable Electrostatic Filters
  • Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
  • Product Includes
  • VHR150 Heat Recovery Ventilator (HRV)
  • Mounting Bolts
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Heat Recovery Ventilators (HRVs)
    UPC
    650737992033
    General Information
    Type
    HRV
    Product Line
    VHR
    Product Category
    Heat Recovery Ventilators (HRVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Exhaust
    Ports Quantity
    4
    Port Location
    Top
    Performance
    Maximum Air Flow
    186 CFM
    Apparent Sensible Effectiveness
    71 %
    Minimum Air Flow
    90 CFM
    Sensible Recovery Efficiency
    63 %
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    6 Inches
    Product Height
    16 1/4 Inches
    Product Width
    23 3/4 Inches
    Product Depth
    17 3/16 Inches
    Product Weight
    45 Pounds
    Shipping Height
    19 Inches
    Shipping Width
    28 Inches
    Shipping Depth
    23 Inches
    Shipping Weight
    55 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Motor Warranty
    7 Years
