Fantech SHR - 267 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 8" Duct - Recirculation Defrost

Model: SHR260RD Item Number: 95034
Fantech SHR260RD
PREVIOUS
NEXT
Fantech SHR260RD
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    80 Pounds Learn More
    80 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Heat Recovery Ventilators (HRVs)
    UPC
    650737992989
Features
View More

Features

Overview for Fantech SHR260RD

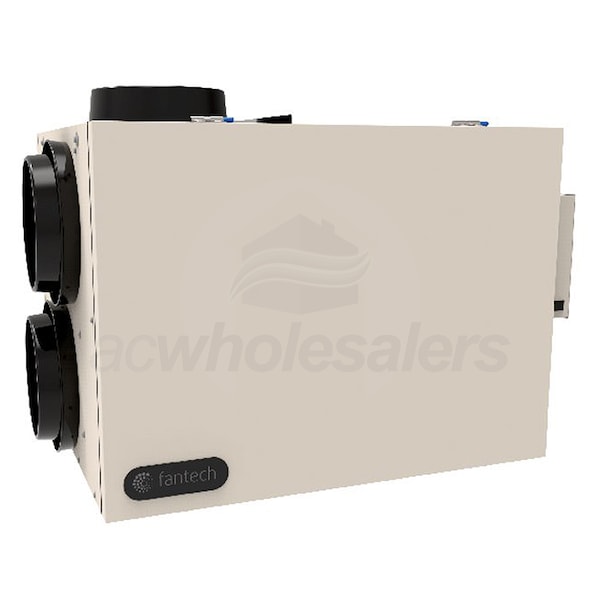

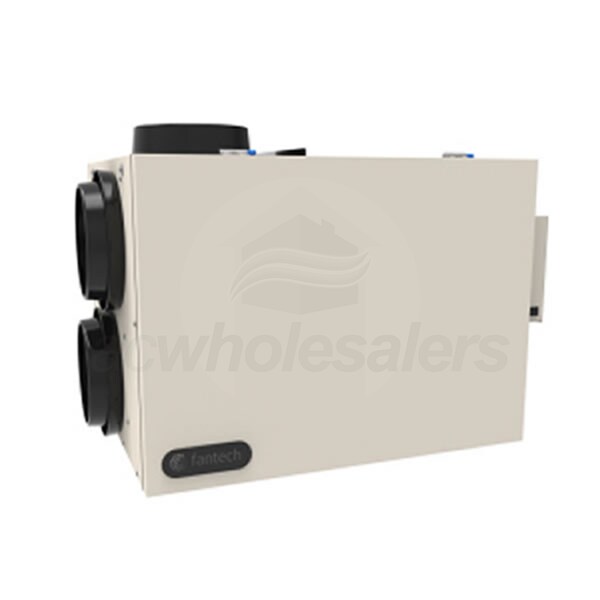

The Fantech SHR 260RD Heat Recovery Ventilator (HRV) is a 267 CFM heat recovery ventilator with side ports and recirculation defrost capabilities. The SHR 260RD is a 120 volt unit designed with 4 ports with 8" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The SHR 260RD Heat Recovery Ventilator (HRV) features an aluminum core, washable electrostatic filters and internal recirculation defrost.
  • Heat Recovery Core
  • An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
  • Winter Guard
  • A built-in recirculating defrost system allows for consistent, reliable operation during the winter months.
  • Controls
  • An External rocker switch featuring three positions (Low/Stand By/Medium) that allows for simple control of air flow.
  • Washable Electrostatic Filters
  • Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
  • Product Includes
  • SHR 260RD Heat Recovery Ventilator (HRV)
  • Mounting Bolts
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Heat Recovery Ventilators (HRVs)
    UPC
    650737992989
    General Information
    Type
    HRV
    Product Line
    SHR
    Product Category
    Heat Recovery Ventilators (HRVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Recirculation
    Ports Quantity
    4
    Port Location
    Side/Top
    Performance
    Maximum Air Flow
    309 CFM
    Apparent Sensible Effectiveness
    77 %
    Minimum Air Flow
    105 CFM
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    8 Inches
    Product Height
    20 1/2 Inches
    Product Width
    27 7/8 Inches
    Product Depth
    25 1/8 Inches
    Product Weight
    80 Pounds
    Shipping Height
    25 Inches
    Shipping Width
    26 Inches
    Shipping Length
    35 Inches
    Shipping Weight
    80 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Motor Warranty
    7 Years
