Fantech SHR - 1,219 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 20" x 8" Duct - Exhaust Defrost

Model: SHR1200 Item Number: 104759

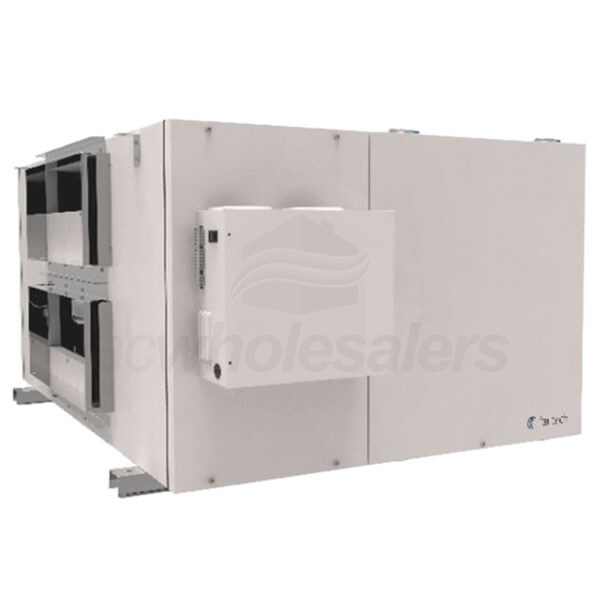

Fantech SHR1200
PREVIOUS
NEXT
Fantech SHR1200
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    240 Pounds Learn More
    240 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Heat Recovery Ventilators (HRVs)
Features
View More

Features

Overview for Fantech SHR1200

Every building needs proper ventilation to maintain the quality of the indoor air. The Fantech SHR1200 Heat Recovery Ventilator (HRV) is specifically designed for commercial applications to efficiently exchange stale indoor air for fresh outdoor air. By transferring heat between the fresh and stale air, this HRV will lead to tremendous savings on your heating and cooling bills. The SHR1200 HRV maximizes your savings with highly efficient aluminum heat exchange and washable filters.
  • Heat Recovery Core
  • An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
  • Winter Guard
  • A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.
  • Washable Electrostatic Filters
  • Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Heat Recovery Ventilators (HRVs)
    General Information
    Type
    HRV
    Product Line
    SHR
    Product Category
    Heat Recovery Ventilators (HRVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Exhaust
    Ports Quantity
    4
    Port Location
    Side
    Performance
    Maximum Air Flow
    1269 CFM
    Minimum Air Flow
    209 CFM
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    11.17 Amps
    Dimensions
    Duct Connection
    20 Inches
    Product Height
    22 Inches
    Product Width
    51 19/48 Inches
    Product Depth
    36 7/24 Inches
    Product Weight
    240 Pounds
    Shipping Width
    38 Inches
    Shipping Height
    53 Inches
    Shipping Length
    27 Inches
    Shipping Weight
    310 Pounds
    Certifications
    CSA Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
