Features
View More

Features

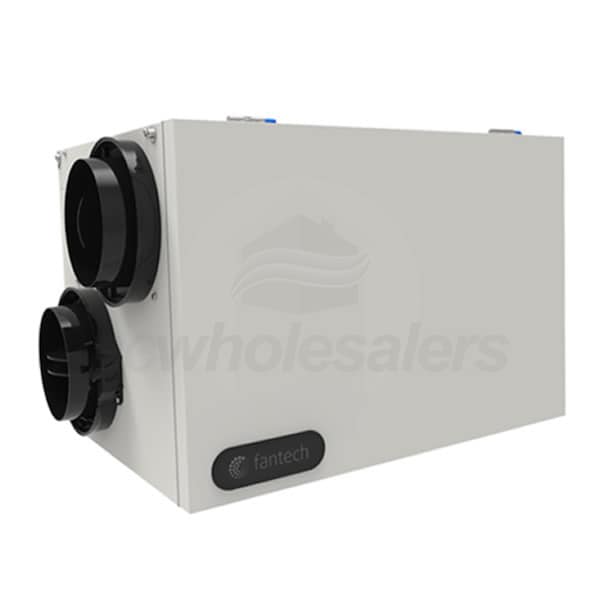

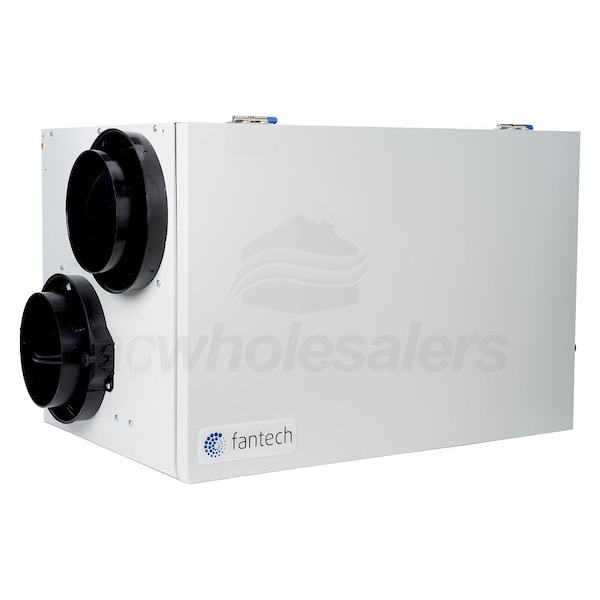

Overview for Fantech SHR 200R

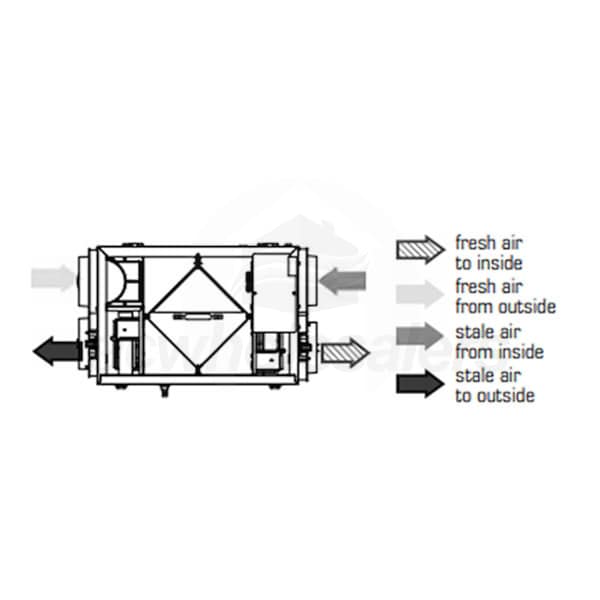

The Fantech SHR200R is a 195 CFM heat recovery ventilator (HRV) with side ports and recirculation defrost capabilities. The SHR200R is a 120-volt unit designed with 4 ports and 6" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The SHR200R features an aluminum core, washable electrostatic filters and internal recirculation defrost.
  • Heat Recovery Core
  • An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores. Fantech designs their heat recovery cores to withstand drastic temperature variations.
  • Winter Protection
  • A built-in recirculating defrost system allows for consistent, reliable operation during the winter months.
  • Controls
  • An External rocker switch featuring three positions (Low/Stand By/Medium) that allows for simple control of air flow.
  • Washable Electrostatic Filters
  • Easily washable, these filters can be used throughout the life of the SHR 200R.
  • Easy Maintenance and Service
  • An access panel on the SHR 200R allows for simple maintenance and serviceability.
  • Insulated Cabinet
  • The 24 gauge galvanized steel cabinet is insulated with 1" high density expanded polystyrene. It also has a baked power coated paint for exceptional adhesion and resistance.
  • Product Includes
  • (4) Mounting bolts
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Heat Recovery Ventilators (HRVs)
    UPC
    650737992136
    General Information
    Type
    HRV
    Product Line
    SHR
    Product Category
    Heat Recovery Ventilators (HRVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Recirculation
    Port Location
    Side
    Performance
    Maximum Air Flow
    222 CFM
    Apparent Sensible Effectiveness
    68 %
    Minimum Air Flow
    104 CFM
    Sensible Recovery Efficiency
    62 %
    Electrical Data
    Voltage
    120 Volts
    Power Consumption
    240 Watts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    2.3 Amps
    Dimensions
    Duct Connection
    6 Inches
    Product Height
    28 Inches
    Product Width
    20 1/2 Inches
    Product Depth
    17 1/4 Inches
    Product Weight
    61.7 Pounds
    Shipping Height
    26 Inches
    Shipping Width
    18 Inches
    Shipping Length
    34 Inches
    Shipping Weight
    62 Pounds
    Certifications
    Energy Star Listed
    Yes
    CSA Listed
    Yes
    HVI Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Motor Warranty
    7 Years
