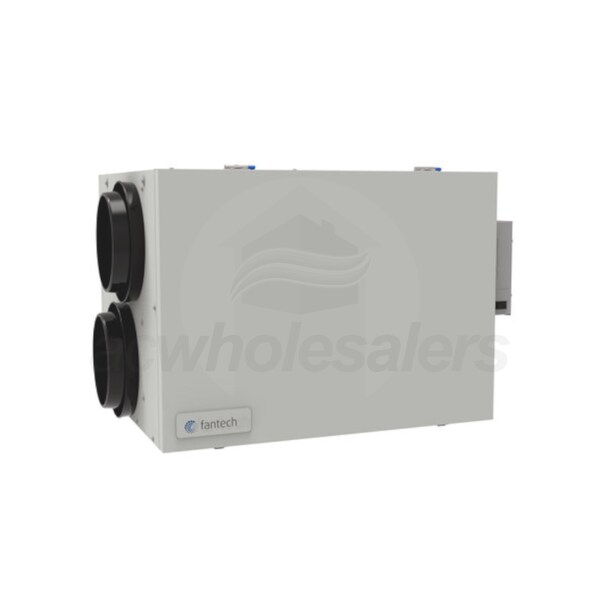

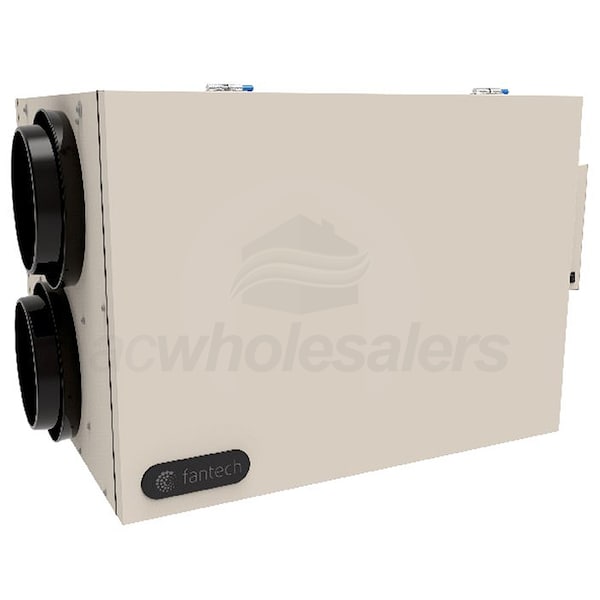

Fantech SER - 239 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 8" Duct - Exhaust

Model: SER260D Item Number: 107414
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fantech SER260D
PREVIOUS
NEXT
Fantech SER260D
Enlarge Image
Our Price: $2,031.00
synchrony card icon
$339 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Factory-Direct
Ships in 4-7 Business Days
Fantech SER - 239 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 8
Fantech SER - 239 CFM - Energy Recovery Ventilator (ERV) - Side Ports - 8" Duct - Exhaust Model: SER260D Item Number: 107414
$2,031.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    80 Pounds Learn More
    80 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Energy Recovery Ventilators (ERVs)
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech SER260D

The Fantech SER 3204D Energy Recovery Ventilator (ERV) is a 239 CFM energy recovery ventilator with side ports and exhaust defrost capabilities. The SER 260D is a 120 volt unit designed with 4 ports with 8" ducts and is suitable for very large residential or small commercial applications. ERVs make your heating and cooling systems more efficient by transferring heat and humidity between fresh and stale air during ventilation. Its compact size and wall bracket make this ERV easy to mount. The SER 260D Energy Recovery Ventilator (ERV) features an enthalpic core, washable electrostatic filters, and four factory-balanced fans.
  • Energy Recovery Core
  • Two AHRI certified cores are made from water vapor transport durable polymer membrane that is highly permeable to humidity. This core is freeze tolerant and water washable.
  • Winter Guard
  • A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.
  • Serviceability
  • The SER 260D's core, filters, fans and electrical panel can be accessed easily from access panels on either side of the unit. The core conveniently slides out with only 14" clearance.
  • Washable Electrostatic Filters
  • Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Energy Recovery Ventilators (ERVs)
    General Information
    Type
    ERV
    Product Line
    SER
    Product Category
    Energy Recovery Ventilators (ERVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Exhaust
    Ports Quantity
    4
    Port Location
    Side
    Performance
    Maximum Air Flow
    239 CFM
    Apparent Sensible Effectiveness
    73 %
    Minimum Air Flow
    94 CFM
    Total Recovery Efficiency
    54 %
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    8 Inches
    Product Height
    20 1/2 Inches
    Product Width
    27 7/8 Inches
    Product Depth
    25 1/4 Inches
    Product Weight
    80 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Motor Warranty
    7 Years
