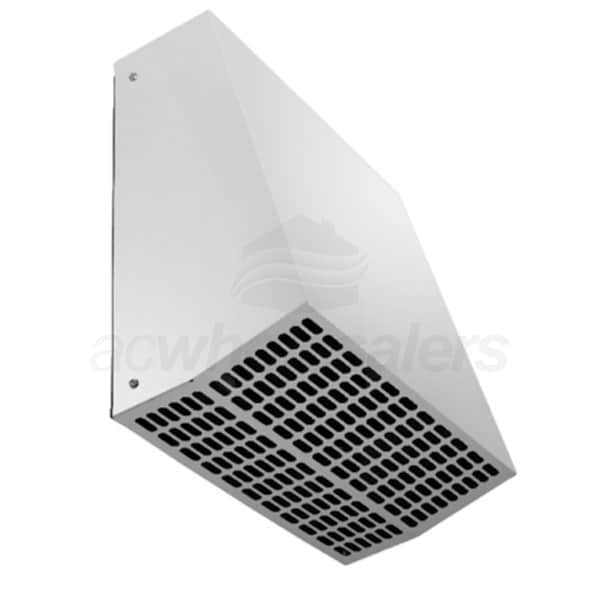

Fantech EC Exterior Wall Mount 6 inch Centrifugal Duct Fan 410 CFM

Model: RVF6XLEC Item Number: 62590
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fantech RVF6XLEC
PREVIOUS
NEXT
Fantech RVF6XLEC
Enlarge Image
Our Price: $394.00
synchrony card icon
$66 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Only 1 In-Stock
Ships Monday, April 29th
Shipping to60601
Fantech EC Exterior Wall Mount 6 inch Centrifugal Duct Fan 410 CFM
Fantech EC Exterior Wall Mount 6 inch Centrifugal Duct Fan 410 CFM Model: RVF6XLEC Item Number: 62590
$394.00
Only 1 In-Stock
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    17 Pounds Learn More
    17 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    650737448615
View More
Max Air Flow (CFM)
Select Attribute
Features
View More

Features

Overview for Fantech RVF6XLEC

Featuring a galvanized steel housing, the Fantech RVF6XLEC Centrifugal Exterior Duct Fan is the perfect solution for direct through-wall ventilation where quiet operation is required in residential or commercial applications. RVF fan motors mount to the outside wall of the building limiting noise from operation. This 120 volt model can produce a maximum airflow of up to 409 CFM. The RVF6XLEC is constructed with a 6" round duct.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • Quiet Operation
  • By having the ability to be installed outdoors, all of the ambient noise is kept outside.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction. A pre-wired speed control potentiometer is included to control the EC motor for the most efficient solution for your needs.
  • Easy Inspection
  • By being located on an outside wall, you have easy access to the fan. This unit comes with a removable housing for immediate access to the motor and wiring.
  • High Efficiency Motor
  • The RVF6XLEC features a high efficiency EC motor that both reduces energy consumption and also provides 100% speed control.
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737448615
    General Information
    Type
    Exterior Duct Fan
    Product Line
    RVF
    Product Category
    Fans
    Mount Type
    Wall
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    409 CFM
    Electrical Data
    Voltage
    120 Volts
    Power Consumption
    69.2 Watts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    6 Inches
    Product Height
    17 Inches
    Product Width
    14 1/4 Inches
    Product Length
    8 Inches
    Product Weight
    17 Pounds
    Shipping Width
    16 Inches
    Shipping Height
    19 Inches
    Shipping Depth
    12 Inches
    Shipping Weight
    20 Pounds
    Certifications
    UL Listed
    Yes
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
