Fantech Roof Mount 6 inch Centrifugal Duct Fan 227 CFM

Model: RE6 Item Number: 31251
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fantech RE6
PREVIOUS
NEXT
Fantech RE6
Enlarge Image
Our Price: $299.00
synchrony card icon
$50 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Only 1 In-Stock
Ships Wednesday, April 24th
Shipping to60601
Fantech Roof Mount 6 inch Centrifugal Duct Fan 227 CFM
Fantech Roof Mount 6 inch Centrifugal Duct Fan 227 CFM Model: RE6 Item Number: 31251
$299.00
Only 1 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    14 Pounds Learn More
    14 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    650737420604
View More
Mount Type
Select Attribute
Max Air Flow (CFM)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech RE6

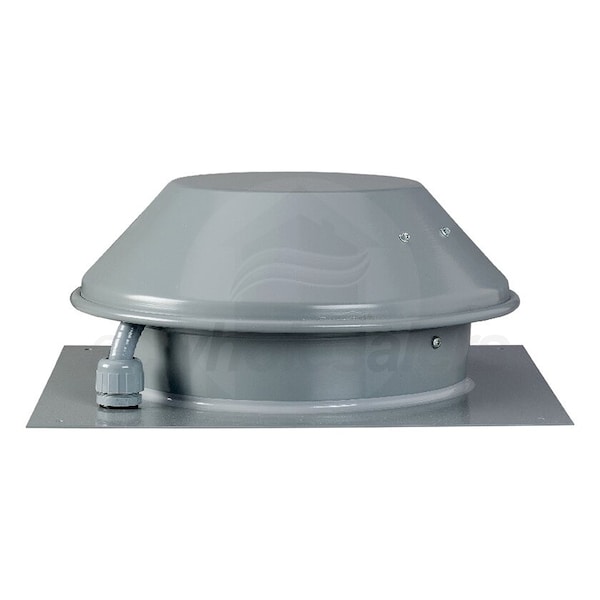

Featuring a galvanized steel housing, the Fantech RE 6 Centrifugal Exterior Duct Fan is the perfect solution for direct through-ceiling ventilation with quiet operation. This 115 volt model can produce a maximum airflow of up to 227 CFM. The RE 6 is constructed with a 6" round duct. RE Series fans are designed for residential use. RE fan motors mount on flat or pitched rooftops and can operate with air temperatures up to 140 degrees Fahrenheit. RE models are designed with a flat base for direct flashing to the roof.
  • Permanently Lubricated Sealed Ball Bearings
  • Permanently lubricated sealed ball bearings extend the service life of your fan.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737420604
    General Information
    Type
    Exterior Duct Fan
    Product Line
    RE
    Product Category
    Fans
    Mount Type
    Roof
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    227 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    7.5 Sones
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    0.8 Amps
    Dimensions
    Duct Connection
    6 Inches
    Product Height
    6 1/4 Inches
    Product Width
    15 1/2 Inches
    Product Length
    15 1/2 Inches
    Product Weight
    14 Pounds
    Shipping Height
    14 Inches
    Shipping Width
    20 Inches
    Shipping Length
    20 Inches
    Shipping Weight
    14 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
