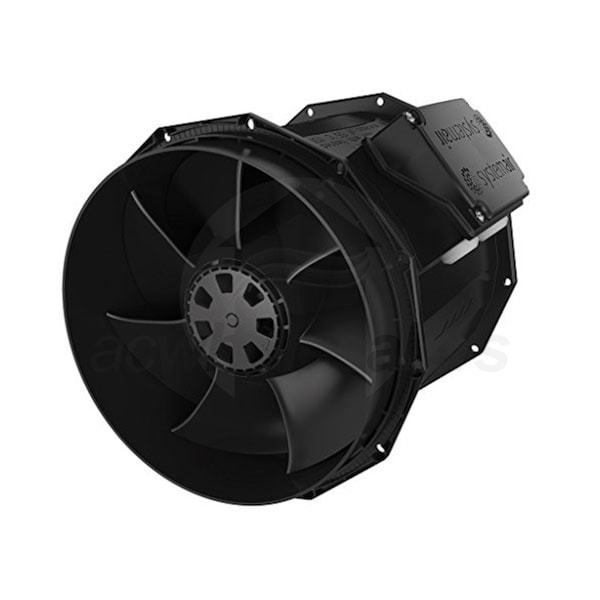

Fantech 8 inch EC Inline Mixed Flow Duct Fan 791 CFM 115/1/60

Model: PRIOAIR8EC Item Number: 62600
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fantech PRIOAIR8EC
PREVIOUS
NEXT
Fantech PRIOAIR8EC
Enlarge Image
Not For Individual Sale
Try This Instead
View Fantech FG EC 805 CFM Inline Duct Fan 12
Model:
FG12XLEC
$644.00
8 In-Stock
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    7.5 Pounds Learn More
    7.5 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    650737493165
View More
Duct Diameter
Select Attribute
Efficiency
Select Attribute
Features
View More

Features

Overview for Fantech PRIOAIR8EC

The prioAir8EC inline duct fan pairs a revolutionary impeller design with a high efficiency EC motor to deliver high air flow with low power consumption. You can save even more by using the included speed control to exactly match your air flow requirements, or use an external 0-10Vdc l to adjust the fan speed on demand. combining these features with a speed output that can be used to monitor fan operation, means the prioAir8EC is the perfect fan for any smart home or office.
  • Advanced impeller design
  • The aerodynamically optimized impeller in the prioAir8EC provides powerful quiet airflow with excellent efficiency.
  • Air tight casing
  • The prioAir8EC features an air tight composite casing that ensures your air goes where you want it to go. The casing is also light weight and corrosion proof to provide excellent installation flexibility.
  • BMS Ready
  • The prioAir8EC is controllable via a 0-10 Vdc signal and sends a 10V speed output to make integration with a building management system a breeze.
  • High Efficency Motor
  • The prioAir8EC features a high efficiency EC motor that both reduces energy consumption and also provides 100% speed control.
  • Product Includes
  • PrioAir8EC Inline Duct Fan
  • Mounting Hardware
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737493165
    General Information
    Type
    Duct Fan
    Product Line
    PrioAir
    Product Category
    Fans
    Mount Type
    Inline
    Performance
    Maximum Air Flow
    790 CFM
    Electrical Data
    Voltage
    120 Volts
    Power Consumption
    123 Watts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    8 Inches
    Product Height
    9 Inches
    Product Width
    9 3/4 Inches
    Product Length
    9 7/8 Inches
    Product Weight
    7.5 Pounds
    Shipping Height
    12 Inches
    Shipping Width
    10 Inches
    Shipping Depth
    10 Inches
    Shipping Weight
    8 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Warranty Learn More
    Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab.
    1 Year
