Fantech HERO - 173 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6" Duct - Recirculation Defrost

Model: HERO 150H-EC Item Number: 99368

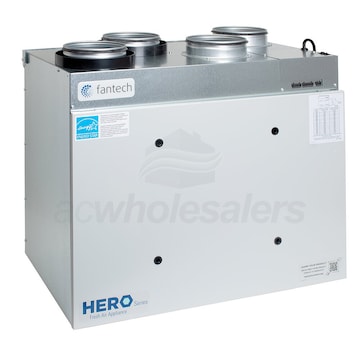

Fantech HERO 150H-EC
PREVIOUS
NEXT
Fantech HERO 150H-EC
Enlarge Image
Our Price: $1,320.00
synchrony card icon
$220 / Month
Suggested monthly payments with 6 month financing.
Factory-Direct
Ships in 7-14 Business Days
Fantech HERO - 173 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6
Fantech HERO - 173 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 6" Duct - Recirculation Defrost Model: HERO 150H-EC Item Number: 99368
$1,320.00
Factory-Direct
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    50.9 Pounds Learn More
    50.9 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Heat Recovery Ventilators (HRVs)
Max Air Flow (CFM)
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech HERO 150H-EC

The Fantech HERO 150H-EC Heat Recovery Ventilator (HRV) is a 173 CFM heat recovery ventilator with top ports and recirculation defrost capabilities. The HERO 150H-EC is a 120 volt unit designed with 4 ports with 6" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The HERO 150H-EC Heat Recovery Ventilator (HRV) features a counterflow core, washable electrostatic filters and an EC motor.
  • Exceptional Efficiency
  • The Fantech HERO is capable of extracting up to 82% of the heat from the air exiting your home, which is then used to temper the fresh air coming in. With efficiency like that, the Fantech HERO will be your hero!
  • Healthier Home
  • Without proper ventilation, you are subject to indoor air pollutants like chemical products, pet dander or building materials. With an HRV, your home will be ventilated up to 20 times per day, making for a healthier home.
  • EC Motor
  • With integrated electronic controls, energy savings are ensurred no matter the airflow demands with an ECM. Less heat is created with an EC motor, resulting in less maintenance and longer life span.
  • Winterguard™
  • A built-in recirculating defrost system allows for consistent, reliable operation during the winter months.
  • Washable Electrostatic Filters
  • Easily washable, these filters can be used throughout the life of the HERO. With the integrated MERV 8 filter, you will have exceptional filtration.
  • Easy Maintenance and Service
  • An access panel on the HERO allows for simple maintenance and serviceability. The core easily slides out with a 12" clearance for additional service ease.
  • Insulated Cabinet
  • The 24 gauge galvanized steel cabinet is insulated with 3/4" high density expanded polystyrene.
  • Product Includes
  • HERO 150H-EC HRV
  • Wall Mounting Speed Bracket
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Heat Recovery Ventilators (HRVs)
    General Information
    Type
    HRV
    Product Line
    HERO
    Product Category
    Heat Recovery Ventilators (HRVs)
    Defrost Type Learn More
    Defrost Type
    ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
    Recirculation
    Ports Quantity
    4
    Port Location
    Top
    Performance
    Maximum Air Flow
    173 CFM
    Apparent Sensible Effectiveness
    88 %
    Sensible Recovery Efficiency
    82 %
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    6 Inches
    Product Height
    24 7/8 Inches
    Product Width
    27 7/8 Inches
    Product Depth
    13 3/8 Inches
    Product Weight
    50.9 Pounds
    Shipping Height
    24 7/8 Inches
    Shipping Width
    27 7/8 Inches
    Shipping Length
    13 3/8 Inches
    Shipping Weight
    58 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Motor Warranty
    7 Years
