Fantech 7170 CFM 26" Duct Square Centrifugal Mixed Flow Inline Fan

Model: FSD26 Item Number: 31197
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fantech FSD26
PREVIOUS
NEXT
Fantech FSD26
Enlarge Image
Our Price: $2,928.00
synchrony card icon
$52 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Click for important monthly payment and offer information.
Backordered
Estimated Availability June 03, 2024
Shipping to60601
Fantech 7170 CFM 26
Fantech 7170 CFM 26" Duct Square Centrifugal Mixed Flow Inline Fan Model: FSD26 Item Number: 31197
$2,928.00
Backordered
-
+
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    134 Pounds Learn More
    134 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    650737132606
View More
Duct Diameter
Select Attribute
Features
View More

Features

Overview for Fantech FSD26

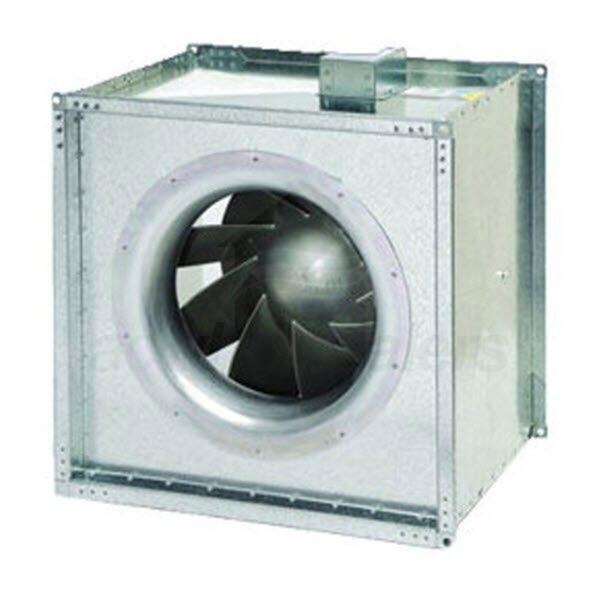

The Fantech FSD 26 Square Inline Duct Fan is a 6,993 CFM centrifugal supply and exhaust fan designed to provide high airflow with backward curved impellers. It is constructed for 26 inch square venting. FSD Series Duct Fans can install directly within equally sized square ductwork without the need for transitions. This unit is wired for 208/460 volts.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737132606
    General Information
    Type
    Duct Fan
    Product Line
    FSD
    Product Category
    Fans
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    6993 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    27 Sones
    Electrical Data
    Phase
    3
    Frequency
    60 Hz
    Current Draw
    3.82 Amps
    Dimensions
    Duct Connection
    26 Inches
    Product Height
    26 Inches
    Product Width
    26 Inches
    Product Length
    20 Inches
    Product Weight
    134 Pounds
    Shipping Height
    24 Inches
    Shipping Width
    35 Inches
    Shipping Length
    35 Inches
    Shipping Weight
    134 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
