Overview for Fantech FSD20

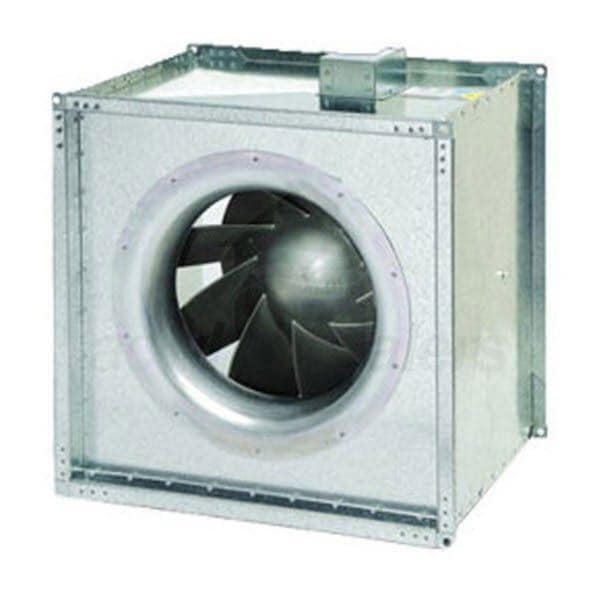

The Fantech FSD 20 Square Inline Duct Fan is a 3,225 CFM centrifugal supply and exhaust fan designed to provide high airflow with backward curved impellers. It is constructed for 20 inch square venting. FSD Series Duct Fans can install directly within equally sized square ductwork without the need for transitions. This unit is wired for 115 volts.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737132002
    General Information
    Type
    Duct Fan
    Product Line
    FSD
    Product Category
    Fans
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    3225 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    14.1 Sones
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    6.36 Amps
    Dimensions
    Duct Connection
    20 Inches
    Product Height
    19 3/4 Inches
    Product Width
    19 3/4 Inches
    Product Length
    17 3/4 Inches
    Product Weight
    81 Pounds
    Shipping Height
    20 Inches
    Shipping Width
    30 Inches
    Shipping Length
    30 Inches
    Shipping Weight
    91 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
