Fantech Inline Rectangle 24 in x 14 in Centrifugal Fan 2074 CFM 230V

Model: FRD24-14-230 Item Number: 31470
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fantech FRD24-14-230
PREVIOUS
NEXT
Fantech FRD24-14-230
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    86 Pounds Learn More
    86 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    650737440039
View More
Features
View More

Features

Overview for Fantech FRD24-14-230

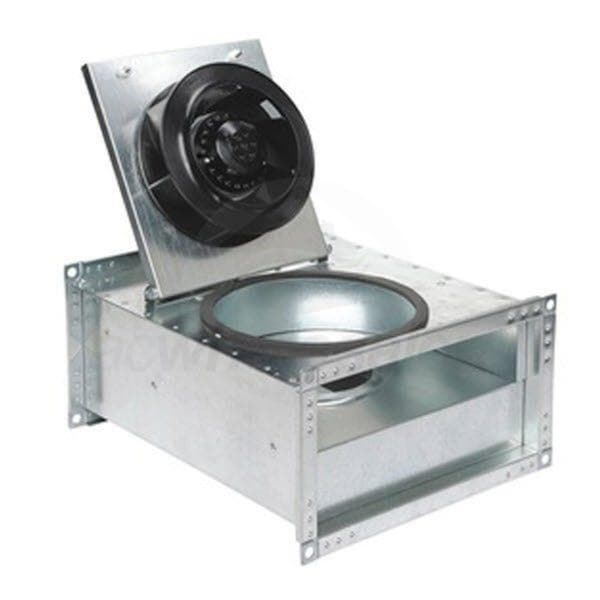

The Fantech FRD 24-14-230 Rectangular Inline Duct Fan is a 2,074 CFM centrifugal supply and exhaust fan designed for large ventilation in areas of limited space. It is constructed for 24 x 14 inch venting. FRD Series Duct Fans can install directly within equally sized rectangular ductwork without the need for transitions. The motor is mounted on a hinged door for easy access. This unit is wired for 230 volts.
  • Duct-to-Duct Installation
  • A compact rectangular design allows for installation directly within rectangular ductwork without the need for large elbows or transitions.
  • Easy Maintenance
  • All serviceable components are easily accessible in under 5 minutes.
  • Backward Curved Impeller
  • Backward curved impeller blades allow particles to easily pass through the fan blades, preventing a build-up.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • Permanently Lubricated Motor
  • Permanently lubricated sealed ball bearings keep your fan working maintenance-free.
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737440039
    General Information
    Type
    Duct Fan
    Product Line
    FRD
    Product Category
    Fans
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    2074 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    20.6 Sones
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    3.6 Amps
    Dimensions
    Duct Connection
    24 Inches
    Product Height
    13 3/4 Inches
    Product Width
    23 5/8 Inches
    Product Length
    28 1/2 Inches
    Product Weight
    86 Pounds
    Shipping Height
    20 Inches
    Shipping Width
    28 Inches
    Shipping Length
    32 Inches
    Shipping Weight
    96 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
