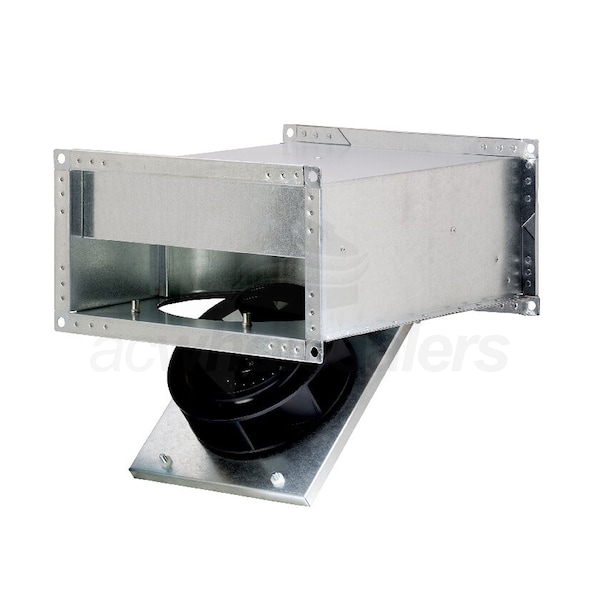

Fantech Rect. Inline Mixed Flow Centri. Fan 16" x 8" Duct (658 CFM)

Model: FRD16-8XL Item Number: 31200
Ask a Question
Fantech FRD16-8XL
PREVIOUS
NEXT
Fantech FRD16-8XL
Enlarge Image
Our Price: $365.00

Ships in 7-14 Business Days
Fantech Rect. Inline Mixed Flow Centri. Fan 16
Fantech Rect. Inline Mixed Flow Centri. Fan 16" x 8" Duct (658 CFM) Model: FRD16-8XL Item Number: 31200
$365.00
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Low Price Guarantee Learn More
Low Price Guarantee
Shop with Confidence knowing you have the Right system at the Right Price and shipped Right Away.

We strive to give our customers the best price and service possible. If you happen to find a better price on your product(s) up to 30 days after your purchase let us know and we will match the price of any online competitor.

Simply call our sales or customer service department at 866-631-6389 and one of our representatives will be happy to price match the product(s) for you.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Duct Fan
    Product Line
    FRD
    Mount Type
    Inline
View More
Power Supply
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech FRD16-8XL

Overview for Fantech FRD16-8XL

Limited space? No problem. Fantech's FRD Series centrifugal type exhaust / supply fans are specifically designed for large ventilation needs where space is at a premium, such as hospitals, schools, or office buildings. System balancing is easy. A simple speed adjustment equalizes all vents to compensate for hot or cold spots.
  • UL Listed
  • True backward curved impeller
  • Three-year warranty
  • Terminal box with prewired electrical strip
  • Suitable for airstream temperatures of up to 140 Degrees F
  • Rectangular ductwork connections
  • Permanently lubricated sealed ball bearings

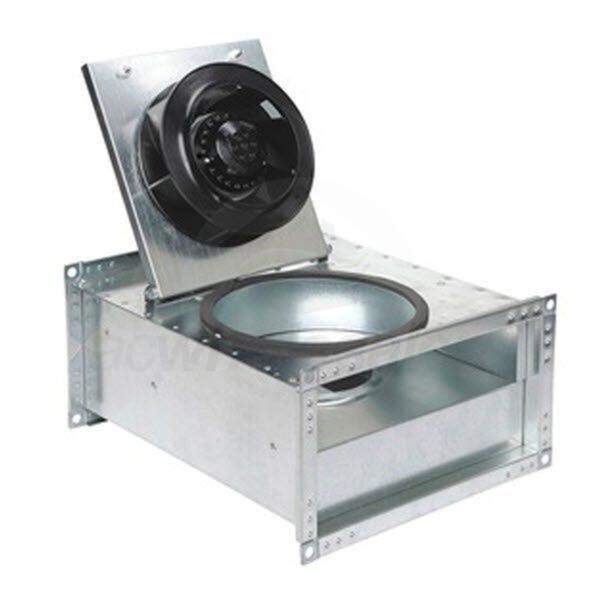

  • Hinged door for service access
  • Galvanized steel housing
  • External rotor motor for excellent heat dissipation even at low RPM, and built-in thermal overload protection with automatic reset.
  • Excellent heat dissipation, ensuring long motor life
  • Airflow up to 2318 CFM
  • 100% speed controllable through voltage reduction allowing for on-demand ventilation or precision balancing of systems
  • Our SKU number(s): Fantech FRD16-8XL
  • The manufacturer model number(s): Fantech FRD16-8XL
  • Specifications
    View More

    Specifications

    General Information
    Type
    Duct Fan
    Product Line
    FRD
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    UPC
    094714298990
    Performance
    Maximum Air Flow
    658 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    13.1 Sones
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    2.32 Amps
    Dimensions
    Duct Connection
    16 Inches
    Product Height
    7 3/4 Inches
    Product Width
    15 3/4 Inches
    Product Length
    19 3/4 Inches
    Shipping Width
    21 Inches
    Shipping Height
    13 Inches
    Shipping Length
    21 Inches
    Shipping Weight
    30 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
