Fantech FR - 408 CFM - Inline Duct Fan - 8" Duct - 115V

Model: FR200 Item Number: 31178
Fantech FR200
PREVIOUS
NEXT
Fantech FR200
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
View Fantech FG - 461 CFM - Inline Duct Fan - 8
Model:
FG8
$266.00
$186.20
Product Discontinued
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Line
    FR
    Housing Material
    Plastic
    UPC
    650737012007
Features
View More

Features

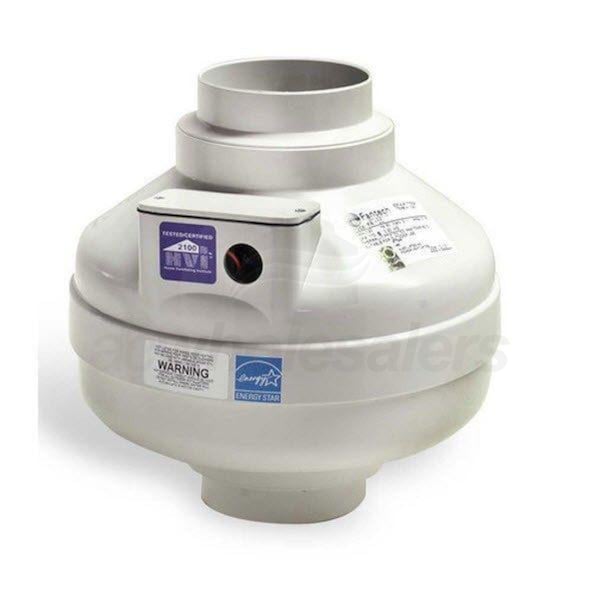

Overview for Fantech FR200

Featuring a plastic housing constructed of UL-recognized, UV protected thermoplastic resin, the Fantech FR 200 Centrifugal Inline Duct Fan is weather-resistant and can be mounted in outdoor or wet locations and can be used for a variety of exhaust applications. Inline fans are installed directly in your duct work to provide powerful ventilation. This 115 volt model can produce a maximum airflow of up to 408 CFM. The FR 200 is constructed with an 8" round duct. It is constructed with an external rotor motor. Fans come prewired and include a mounting bracket easy installation. FR Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.

Product Features

Plastic Housing
Plastic housings are UV protected and allow the fan to be mounted in wet and outdoor locations.

Prewired Fan
For your convenience, this fan is prewired and ready to install out of the box.

100% Speed Controllable
On-demand ventilation and precision balancing of systems is controllable through voltage reduction.

External Rotor Motor
An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.

Product Includes
  • (1) 408 CFM Inline Fan
  • (1) Mounting Bracket
Specifications
View More

Specifications

General Information
Product Line
FR
Housing Material
Plastic
UPC
650737012007
Performance
Maximum Air Flow
408 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
1.11 Amps
Dimensions
Duct Connection
8 Inches
Product Diameter
13 1/4 Inches
Shipping Width
14 Inches
Shipping Height
15 Inches
Shipping Length
14 Inches
Shipping Weight
10 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Energy Star Listed
Yes
Warranty Information
Parts Warranty Show ACW Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
