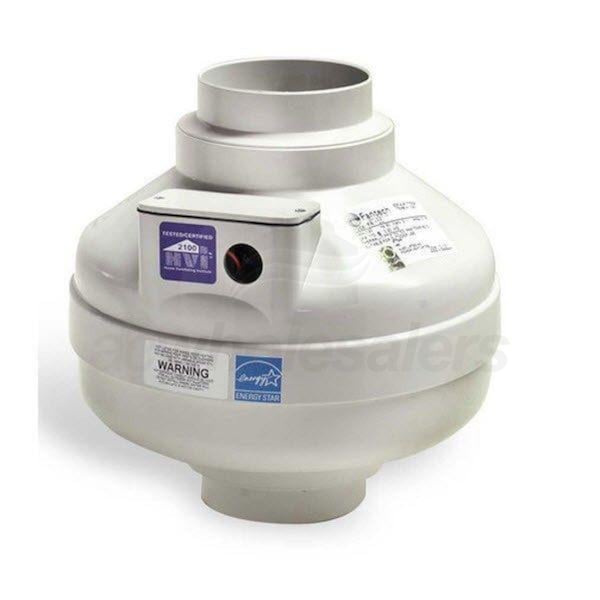

Fantech Inline Centrifugal 5 inch Duct Fan Molded Housing 148 CFM

Model: FR125 Item Number: 31175
Fantech FR125
PREVIOUS
NEXT
Fantech FR125
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Type
    Duct Fan
    Product Line
    FR
    Mount Type
    Inline
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech FR125

Overview for Fantech FR125

Fantech's versatile FR Series fans feature a plastic housing constructed of UL-recognized, UV-protected thermoplastic resin. This tough protective shell allows the fan to be mounted in outdoor and wet locations.* Ideal for multiple point exhaust, dual bathroom exhaust, or new room additions. Fantech's FR Series fans are caulked at the motor screws, the wiring cables and along the seams of the fan to prevent moisture from entering the housing. Fantech's FR Series fans have long been the choice of residential builders and remodelers but now can be used for commercial projects with our recent UL commercial applications rating.
  • Plastic Housing
  • Plastic housings are UV protected and allow the fan to be mounted in wet and outdoor locations.
  • Prewired Fan
  • For your convenience, this fan is prewired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Product Includes
  • (1) 148 CFM Inline Fan
  • (1) Mounting Bracket
  • Specifications
    View More

    Specifications

    General Information
    Type
    Duct Fan
    Product Line
    FR
    Mount Type
    Inline
    Housing Material
    Plastic
    UPC
    650737011253
    Performance
    Maximum Air Flow
    148 CFM
    Electrical Data
    Voltage
    115 Volts
    Phase
    1
    Frequency
    60 Hz
    Current Draw
    0.18 Amps
    Dimensions
    Duct Connection
    5 Inches
    Product Diameter
    9 1/2 Inches
    Shipping Width
    11 Inches
    Shipping Height
    11 Inches
    Shipping Length
    11 Inches
    Shipping Weight
    6 Pounds
    Certifications
    UL Listed
    Yes
    CSA Listed
    Yes
    Energy Star Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
