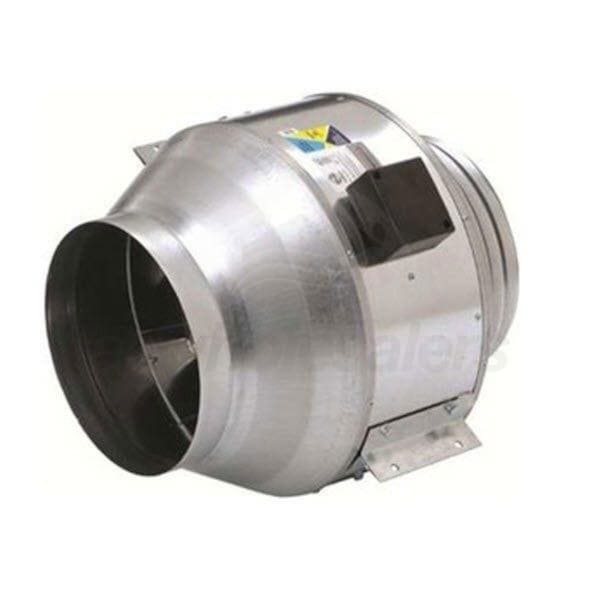

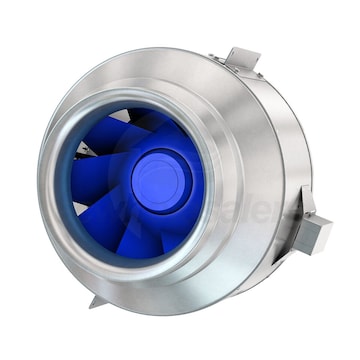

Fantech FKD - 6,236 CFM - Inline Duct Fan - 18" Duct - 208/460V

Model: FKD18XL Item Number: 31192
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fantech FKD18XL
PREVIOUS
NEXT
Fantech FKD18XL
Enlarge Image
Our Price: $2,512.00
synchrony card icon
$44 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Click for important monthly payment and offer information.
Backordered
Shipping to60601
Fantech FKD - 6,236 CFM - Inline Duct Fan - 18
Fantech FKD - 6,236 CFM - Inline Duct Fan - 18" Duct - 208/460V Model: FKD18XL Item Number: 31192
$2,512.00
Backordered
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
Truck Icon
Free Lift Gate Learn More
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside. To learn more about Lift Gate Service, read our shipping policy.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    108 Pounds Learn More
    108 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    650737091859
View More
Max Air Flow (CFM)
Select Attribute
Power Supply
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech FKD18XL

Featuring a galvanized steel housing, the Fantech FKD 18XL Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 208/460 volt model can produce a maximum airflow of up to 6,236 CFM. The FKD 18XL is constructed with a 18" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
  • Mixed Flow Centrifugal Fan
  • Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
  • Prewired Fan
  • For your convenience, this fan is prewired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737091859
    General Information
    Type
    Duct Fan
    Product Line
    FKD
    Product Category
    Fans
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    6236 CFM
    Maximum Sound Level Learn More
    Maximum Sound Level
    The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
    32 Sones
    Electrical Data
    Phase
    3
    Frequency
    60 Hz
    Current Draw
    3.75 Amps
    Dimensions
    Duct Connection
    18 Inches
    Product Diameter
    22 1/4 Inches
    Product Height
    29 1/4 Inches
    Product Weight
    108 Pounds
    Shipping Height
    30 Inches
    Shipping Width
    30 Inches
    Shipping Length
    30 Inches
    Shipping Weight
    108 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
