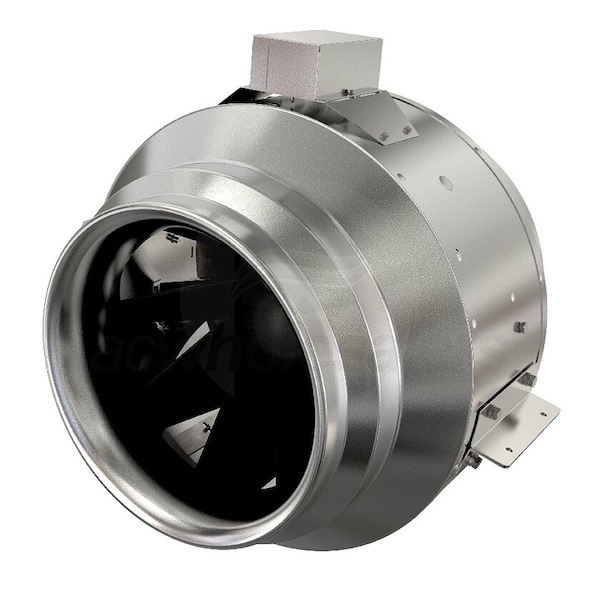

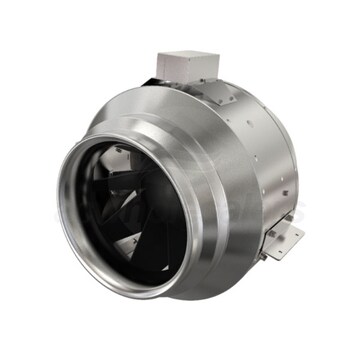

Fantech FKD 4,200 CFM Inline Duct Fan 16" Duct 230V

Model: FKD16EC Item Number: 62611
Fantech FKD16EC
PREVIOUS
NEXT
Fantech FKD16EC
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Product Category
    Fans
    UPC
    650737449551
Features
View More

Features

Overview for Fantech FKD16EC

Featuring a galvanized steel housing, the Fantech FKD16-EC Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 230 volt model can produce a maximum airflow of up to 4,200 CFM. The FKD16-EC is constructed with a 16" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
  • Mixed Flow Centrifugal Fan
  • Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
  • Prewired Fan
  • For your convenience, this fan is prewired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction. The EC fans are controlled with a 0-10VDc signal.
  • Efficient EC Motor
  • This product is equipped with a highly efficient EC motor which uses significantly less power.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
  • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737449551
    General Information
    Type
    Duct Fan
    Product Line
    FKD
    Product Category
    Fans
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    4200 CFM
    Electrical Data
    Voltage
    230 Volts
    Power Consumption
    1082 Watts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    16 Inches
    Product Height
    19 3/4 Inches
    Product Width
    18 3/4 Inches
    Shipping Height
    25 Inches
    Shipping Width
    22 Inches
    Shipping Depth
    21 Inches
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
