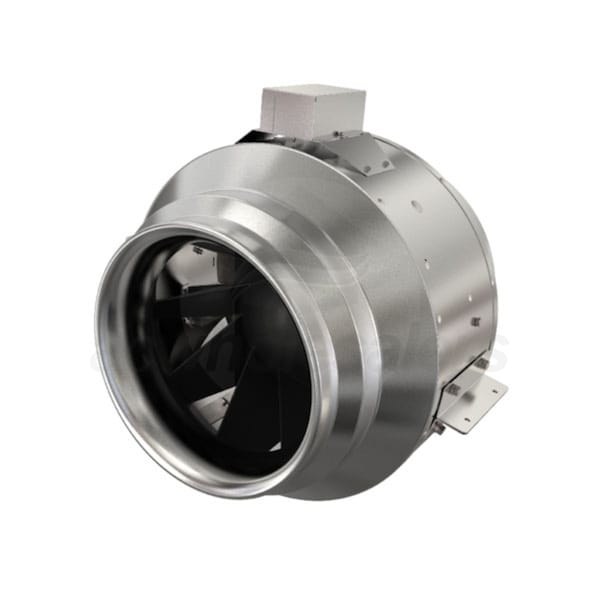

Fantech FKD - 2,443 CFM - Inline Duct Fan - 14" Duct - 115V

Model: FKD14XLEC Item Number: 62610
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fantech FKD14XLEC
PREVIOUS
NEXT
Fantech FKD14XLEC
Enlarge Image
Product Discontinued
Sorry, this product is no longer available.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    41 Pounds Learn More
    41 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Product Category
    Fans
    UPC
    650737449377
View More
Duct Diameter
Select Attribute
Power Supply
Select Attribute
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech FKD14XLEC

Featuring a galvanized steel housing, the Fantech FKD14XLEC Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 115 volt model can produce a maximum airflow of up to 2,443 CFM. The FKD14XLEC is constructed with a 14" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
  • Mixed Flow Centrifugal Fan
  • Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
  • Prewired Fan
  • For your convenience, this fan is pre-wired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction. The EC fans are controlled with a 0-10VDc signal.
  • Efficient EC Motor
  • The high Efficiency EC motor allows for less power consumption and reduced costs all around.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
    • Specifications
    View More

    Specifications

    Overview
    Product Category
    Fans
    UPC
    650737449377
    General Information
    Type
    Duct Fan
    Product Line
    FKD
    Product Category
    Fans
    Mount Type
    Inline
    Housing Material
    Galvanized Steel
    Performance
    Maximum Air Flow
    2443 CFM
    Electrical Data
    Voltage
    115 Volts
    Power Consumption
    406 Watts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    14 Inches
    Product Height
    19 3/4 Inches
    Product Width
    20 1/4 Inches
    Product Weight
    41 Pounds
    Shipping Height
    25 Inches
    Shipping Width
    22 Inches
    Shipping Depth
    21 Inches
    Shipping Weight
    51 Pounds
    Certifications
    UL Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    3 Years
