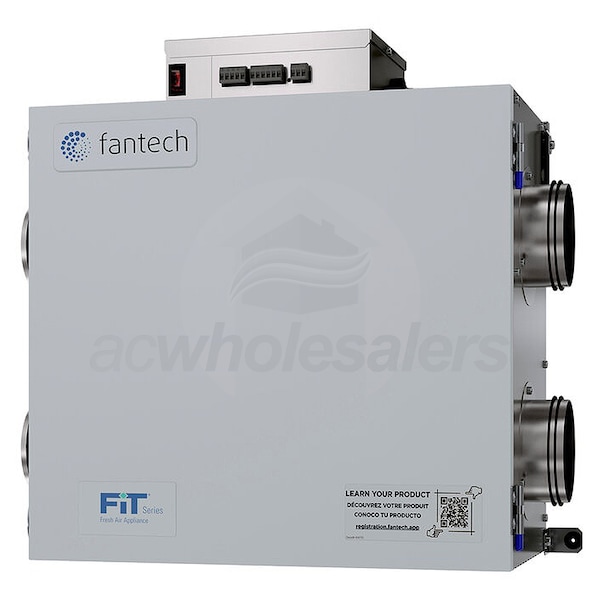

Fantech - 70 CFM - Energy Recovery Ventilator (ERV)

Model: FIT70E Item Number: 124756
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Fantech FIT70E
PREVIOUS
NEXT
Fantech FIT70E
Enlarge Image
Our Price: $770.00
synchrony card icon
$129 / Month
Suggested monthly payments with 6 month financing.
Click for important monthly payment and offer information.
Only 3 In-Stock
Ships Wednesday, April 24th
Shipping to60601
Fantech - 70 CFM - Energy Recovery Ventilator (ERV)
Fantech - 70 CFM - Energy Recovery Ventilator (ERV) Model: FIT70E Item Number: 124756
$770.00
Only 3 In-Stock
-
+
Accessories
Features
Specifications
Reviews
Product Q&A
Manuals
Shipping Crate Icon
Free Shipping Learn More
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges map apply, see our full shipping policy for more details.
0.0 out of 5 stars0.0 out of 5 stars
(0)
Write A Review
Ask A Question
Specification Highlights
    Condition
    New Learn More
    New
    This product is new and has never been used. It's in its original packaging, which has not been opened.
    Weight
    29 Pounds Learn More
    29 Pounds
    Total weight of the product and any included accessory/components. This total is not the shipping weight, as it does not include packing material, which may increase the overall shipping weight of this product.
    Type
    ERV
    Product Category
    Energy Recovery Ventilators (ERVs)
View More
Recommended Accessories
View More
Required Accessories Add All Required
Installation Accessories
Features
View More

Features

Overview for Fantech FIT70E

The Fantech FIT70E Energy Recovery Ventilator (ERV) has a slim profile, 4" side port connection, energy recovery core, supply fan modulation for frost prevention, and more. This 70-cfm appliance is ideally suited for condominiums and apartments. The FIT70E brings a continuous supply of fresh air into the premises while exhausting an equal amount of contaminated air out. The energy recovery core transfers both heat and moisture from the outgoing exhaust air to the incoming fresh air reducing the energy required to condition it. In summertime, the appliance cools and removes humidity from the fresh air and in wintertime, it heats it while retaining humidity to keep the living area comfortable year-round.
  • Fans
  • Two factory-balanced fans with backward curved blades. Motors have permanently lubricated sealed ball-bearings to guarantee long life and maintenance-free operation.
  • Energy Recovery Core
  • AHRI certified core made from water vapor transport durable polymer membrane that is highly permeable to humidity.
  • Frost Prevention
  • A preset frost prevention sequence is activated at an outdoor air temperature of 14F degrees (-10C ) and lower.
  • Serviceability
  • Core conveniently slides out with only 8" clearance and filters, fans and electrical panel can be accessed easily from the access panel.
  • Duct Connections
  • 4" round metal duct connections with rubberized seal.
  • Product Includes
  • (1) FIT70E Energy Recovery Ventilator (ERV).
  • (1) Ceiling bracket.
  • (2) Angle brackets.
    • Specifications
    View More

    Specifications

    General Information
    Type
    ERV
    Product Category
    Energy Recovery Ventilators (ERVs)
    Ports Quantity
    4
    Port Location
    Side
    Performance
    Maximum Air Flow
    70 CFM
    Apparent Sensible Effectiveness
    72 %
    Minimum Air Flow
    51 CFM
    Total Recovery Efficiency
    40 %
    Electrical Data
    Voltage
    120 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Duct Connection
    4 Inches
    Product Height
    17 1/4 Inches
    Product Width
    18 1/2 Inches
    Product Depth
    10 3/8 Inches
    Product Weight
    29 Pounds
    Shipping Width
    13 Inches
    Shipping Height
    21 Inches
    Shipping Length
    11 Inches
    Shipping Weight
    29 Pounds
    Certifications
    CSA Listed
    Yes
    Warranty Information
    Parts Warranty Show ACW Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Motor Warranty
    7 Years
